DISCONTINUED, We recommend DT-311D as a replacement
Range: 40-12,500 RPM/FPM
Type: Xenon

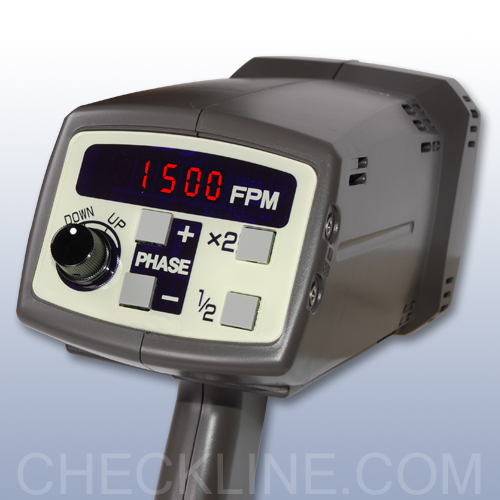

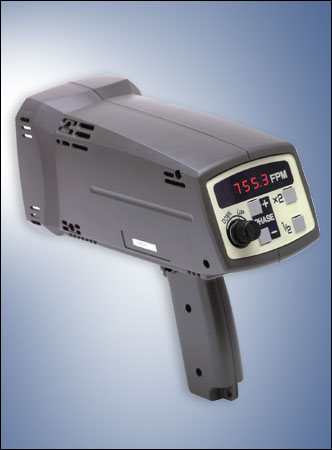

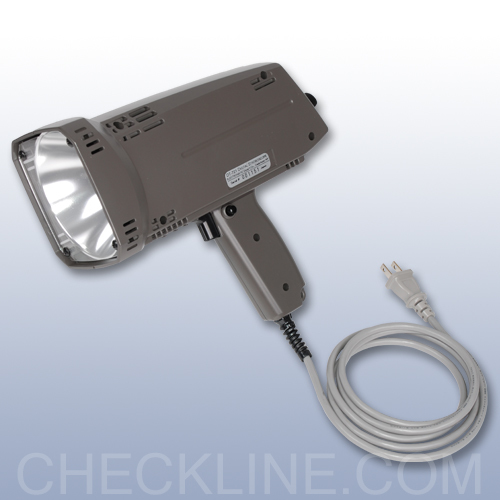

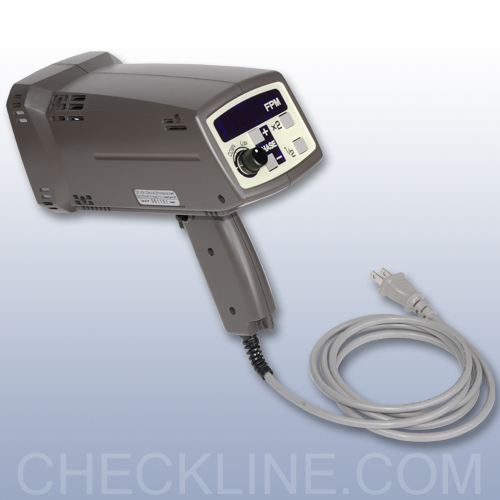

The Check-Line DT-721 Digital Stroboscope is a highly stable, industrial-quality instrument for non-contact RPM measurement as well as for inspection and observation of moving parts by freezing or slowing down the action.
A Kit option is offered which also includes a carrying case and spare flash tube at minimal additional cost.
- Highly accurate speed control with drift-free operation
- Accepts input from sensor for external flash triggering
- Easy-to-use controls with bright LED display
- Phase shift adjustment permits movement of objects to desired position for convenient observation
- Instant double (2x) and half-rate (÷2) flash selection
- Extremely lightweight and rugged
| Flash Range | 40.0 - 12,500 FPM |
| Accuracy | ± 0.02% of reading |
| Resolution | (0.1) 40.0 - 4,999.9 (0.2) 5,000.0 - 7,999.8 (0.5) 8,000.0 - 9,999.5 (1.0) 10,000.0 - 12,500.0 |
| Display | 5-Digit LED, 8 mm high |
| Flash Tube | Xenon, 10 watt |
| Tube Life | 100 million flashes |
| Flash Duration | 10 - 15 µs |
| Signal Output | NPN Open Collector, 24 VDC max. |
| Phase Shift | 0 - 359° (Internal Mode) |
| Operating Temperature | 32 to 105° F (0 to 40° C) |
| Weight | 1.50 lbs. (680 g) |
| Warranty | 1 year |
A) 12 - 24 V DC through a 3-wire NPN sensor (requires external power supply)
B) 12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)
B) Switch or Relay Contact
B) 12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)
B) Switch or Relay Contact
asfasf

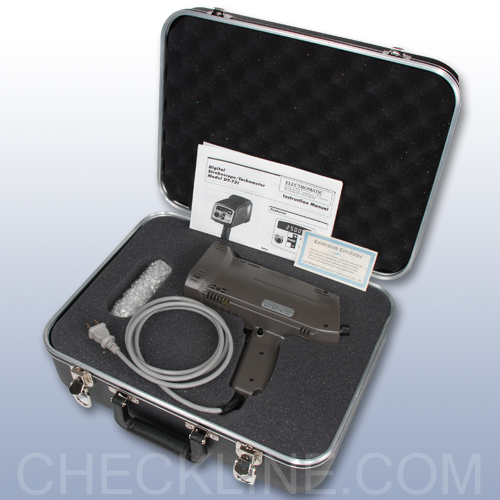

Optional Complete Kit is offered which also includes a carrying case and spare flash tube at minimal additional cost.
| Item | Description | Price | ||
|---|---|---|---|---|
115V AC Stroboscope DISCONTINUED, We recommend DT-311D as a replacement | $ | |||
115V AC Stroboscope Kit, DISCONTINUED, We recommend DT-311D as a replacement | $ | |||
230V AC Stroboscope, DISCONTINUED, We recommend DT-311D-2 as a replacement | $ | |||
230V AC Stroboscope Kit, DISCONTINUED, We recommend DT-311D as a replacement | $ | |||
| Accessories | ||||
Spare Flashtube for DT-725 and DT-721 | $55.00 | |||
