Flash Range: 60-12,000 RPM/FPM

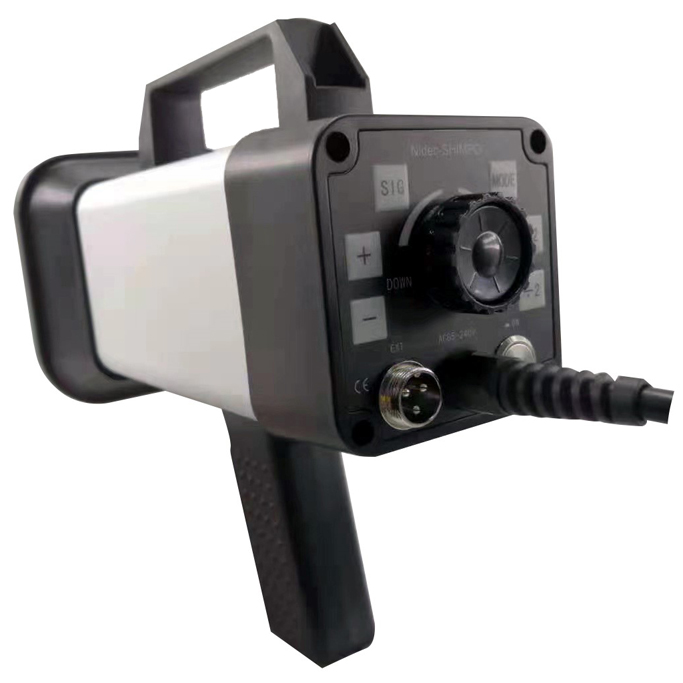

The DT-311D is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement. Constructed with a rugged metal enclosure, the DT-311Ds withstand harsh, industrial usage. The included top & bottom handles aid in portability and usage flexibility. Built-in speed adjustment settings allow the flash rate to be easily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. External trigger mode with connected remote sensor input enables the flash rate to be synchronized to the speed of the process. These features make the DT-311D universally-powered stroboscope ideal for quality inspection and preventive maintenance of automated motion equipment.
The DT-311D is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement. Constructed with a rugged metal enclosure, the DT-311Ds withstand harsh, industrial usage. The included top & bottom handles aid in portability and usage flexibility. Built-in speed adjustment settings allow the flash rate to be easily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. External trigger mode with connected remote sensor input enables the flash rate to be synchronized to the speed of the process. These features make the DT-311D universally-powered stroboscope ideal for quality inspection and preventive maintenance of automated motion equipment.

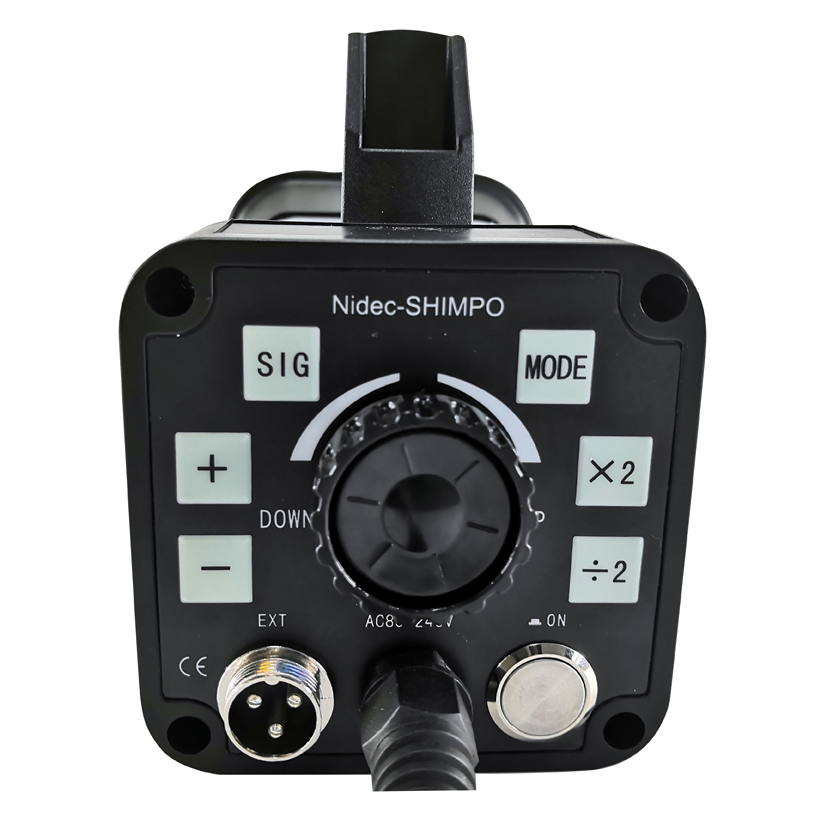

- Heavy-duty construction enclosure provides exceptional durability
- Highly focused reflector eliminates "blind" viewing areas
- External trigger input allows unit to be automatically synchronized with equipment
- Universal power capability from 85-240 VAC allows one model to handle a multitude of local power requirements
- Easy tri-pod or permanent mounting with integral mounting thread
| Flash Range | 60-12,000 fpm (flashes per minute) |
| Accuracy | ±0.01% F.S. |

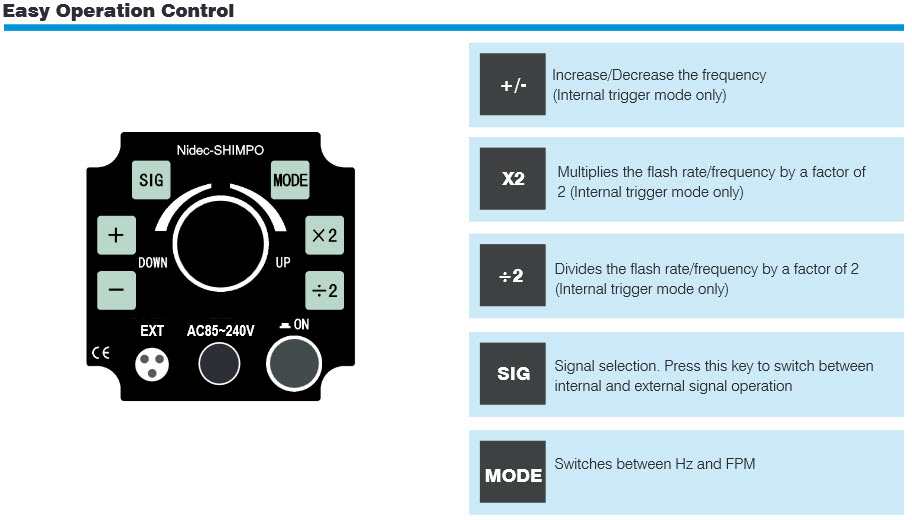

| Resolution | 0.1 from 60-6,000; 1 from 6,001-12,000 |
| Display | 5 digits, 10 mm high, red LED |
| Flashtube Power/Life | Xenon ≤ 45W / 50,000,000 |
| Flash Duration | 10-30 μs automatically adjusts with flash rate |
| External Trigger Input | 5 V dc ~ 12 V dc pulse signal input (high level trigger) from sensor |
| Sensor Power Supply | 12 V DC up to 50 mA |
| Lux Rating | 8” (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5” (400 mm) irradiation diameter. 20” (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5” (600 mm) irradiation diameter |
| Power Requirements | 85-240 VAC 60/50 Hz (Universal) |
| Operating Temperature | 32-104 °F (0-40 °C) |

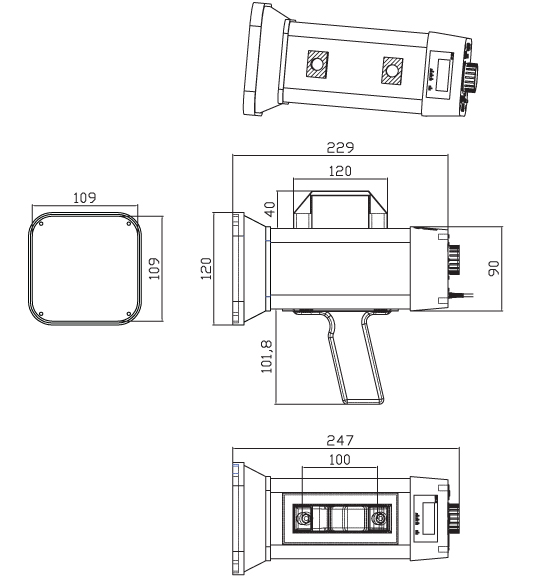

| Dimensions | 8.3 x 4.7 x 4.7” (210 x 120 x 120 mm) |
| Unit Weight | 2.3 lbs. (1.0 kg) |
| Warranty | 1 Year |
| Certification | CE, RoHS |
| Included Accessories | Top & bottom handles, 9.8’(3 m) power cable, 3 pin female M16 threaded connector |
| Item | Description | Price | ||
|---|---|---|---|---|
Heavy Duty Xenon Stroboscope - Universal Power (85-240 VAC) with USA Plug | $525.00 | |||
Heavy Duty Xenon Stroboscope Kit, Universal Power (85-240 VAC) with USA Plug, Spare Flashtube, & Carrying Case | $700.00 | |||
Heavy Duty Xenon Stroboscope - Universal Power (85-240 VAC) with Euro Plug | $525.00 | |||
Heavy Duty Xenon Stroboscope Kit, Universal Power (85-240 VAC) with Euro Plug, Spare Flashtube, & Carrying Case | $700.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
Flashtube for DT-311D Stroboscope | $47.00 | |||
3 Pin External Input Cable for DT-311D Stroboscope | $70.00 | |||
Articulating Swing Arm for Stroboscopes | $320.00 | |||
Telescoping tripod | $60.00 | |||
