Measuring Range:
Wood Moisture: 7% to 150%
Water Content: 10% to 60%
The wood moisture defines the amount of water contained in the wood as a percentage of its dry weight.
7 to 150 % (dependent on the wood type)
Wood Moisture: 7% to 150%
Water Content: 10% to 60%

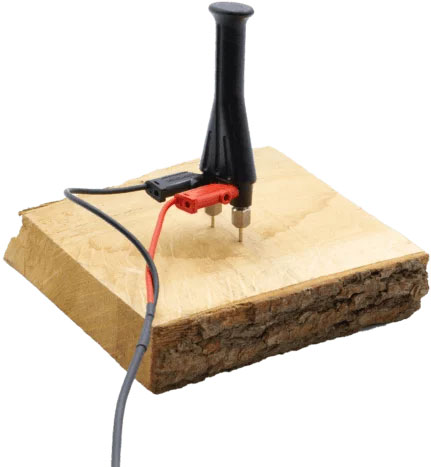

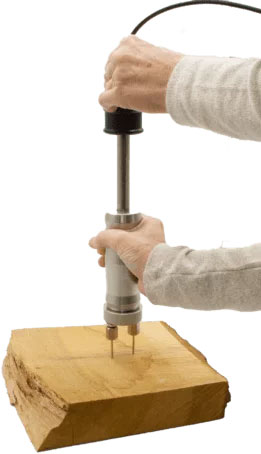

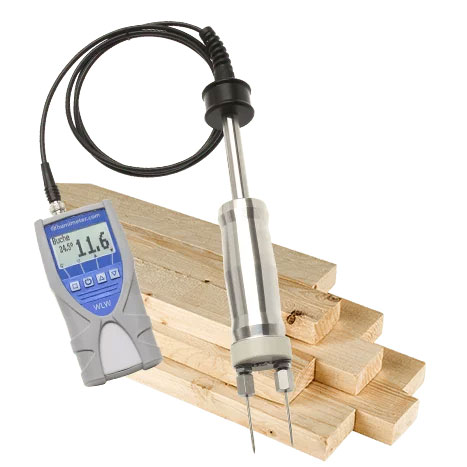

Lumber, Round timber, and split logs moisture meter with Hammer / Ram Electrode.
Wood MoistureThe wood moisture defines the amount of water contained in the wood as a percentage of its dry weight.
7 to 150 % (dependent on the wood type)
Water Content
The water content defines the amount of water contained in the wood as a percentage of its total weight.
10 to 60 % (dependent on the wood type)
Because of its dual functionality, the WLW is an ideal instrument for professional applications in sawmills, joineries, timber construction companies, as well as for operators of biomass heating systems, wood suppliers, and buyers of round and split logs.
Integrated calibration curves for various wood types are included, allows the WLW to display measurements directly in "Moisture Content" or "Water Content", eliminating the need to refer to separate "look-up tables. This ensures the highest possible accuracy with minimum effort and reduces the chances of errors. Separate calibration curves are supplied for Pine, Larch, Fir, Willow, Beech, Oak, Alder, Ash, and Spruce.
- Backlit LCD Display
- Protective Rubber Sleeve over Gauge Body
- Measure in either Moisture Content (dry basis) or Water Content (wet basis)
- Resolution 0.1% of Moisture Content or Water Content
- Automatic temperature compensation
- Measurement within seconds without prior treatment of samples
- Automatic averaging & hold function
- Allows quality checks and documentation on site
- Built-in datalogger for 10,000 value
- Optional USB Output offered on model WLW-USB, includes USB Cable & LogMemorizer PC Software
| Wood Type | Sub Categories | Maximum Range (Wood Moisture) | Maximum Range (Water Content) |
|---|---|---|---|
| Beech | Rubber, Eucalyptus | ||
| Oak | Mahogany, Wenge | ||
| Alder | Acacia, Alstonia, Birch, European chestnut, Horse chestnut, Cherry Tree, Walnut, Okan | ||
| Ash | Keruing | ||
| Spruce | |||
| Pine | Balsa, Yew Tree, Stone Pine | ||
| Larch | Maple, Douglas Fir, Hemlock, Poplar, Elm | ||
| Fir | Ceiba, Lime | ||
| Willow | Pear, Hickory, Olive wood, Ramin, Teak | ||
| Test block | ! Only for testing the moisture meter ! |

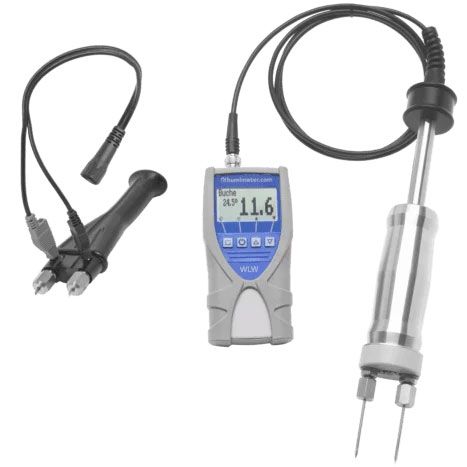

The WLW kit includes the Gauge Body, plastic carrying case, ram-electrode, 40 mm Pins (10x), 60 mm Pins (10x) & pins & 4x AA batteries.
The WLW-USB includes all of the above items as well as USB data transfer cable and LogMemorizer PC Software.
The WLW-USB includes all of the above items as well as USB data transfer cable and LogMemorizer PC Software.
| Measuring range | 7 to 150% Wood Moisture 10 to 60% Water Content (depending on the material type) |
| Resolution | 0.1% of of Moisture Content or Water Content |
| Temperature Compensation | Automatic |
| Temperature Units | can be set to °C or °F |
| Built-in Memory | Up to 10,000 measuring values |
| Output Type | USB (model WLW-USB only) |
| Operating temperature | 32 to 122°F (0 to +50°C) |
| Battery Type | 4x 1.5 Volt AA Alkaline batteries |
| Menu languages | English, German, French, Italian, Spanish, Portuguese, Czech, Polish, Russian, International |
| LCD Display | 28 x 64 illuminated matrix display |
| Dimensions / Weight | Gauge Body 157 x 75 x 30 mm (6.2" x 3.0" x 1.2") Ram Electrode 360 x 45 x 45 mm (14.2" x 1.8" x 1.8") |
| Weight | Gauge Body: 256 grams (0.6 Lbs) Ram Electrode: 1.5 kg (3.3 Lbs) |
| IP Rating | IP 40 |
| Item | Description | Price | ||
|---|---|---|---|---|
Wood Moisture Meter with Hammer / Ram Electrode | $1,195.00 | |||
Wood Moisture Meter with Hammer / Ram Electrode & USB Output | $1,595.00 | |||
| Accessories | ||||
40 mm pins for Hammer / Ram Electrode (20 pieces) | $35.00 | |||
BLW-60 | 60 mm pins for Hammer / Ram Electrode (20 pieces) | $35.00 | ||
Test block for WLW, BLL, BL2, BLW Moisture Meters | $195.00 | |||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
