Replaced by BMC
Measuring Range: 5 - 60% MC
2 Models
BM1-KIT - Biomass Moisture Meter with Memory - NO OUTPUT
BM2-KIT - Biomass Moisture Meter with Memory - USB DATA OUTPUT

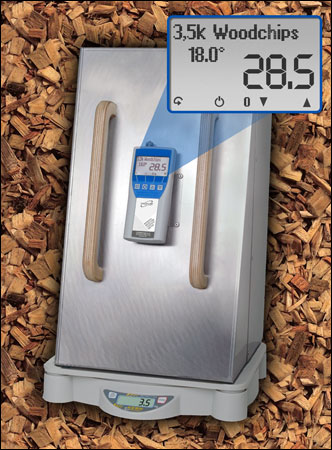

Humimeter Model BM for testing the moisture content of most types of biomass materials.
Highly accurate moisture meter with automatic bulk density compensation for quick determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust.

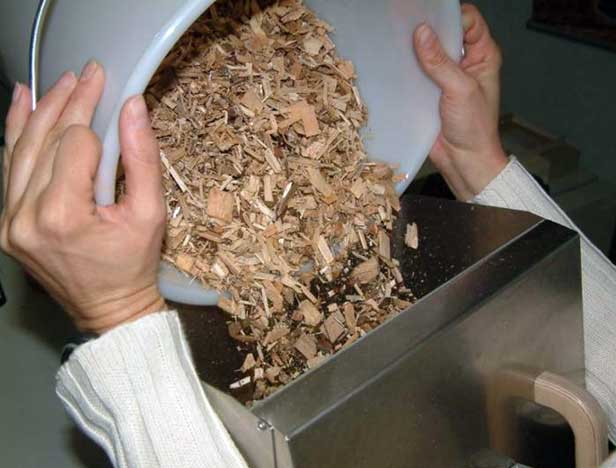

The entire measurement procedure is extremely easy & only takes seconds. Simply turn on the gauge, collect the desired Biomass test sample and pour into storage bin and view the water content (%-moisture) on the large backlit LCD display.

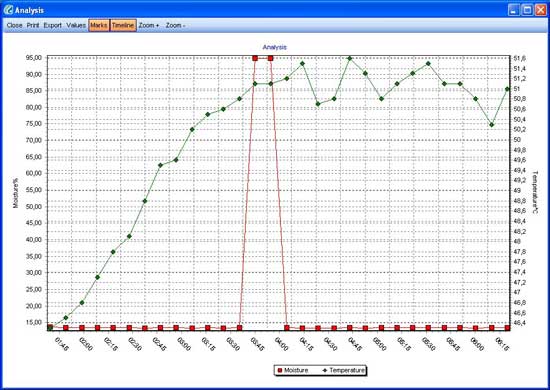

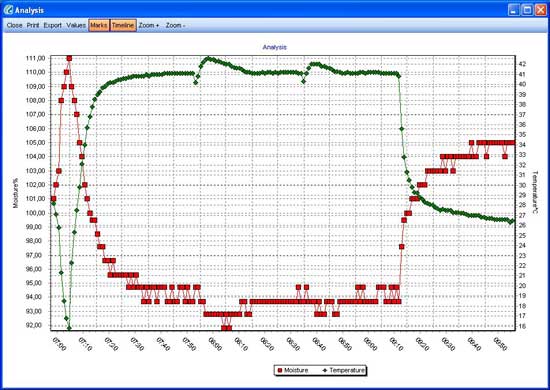

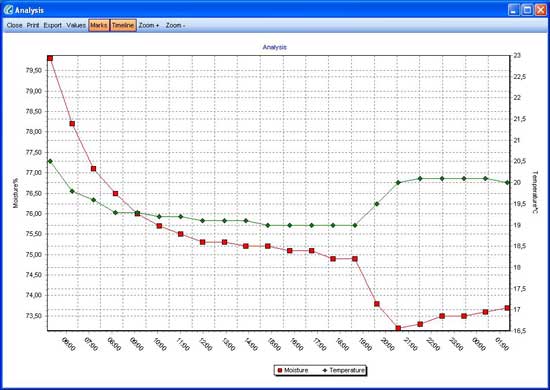

The BM1 and BM2 models both include a built-in datalogger for storage of 10,000 values. The BM2 model ads USB data output for downloading stored data to a PC with included software.
- Automatic self-calibration re-assures user of reliable measurement results
- Take measurement in seconds without prior treatment of samples
- Bulk density compensation by using a precision electronic balance (scale)

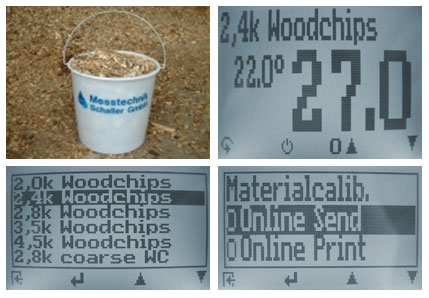

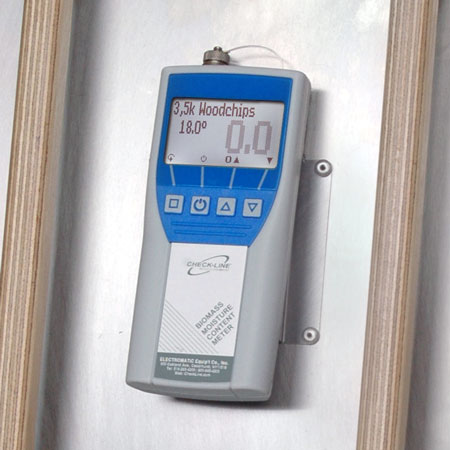

- Large Backlit LCD Display with over-sized numbers makes for easy viewing
- Supplied with 3-1/2 Gallon (13 liter) plastic bucket for collection of testing sample

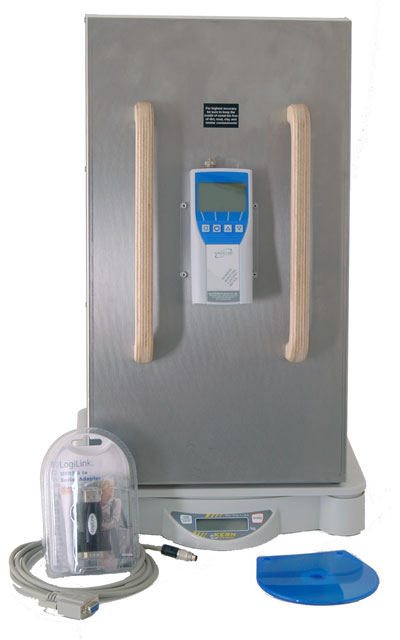

- Rugged stainless steel Storage Bin is integrated with gauge providing an all-in-one measuring system
- Gauge menus in English, German, French, Italian, Spanish and Russian
- BM2 includes datalogger for data transfer to PC or Printer documenting moisture measurements, date, batch & temperature
- Includes Calibration certificate for Precision Scale
- Includes built-in temp probe for automatic temperature compensation for highest accuracy - under all conditions
- 2 Year Warranty
- Optional Wireless Kit offered for BM2 for cable-free transfer of data. (Details below)
| Name Of Calibration Curve | Material Under Test | Filing Quantity | Measuring Range Limit | Model |
|---|---|---|---|---|
| 2.0k Woodchips | Woodchips according to P16 | 2.00kg | 5 - 30% | BM1/BM2 |
| 2.4k Woodchips | Woodchips according to P16 | 2.40kg | 10 - 35% | BM1/BM2 |
| 2.8k Woodchips | Woodchips according to P16 | 2.80kg | 10 - 40% | BM1/BM2 |
| 3.5k Woodchips | Woodchips according to P16 | 3.50kg | 20 - 50% | BM1/BM2 |
| 4.5k Woodchips | Woodchips according to P16 | 4.50kg | 35 - 60% | BM1/BM2 |
| 2.8k Coarse WC | Woodchips according to P45 | 2.80kg | 10 - 50% | BM1/BM2 |
| 3.5k Coarse WC | Woodchips according to P45 | 3.50kg | 20 - 50% | BM1/BM2 |
| 2.8k Industrial WC | Industrial woodchips | 2.80kg | 10 - 50% | BM1/BM2 |
| 3.5k Industrial WC | Industrial woodchips | 3.50kg | 20 - 50% | BM1/BM2 |
| 2.4k P100 chips | Very coarse woodchips | 2.40kg | 10 - 30% | BM1/BM2 |
| 2.8k P100 chips | Very coarse woodchips | 2.80kg | 25 - 45% | BM1/BM2 |
| 3.5k P100 chips | Very coarse woodchips | 3.50kg | 35 - 55% | BM1/BM2 |
| 2.4k Barks | Barks | 2.40kg | 10 - 35% | BM1/BM2 |
| 2.8k Barks | Barks | 2.80kg | 25 - 60% | BM1/BM2 |
| 5.0k Pellets | Pellets made of wood | 5.00kg | 5 - 15% | BM1/BM2 |
| 1.0k Shavings | Shavings | 1.00kg | 5 - 20% | BM1/BM2 |
| 1.3k Sawdust | Sawdust | 1.30kg | 10 - 30% | BM1/BM2 |
| 2.0k Sawdust | Sawdust | 2.00kg | 15 - 60% | BM1/BM2 |
| 1.0k Miscanthus | Miscanthus chopped Elephant Grass | 1.00kg | 10 - 25% | BM1/BM2 |
| 1.5k Corn cob | Corn cob(without corn) | 1.50kg | 5 - 45% | BM1/BM2 |
| Reference | To test the BM2 Not for use of measuring the moisture! | BM1/BM2 | ||
| Empty 1 | For customer calibration | BM2 | ||
| Empty 2 | For customer calibration | BM2 | ||
| Empty 3 | For customer calibration | BM2 | ||
| Empty 4 | For customer calibration | BM2 |
Additional Calibration Curves available for BM2 (optional)
coarse wood chips (Type P100)
compost (5 -35 %)
corn cob
prune (un-pitted)
prune (pitted)
prune (natural)
coarse wood chips (Type P100)
compost (5 -35 %)
corn cob
prune (un-pitted)
prune (pitted)
prune (natural)
The BM1 & BM2 Biomass moisture meter is delivered as a complete kit including:
- BM Biomass Moisture Meter with integrated Metal Bin
- plastic bucket
- user manual
- data transfer cable (BM2)
- USB cable (BM2)
- Software (BM2)
- digital scale; 10.00 Kg with 115V AC power supply
- BM Biomass Moisture Meter with integrated Metal Bin
- plastic bucket
- user manual
- data transfer cable (BM2)
- USB cable (BM2)
- Software (BM2)
- digital scale; 10.00 Kg with 115V AC power supply
| Measuring range | 5 to 60%, depending on material |
| Resolution | 0.5% (0.5 °C or °F) |
| Accuracy | +/- 1.5% |
| Measurement Technique | Capacitance, Click for more info |
| Sample volume | 13 liter |
| Menu languages | English, German, French, Italian, Spanish and Russian |
| Housing | Gauge: Plastic with IP40 rating Storage Bin: Stainless Steel |
| Display | Graphic LCD display with backlight (128 x 64 pixel) |
| Bulk Density Compensation | With HM-11656 Precision Scale |
| Temp Compensation | Automatic in °C or °F using built-in temperature probe |
| Datalogger | 10,000 moisture measurements plus date, batch & temperature |
| Data Interface (BM2 only) | USB (supplied with data transfer cable & software) |
| Operating Temp | 32°F to 104 °F (0 °C to 40 °C) |
| Storage Temp | -4 °F to 140 °F (-20 °C to 60 °C) |
| Power | 4 x 1.5 Volt AA Alkaline batteries |
| Battery Life | 900 measurements (with auto-off after 6 minutes of non-use) |

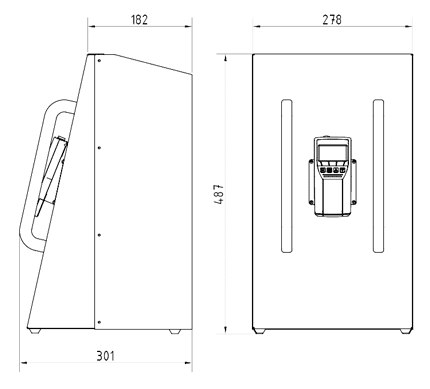

| Dimensions | 19.3" x 11.4 x 11.8 (490 x 290 x 300 mm) |
| Weight | 11.60 lbs. (5.3 kg) |
| MC% Method | Wet Basis (http://tinyurl.com/qayqvqe) |
| Item | Description | Price | ||
|---|---|---|---|---|
BM1 Biomass Moisture Content Meter, supplied with Digital Scale 10Kg - Please contact us for pricing and availability. | $ | |||
BM2 Biomass Moisture Content Meter - with USB output, supplied with Digital Scale 10Kg - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
Bluetooth Transmitter & USB Receiver | $299.00 | |||

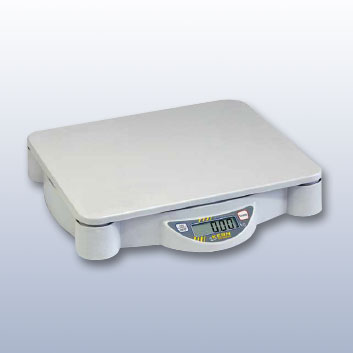

BM-SCALE | Replacement Digital Scale, 10Kg Capacity for use with BM1 or BM2 | $149.00 | ||
HM-11737 | Test kit to determine bulk density of wood chips and similar materials | $165.00 | ||
HM-11733 | Battery Powered Thermal Printer | $554.40 | ||
BM-CALCERT | Factory Calibration with Certificate for BM1/BM2 and BMA Moisture Meters | $168.00 | ||
BM-ISO | Test Medium for self calibration check of BM1, BM2 and BMA using Reference Curve | $220.00 | ||
