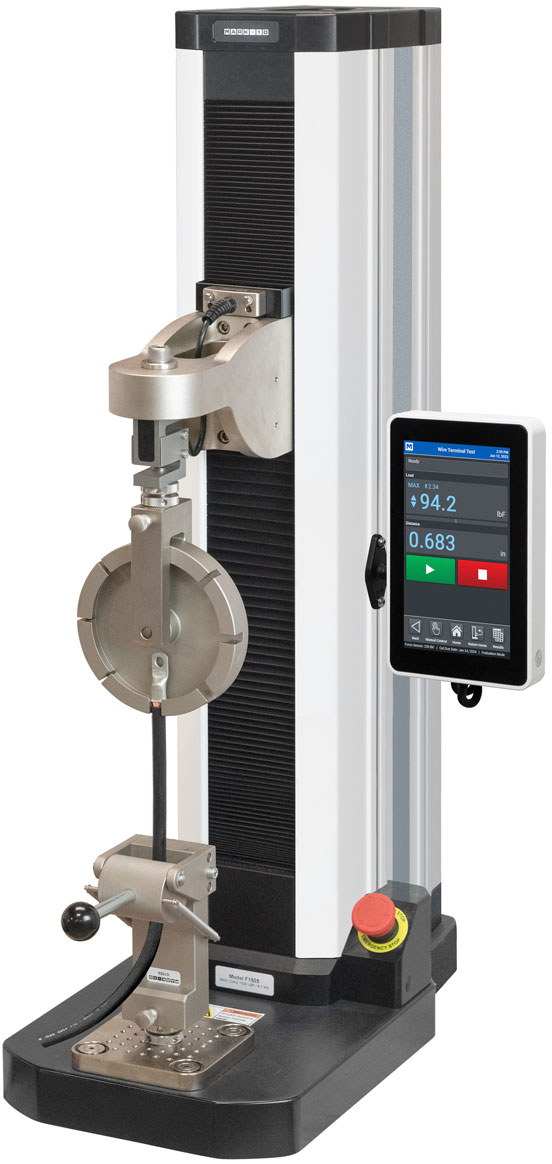

The WTT-EMHD system is a high-capacity motorized pull tester designed for checking wire terminal crimp strength per UL and MIL specifications.
Available in 750, 1000, or 1500 lb capacity, the WTT-EMHD includes a slotted wire terminal fixture accommodating wires up to 0000 AWG (4/0) (.46" / 11.8mm diameter).
An easy-to-use touchscreen interface allows for quick and intuitive operation. Optional non-destructive mode with load-holding allows for testing where a programmed force is held for a set time, according to UL486A and SAE/USCAR-21 specifications.
Standard USB output allows operators to transfer data to a PC or data collection system.- Includes NIST Traceable Calibration Certificate
- 3 Year Warranty
- CE Certified
- Fully modular component based system can be customized for your application
| Standard speed range | 0.5 - 24 in/min - 10 - 600 mm/min |
| Optional speed range | 0.02 – 45 in/min - 0.5 – 1,100 mm/min |
| Load accuracy | Test frame: ±0.1%* |
| Power | Universal input 100-240 VAC, 50/60 Hz, 120W |
| Shipping weight | 260 LB / 118 KG |
| Warranty | 3 Years |
The WTT-EMHD is sold as a complete test system that includes the following items;
F1505S - Programmable Motorized Test Stand
MR07-750 / 1000 / 1500 - Digital Force Gauge

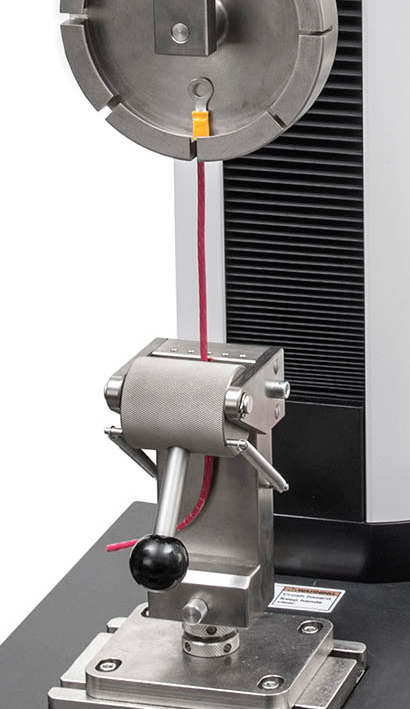

G1094 - Wire Cam Grip
G1093 - Wire Terminal Grip
AC1045-2 - Eye end adapter
F1505S - Programmable Motorized Test Stand
MR07-750 / 1000 / 1500 - Digital Force Gauge
G1094 - Wire Cam Grip
G1093 - Wire Terminal Grip
AC1045-2 - Eye end adapter
Non-Destructive Testing Requires 2 Options:
EMF006-2 - Cycling Option for EasyMESUR Test Frame
EMF008-2 - Load Holding Option for EasyMESUR Test Frame
| Item | Description | Price | ||
|---|---|---|---|---|
Motorized Wire Terminal Pull Tester System, 750 lb / 340 Kg Capacity | $12,235.00 | |||
Motorized Wire Terminal Pull Tester System, 1000 lb / 450 Kg Capacity | $13,500.00 | |||
Motorized Wire Terminal Pull Tester System, 1500 lb / 680 Kg Capacity | $13,500.00 | |||
| Accessories | ||||
Cycling Option for EasyMESUR-HR Test Stand | $712.50 | |||
Load Holding for EasyMESUR-HR Test Stand | $712.50 | |||
Graphing & Reporting for EasyMESUR-HR Test Stand | $1,529.50 | |||
Wedge Grip with .75" Wide Jaws, 1200 lb cap. | $655.50 | |||
