WTT Manual Wire Terminal Pull Tester

Made in USA
Wire Terminal Pull Tester WTT-100
Click images to enlarge.
The WTT Wire Terminal Pull Tester precisely measures the pull off force of crimped on wire terminals up to 220 lbs / 100 kg. The system consists of a manual hand-wheel test stand, digital force gauge and wire gripping fixtures for wire diameters up to 0.24 inches / 6mm, AWG 30 to AWG 4*.

*Provided the strength requirement is within the range of the tester.

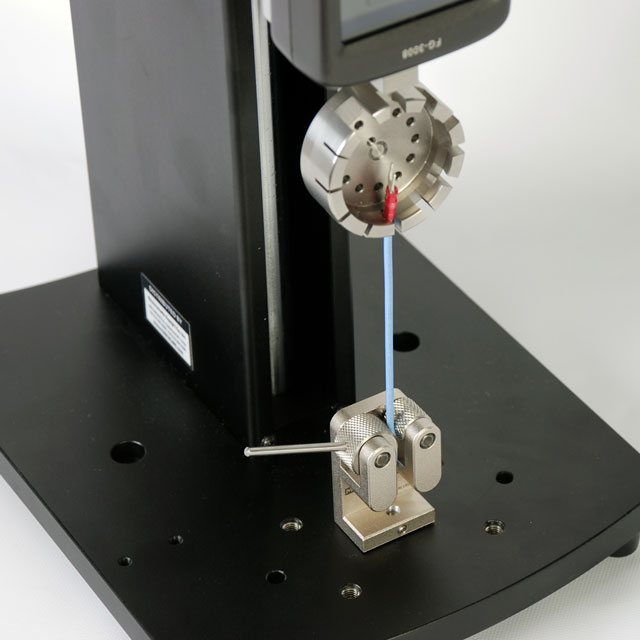

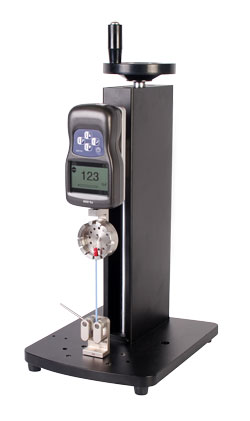

Vertical Operation

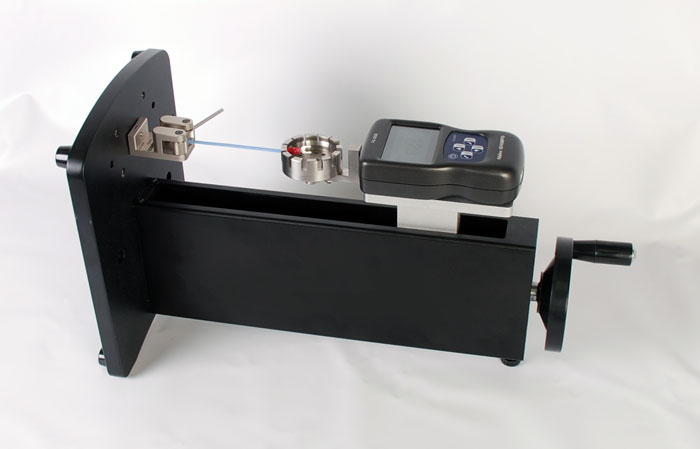

Horizontal Operation

Features

  • Suitable for wire diameters up to 0.24 inches / 6mm, AWG 30 to AWG 4
  • Vertical or Horizontal operation
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 reading memory
  • Supplied with Factory Calibration Certificate, NIST Traceable Cert is Optional
  • Includes Data Logging Software
  • USB and RS232 Output
  • User selectable measuring units (lbs / Kg / N)

Complete System

The WTT-100 is sold as a complete test system that includes the following items;

1. FG-3008 - Digital Force Gauge
2. FGS-250W - Manual Test Stand
3. G1002 - Wire Cam Grip
4. G1076-M6 - Wire Terminal Grip

The WTT-200 is sold as a complete test system that includes the following items;

1. FG-3009 - Digital Force Gauge
2. FGS-250W - Manual Test Stand
3. G1002 - Wire Cam Grip
4. G1076-M6 - Wire Terminal Grip

Specifications

CapacityWTT-100: 110 Lb / 50 kg / 500 N
WTT-200: 220 Lb / 100 Kg / 1000 N
ResolutionWTT-100: 0.1 Lb / 0.01 Kg / 0.1 N
WTT-200: 0.1 Lb / 0.1 Kg / 1 N
Accuracy± 0.3% F.S.
Stroke9" (230 mm) without attachments installed
Overload Capacity150% of F.S. (LCD flashes beyond 110% of F.S.)
Display Update Rate10 times/second
Memory500 readings
PowerInternal Ni-MH rechargeable batterie, Universal Power adapter included
Battery LifeApproximately 16 hours continuous use per full charge
OutputsUSB, RS-232; High & Low Limit NPN’s
Operating Temperature14 to 104°F (-10 to 40°C)
Dimensions9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight19 lbs / 8.6 Kg
Warranty1 Year
