Total Measuring Range (depends on material and transducer/probe type)
0.025 - 36.000 inches
0.63 - 914.4 mm
0.025 - 36.000 inches
0.63 - 914.4 mm
Measuring Range on Steel (with standard T-102-3300 probe)
0.025 - 6.00 inches
0.60 - 150.0 mm

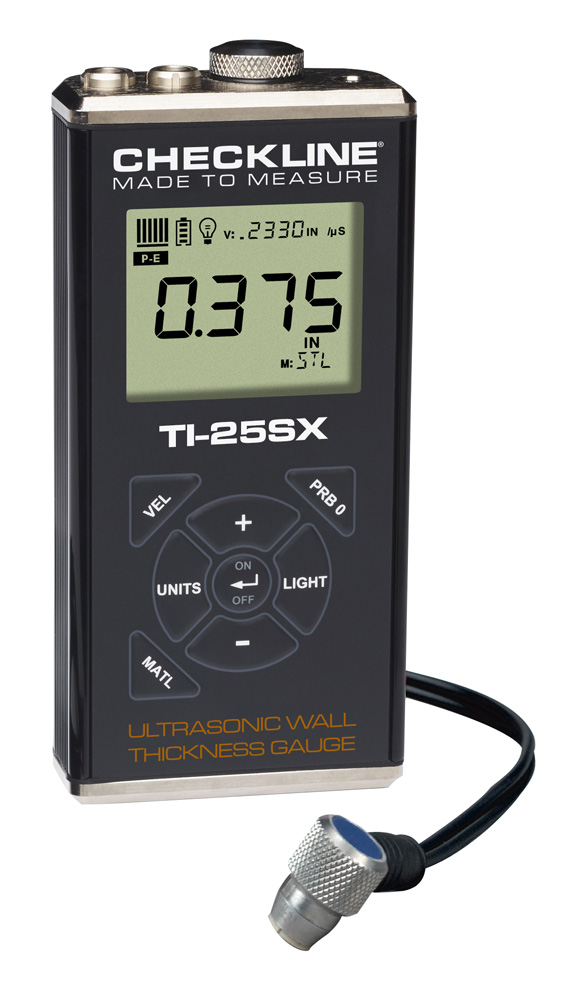

The TI-25SX allows the operator to select from 8 preset materials as well as program 2 custom material velocities allowing the user to tune the calibration to be optimized for a specific type of material. The calibration can be locked to prevent any accidental adjustments. The preset materials are as follows:
- 1. Steel 4340
- 2. Stainless 303
- 3. Aluminum 2024
- 4. Cast Iron
- 5. Plexiglass
- 6. PVC
- 7. Polystyrene
- 8. Polyurethane
- 9. Custom1
- 10. Custom2
- Includes NIST Traceable Calibration Certificate
- Resolution of 0.001 inch (0.01 mm)
- The Transducer (probe) is waterproof and can be submerged in shallow water
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- Switch-selected units for inches or mm
-
The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions - For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
- LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
- Acoustic Velocity (calibration) is manually adjusted via the keypad
- 5 Year Warranty, CE-Certified and Made in USA
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Selectable Backlight ON/OFF/AUTO
- Warranty: Gauge: 5 Years Probes: 90 Days
- Made in USA
Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | |
Minimum Radius for Concave Surfaces | 3" (76.2 mm) | |
Minimum Headroom | 1" (25.0 mm) | |
Minimum Sample Diameter | 0.150" (3.8 mm) | |
Minimum Substrate Thickness - F | na | |
Minimum Substrate Thickness - NFe | na |
Total Measuring Range (Steel) | 0.025 - 36.000 inches 0.63 - 914.4 mm (depends on material and transducer/probe type) |
Measuring Range (Steel) | 0.025-6.000 inches 0.60-150.0 mm (with standard transducer T-102-3300) |
Resolution | 0.001 inch (0.01 mm) |
Measuring Mode | Pulse-Echo (P-E) |
Velocity Range | 0.0120 to .7300 in/μs (305 to 18,542 m/sec) |
Probe (Standard) | 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300 |
Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
Probe Wearface | PEEK (Polyethylethylkytone) |
Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
Display Update Rate | 10 Hz (10 updates/sec) |
Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F) Material: -20 to 100° C (0 to 200° F) High temperature probes available |
Battery Type | 2x AA batteries (rechargeable batteries can be used) |
Battery Life | 45 hours continuous use |
Weight | 308 grams (11 ounces) |
Dimensions | 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25") |

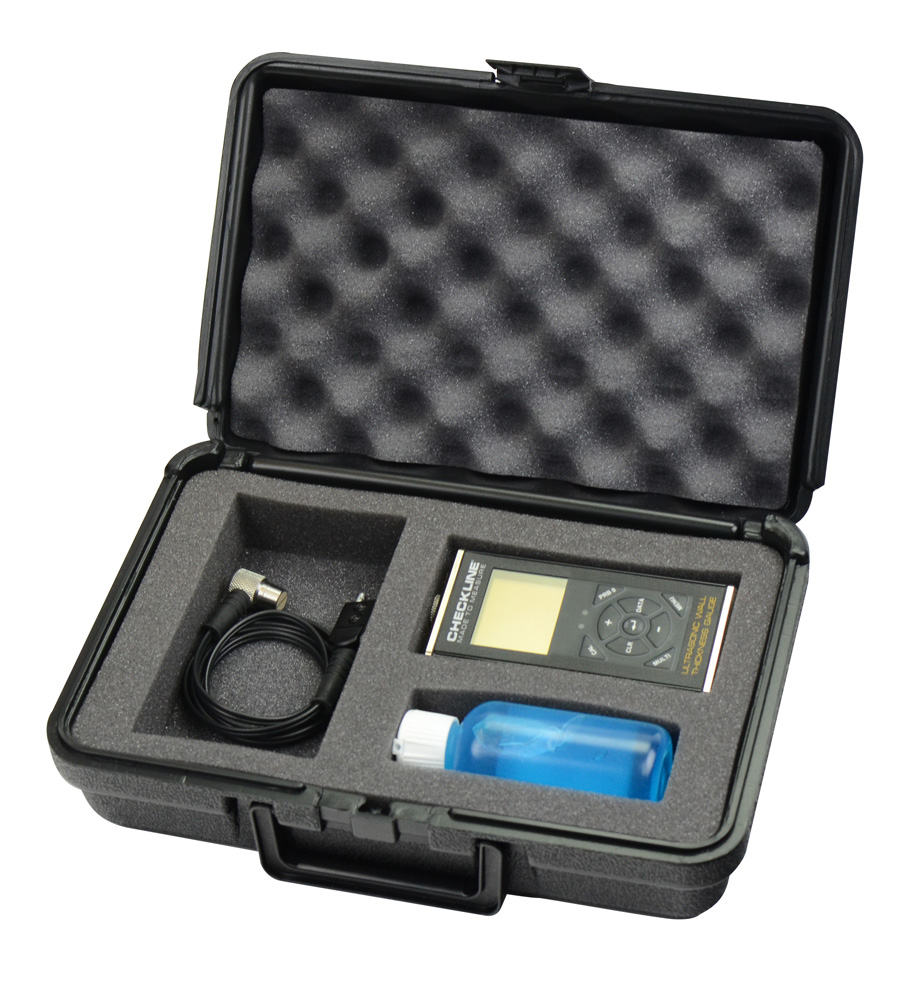

Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
Housing Rating | IP65 |
Certifications | NIST Traceable and MIL-STD-45662A |
Keypad | Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys |
Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
Warranty | Gauge: 5 Years Probes: 90 Days |
Item | Description | Price | ||
---|---|---|---|---|
Ultrasonic Wall Thickness Gauge kit with T-102-3300 probe | $1,425.00 | |||
Ultrasonic Wall Thickness Gauge Complete Kit WITHOUT PROBE | $1,105.00 | |||
Accessories | ||||
1/4" diameter, 7.5 MHz, dual element transducer, Side in, Potted | $355.00 | |||
Protective Rubber Boot for TI / ZX Series Small Body Ultrasonic Thickness Gauges | $95.00 | |||
4 Step Steel Test Block, 0.1 / 0.2 / 0.4 / 0.6 inch - Uncertified, supplied in plastic case | $125.00 | |||
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 | $170.00 | |||
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559 | $30.00 | |||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||
Alternate Probes/Transducers for Special-purpose Applications | ||||
1/4" diameter, 5.0 MHz, dual element transducer, Side In, Potted | $320.00 | |||
1/4" diameter, 2.25 MHz, dual element transducer, Side In, Potted | $320.00 | |||
1/2" diameter, 2.25 MHz dual element transducer, Side In, Potted | $330.00 | |||
1/2" diameter, 5.0 MHz dual element transducer, Side In, Potted | $330.00 | |||
1/2" diameter, 1.00 MHz dual element transducer, Side In, Potted | $330.00 | |||
3/16" diameter, 5.0 MHz dual element transducer with extended contact area | $395.00 | |||
1/4" diameter, 5.0 MHz dual element transducer, High Temp 650°F / 343°C Top in, Potted | $375.00 | |||
1/2" diameter 5.0 MHz dual element transducer Hi-Temp (650 F/344 C), Side in, Microdot | $405.00 | |||
1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot | $470.00 |
