0.025 - 36.000 inches
0.63 - 914.4 mm
Measuring Range on Steel (with standard T-102-3300 probe)
0.025 - 6.00 inches
0.60 - 150.0 mm

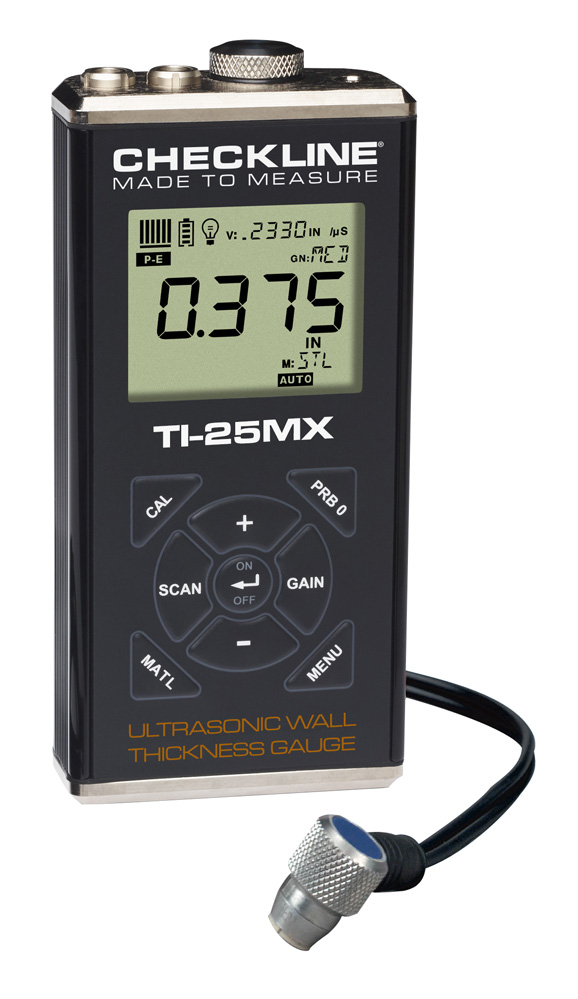

The Check-Line TI-25MX Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.
The TI-25MX combines the best features of the TI-25SX allowing the operator to select from 8 preset materials as well as program 2 custom material velocities. The preset materials are as follows:
- 1. Steel 4340
- 2. Stainless 303
- 3. Aluminum 2024
- 4. Cast Iron
- 5. Plexiglass
- 6. PVC
- 7. Polystyrene
- 8. Polyurethane
- 9. Custom1
- 10. Custom2
Additionally, the user can adjustment of the velocity as desired and calibrate to a sample of known thickness ---- the optimal acoustic velocity is automatically calculated. In special circumstances, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points. The calibration and other setup parameters can be locked to prevent any accidental adjustments.
The calibration can be locked to prevent any accidental adjustments.
The TI-25MX can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The TI-25MX probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.
- Includes NIST Traceable Calibration Certificate
- Resolution of 0.001 inch (0.01 mm)
- Switch-selected units for inches or mm
- User-selected Manual or Auto Zero of Transducer
- User can select from 8 preset materials as well as program 2 custom material velocities
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
-
The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions - For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
- High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Selectable Backlight ON/OFF/AUTO
- CE-Certified
- Warranty: Gauge: 5 Years Probes: 90 Days
- Made in USA
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | |
| Minimum Radius for Concave Surfaces | 3" (76.2 mm) | |
| Minimum Headroom | 1" (25.0 mm) | |
| Minimum Sample Diameter | 0.150" (3.8 mm) | |
| Minimum Substrate Thickness - F | na | |
| Minimum Substrate Thickness - NFe | na |
| Total Measuring Range (Steel) | 0.025 - 36.000 inches 0.63 - 914.4 mm (depends on material and transducer/probe type) |
| Measuring Range (Steel) | 0.025-6.000 inches 0.60-150.0 mm (with standard transducer T-102-3300) |
| Resolution | 0.001 inch (0.01 mm) |
| Measuring Mode | Pulse-Echo (P-E) |
| Velocity Range | 0.0120 to .7300 in/μs. 305 to 18,542 meters/sec |
| GAIN Adjustment | Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB |
| Probe (Standard) | 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300 (4 ft cable) |
| Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| Probe Wearface | PEEK (Polyethylethylkytone) |
| Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Display Update Rate | 10 Hz (10 updates/sec) |
| Scan Mode | 100 Hz (100 updates/sec), Displays the lowest reading found during a scan |
| Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F) Material: -20 to 100° C (0 to 200° F) High temperature probes available |
| Battery Type | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life | 45 hours continuous use |
| Weight | 308 grams (11 ounces) |
| Dimensions | 64 x 131 x 32 mm (2.5" x 5.17" x 1.25") |

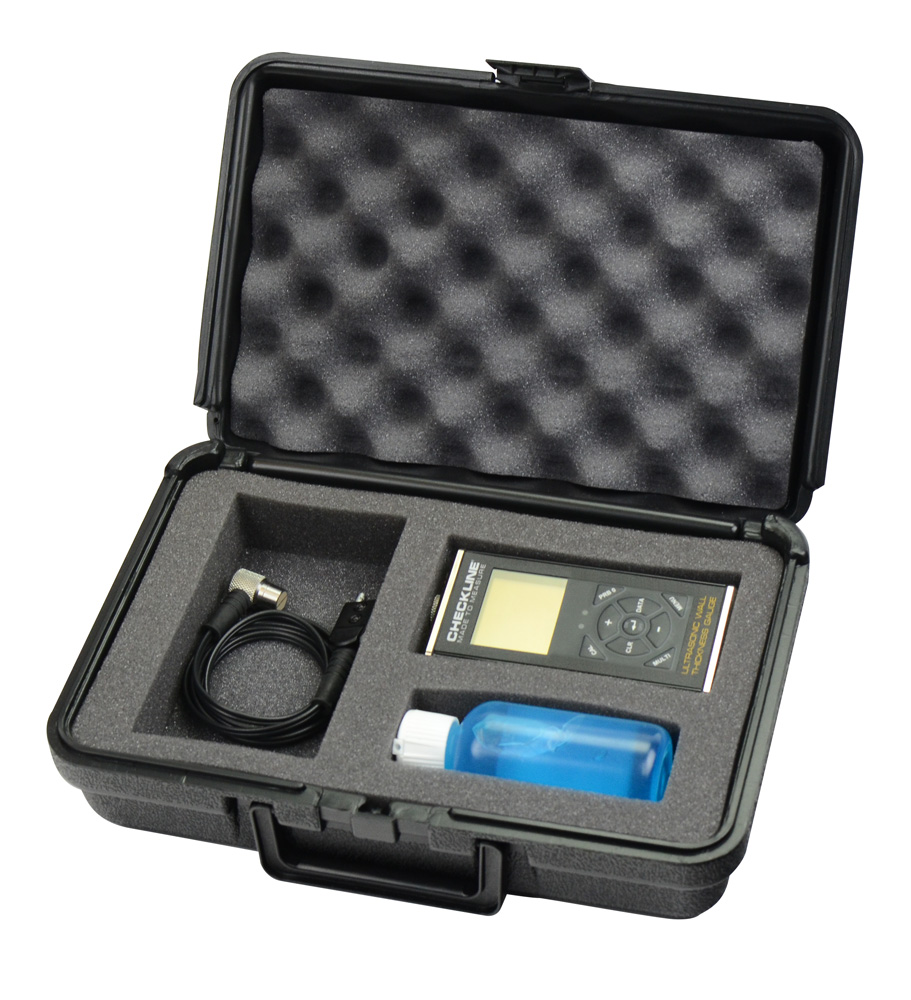

| Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Housing Rating | IP65 |
| Certifications | NIST Traceable and MIL-STD-45662A |
| Keypad | Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys |
| Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
| To Lock Settings | With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display |
| To unLock Settings | With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off |
| Warranty | Gauge: 5 Years Probes: 90 Days |
| Java Demo Link | TI-25MX Demo App (Requires Java Desktop Software) |
| Item | Description | Price | ||
|---|---|---|---|---|
Ultrasonic Wall Thickness Gauge Complete Kit with T-102-3300 Probe | $1,725.00 | |||
Ultrasonic Wall Thickness Gauge Complete Kit WITHOUT PROBE | $1,405.00 | |||
| Accessories | ||||
1/4" diameter, 7.5 MHz, dual element transducer (Standard Probe for TI-25MX) | $355.00 | |||
Protective Rubber Boot for TI / ZX Series Small Body Ultrasonic Thickness Gauges | $95.00 | |||
4 Step Steel Test Block, 0.1 / 0.2 / 0.4 / 0.6 inch - Uncertified, supplied in plastic case | $125.00 | |||
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 | $170.00 | |||
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559 | $30.00 | |||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||
| Alternate Probes/Transducers for Special-purpose Applications (4 ft cable unless otherwide noted) | ||||
1/4" diameter, 5.0 MHz, dual element transducer, Side In, Potted | $320.00 | |||
1/4" diameter, 10.0 MHz, dual element transducer, Side in, Potted | $350.00 | |||
1/4" diameter, 2.25 MHz, dual element transducer, Side In, Potted | $320.00 | |||
1/2" diameter, 2.25 MHz dual element transducer, Side In, Potted | $330.00 | |||
1/2" diameter, 5.0 MHz dual element transducer, Side In, Potted | $330.00 | |||
1/2" diameter, 1.00 MHz dual element transducer, Side In, Potted | $330.00 | |||
3/16" diameter, 5.0 MHz dual element transducer with extended contact area | $395.00 | |||
1/4" diameter, 5.0 MHz dual element transducer, High Temp 650°F / 343°C Top in, Potted | $375.00 | |||
1/2" diameter 5.0 MHz dual element transducer Hi-Temp (650 F/344 C), Side in, Microdot | $405.00 | |||
1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot | $470.00 | |||
10 foot Dual Lemo Extension Cable for UT Gauges | $195.00 | |||
TI-EXT-20 | 20 foot Dual Lemo Extension Cable for UT Gauges | $275.00 | ||
25 foot Dual Lemo Extension Cable for UT Gauges | $295.00 | |||
50 foot Dual Lemo Extension Cable for UT Gauges | $365.00 | |||
