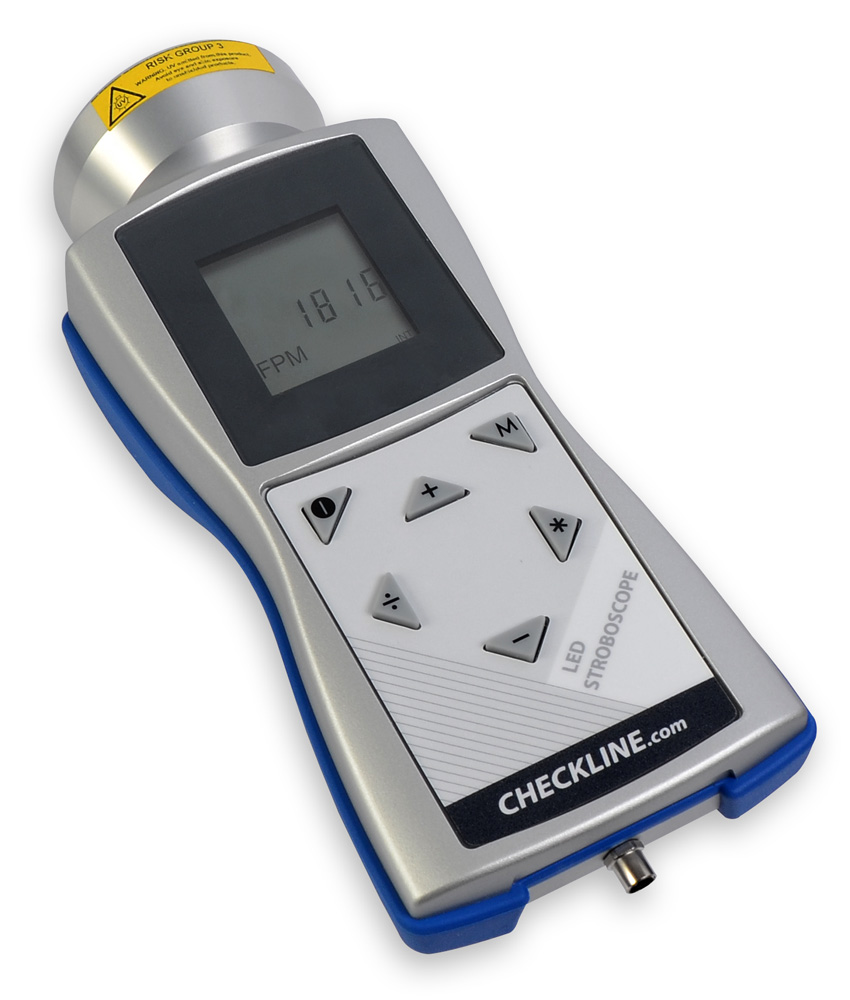

The DS-2000LED-UV is a battery-powered hand-held Blacklight LED stroboscope designed for inspecting UV ink on labels, security tags, watermarks and more. Seven state-of-the-art, super-bright UV LEDs mounted in a precision-machined aluminum head with optimized optics, provide the superior light output.
Powered by 3 AA batteries, the DS-2000LED-UV can operate even at the highest flash rates for up to six hours. An easy-to-use interface allows the operator to quickly adjust the flash speed to sync to the moving process.
A high-impact plastic housing with rubber sleeve provides additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use in harsh printing environments.
Powered by 3 AA batteries, the DS-2000LED-UV can operate even at the highest flash rates for up to six hours. An easy-to-use interface allows the operator to quickly adjust the flash speed to sync to the moving process.
A high-impact plastic housing with rubber sleeve provides additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use in harsh printing environments.
- UV Light Spectrum is 380…390 nm
- Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
- Lifetime LEDs do not wear-out or need replacement

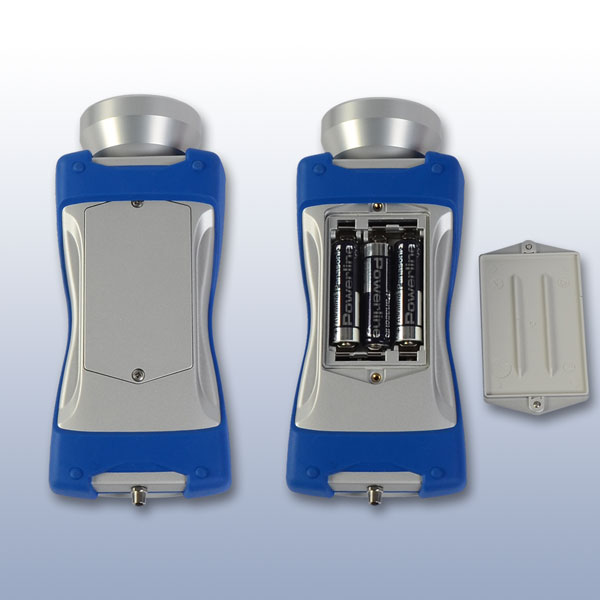

- Three (3) AA-Batteries provide six hours of continuous use operation
- Intuitive controls allow user to quickly adjust flash rate and shift phase
- User-selected units of Hz or FPM (Flashes Per Minute)
- 2-Year warranty
- IP 65 rated housing provides protection from water jets

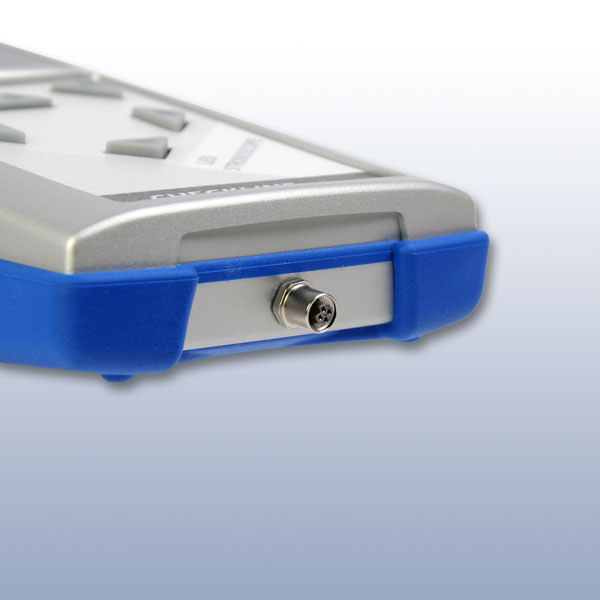

- An External Trigger Inpup signal can be used to externally control the flash rate
- The Trigger Output provides a frequency output signal which can be used by data collection devices to record flash rate

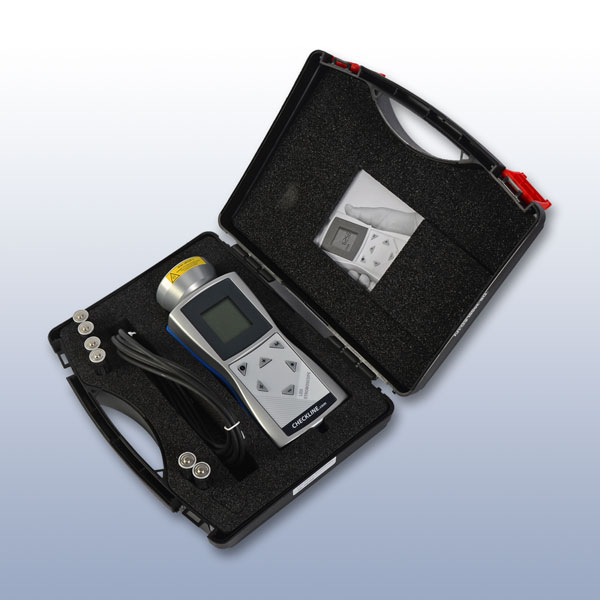

DS-2000LED-UV Strobe is supplied in foam-fitted plastic carrying case with 6x AA batteries
| UV Wavelength | 380-390 Nanometers |
| Frequency Range | 30 - 300,000 FPM (0.5 - 5000Hz) |
| Flash Duration | Adjustable (1 usec up to 8522 usec) |
| Accuracy | ± 0.02% ± 500ns |
| Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM 1000+ |
| UV Light Spectrum | 380…390 nm |
| Protection Class | IP65 (Protection from Dust and Water Jets) |
| Display | LCD, multiple lines |
| Certification | CE (as per EU norms) |
| Power Supply | 3x AA size batteries or 3x NiMH rechargeable batteries |
| Housing Material | Aluminum / ABS Heavy duty design |
| Dimensions | 191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch |
| Weight Approx | 400g (including batteries) |
| Temperature Range | 0° - 45° C / 32° - 113° F |
| Battery Life | NiMH: approx 11h at 6.000 FPM Disposable: approx 6 h at 6.000 FPM |
| Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 |
| Trigger Input | 3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free |
| Trigger Output | Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated |
| Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 |
| Warranty | 2 Years |
| Item | Description | Price | ||
|---|---|---|---|---|
Battery Powered UV LED Stroboscope, Complete Kit - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||

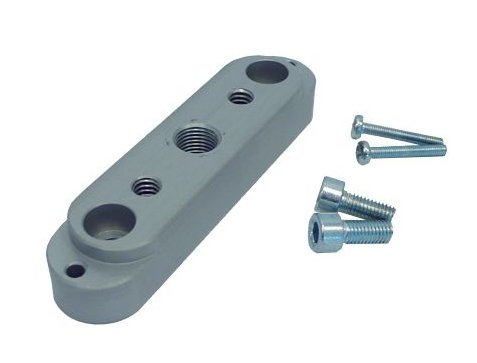

DS-2000LED-TPM | Screw-on Tripod Mount for DS-2000LED [N0001.618] | $45.00 | ||
