The TTC Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, electric screwdrivers, pneumatic screwdrivers and other torque controlled power tools.
The TTC's provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.
The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results.
Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.
These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.
The TTC's provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.
The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results.
Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.
These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.
- Calibration certificate with data
- Strong, light-weight, compact aluminum enclosure
- Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
- Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication
- Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
- Come standard with USB or RS232 communication output for data upload
- 1000 memory record storage plus software provides easy data transfer
- 0.3% FS accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
- Operation via the rechargeable battery or the AC
- Rundown adapter for power tool testing on certain models are available.
| Model | in-lb | ft-lb | N-cm | N-m | Kg-cm |
|---|---|---|---|---|---|
| TTC-I-2 | 17.7 | 1.48 | 200 | 2 | 20 |
| TTC-I-5 | 43.3 | 3.7 | 500 | 5 | 50 |
| TTC-I-10 | 88.5 | 7.4 | 1000 | 10 | 100 |
| TTC-I-20 | 177 | 14.8 | 2000 | 20 | 200 |
| TTC-I-50 | 443 | 36.8 | 5000 | 50 | 500 |
| TTC-I-100 | 885 | 74 | 10000 | 100 | 1000 |
| TTC-E-200 | 1770 | 148 | X | 200 | 2000 |
| TTC-E-500 | 4425 | 368 | X | 500 | 5000 |
| TTC-E-800 | 7080 | 590 | X | 800 | 8000 |
| Accuracy | ± 0.3% of reading over 5 to 100% capacity |
| Units of Measure | N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range) |
| Measure Modes | Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak |
| Tool Socket Size | TTC-2/5/10: 1/4” & 1/2” (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8” & 1/2” (10 & 12.5 mm) TTC-500/800: 3/4” (19 mm) |
| Overload Protection | 120% of Full Scale |
| Sampling Rate | 2000 Hz |
| Peak Capture Rate | 0.05 s |
| Display | 160* 128 Dot matrix backlit LCD |
| Display Update Rate | 10 times/sec |
| Memory | 1000 data |
| Set Point | Programmable High and Low Limits |
| Charger/Adapter | Universal USB charger, input 100 – 240 V ac 50/60 Hz |
| Operating Temperature | 14 to 104ºF (-10 to 40ºC) |
| Humidity Limit | 20 – 80% RH |
| Power | 3.6 V dc 1600 mAH Ni-MH |
| Battery Life | Approx. 16 Hours continuous on full charge |
| Certification | CE |
| Included Accessories | USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only) |
| Optional Accessories | RS-232 cable, Rundown adapters & Printer. Note: Software available for free at www.shimpoinst.com |
| Warranty | 1-Year |
| Item | Description | Price | ||
|---|---|---|---|---|
| Integrated Sensor | ||||
Digital Torque Tester, 17.7 lb-in / 2 N-m Capacity, 1/4" Drive | $995.00 | |||
Digital Torque Tester, 43.3 lb-in / 5 N-m Capacity, 1/4" Drive | $995.00 | |||
Digital Torque Tester, 88.5 lb-in / 10 N-m Capacity, 1/4" Drive | $1,095.00 | |||
Digital Torque Tester, 177 lb-in / 20 N-m Capacity, 3/8" Drive | $1,195.00 | |||
Digital Torque Tester, 443 lb-in / 50 N-m Capacity, 3/8" Drive | $1,225.00 | |||
Digital Torque Tester, 885 lb-in / 74 lb-ft / 100 N-m Capacity, 3/8" and 1/2" Drive | $1,495.00 | |||
| External Sensor | ||||
Digital Torque Tool Tester, External Sensor, 200 N-m (148 ft-lb) Capacity, 3/8" & 1/2" tool socket size | $1,995.00 | |||
Digital Torque Tool Tester, External Sensor, 500 N-m (368 ft-lb) Capacity, 3/4" tool socket size | $2,195.00 | |||
Digital Torque Tool Tester, External Sensor, 800 N-m (590 ft-lb) Capacity, 3/4" tool socket size | $2,295.00 | |||
| Test Stands | ||||
TTC Manually Operated Torque Test Stand; 24" (620 mm) Test Distance | $1,275.00 | |||
TTC Manually Operated Torque Test Stand; 44" (1120 mm) Test Distance | $1,375.00 | |||
Manually Operated Vertical Torque Test Stand with Rotational Base | $2,500.00 | |||
| Accessories | ||||
NISTCAL-TTC-LR | NISTCAL for TTC Torque Testers up to 50 Nm | $250.00 | ||
NISTCAL-TTC-HR | NISTCAL for TTC Torque Testers 100-800 Nm | $500.00 | ||

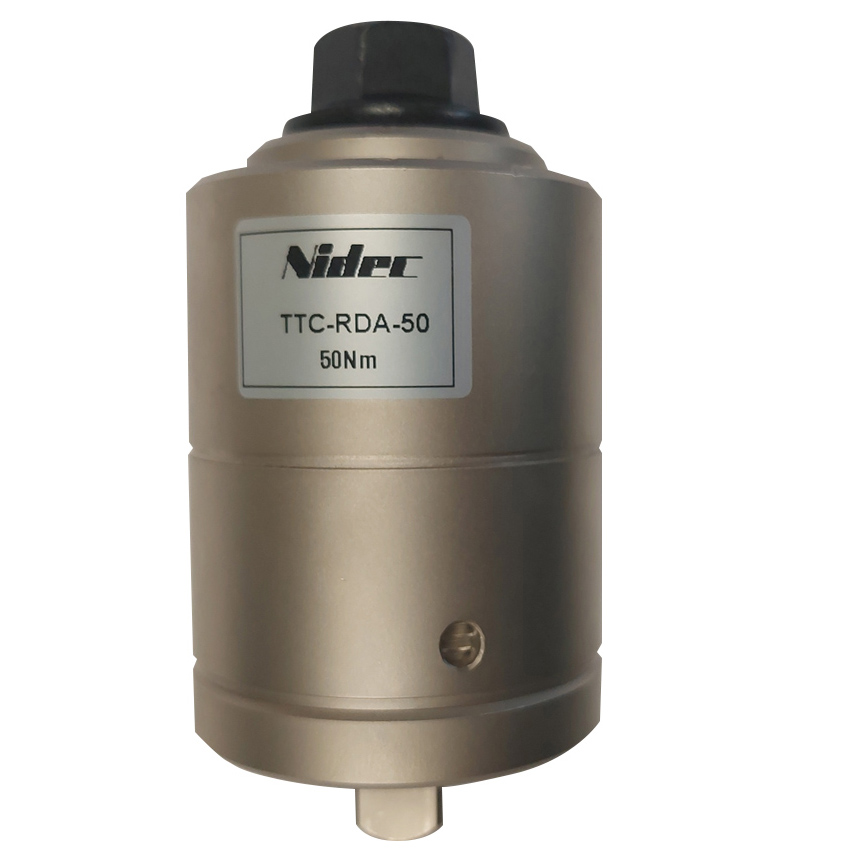

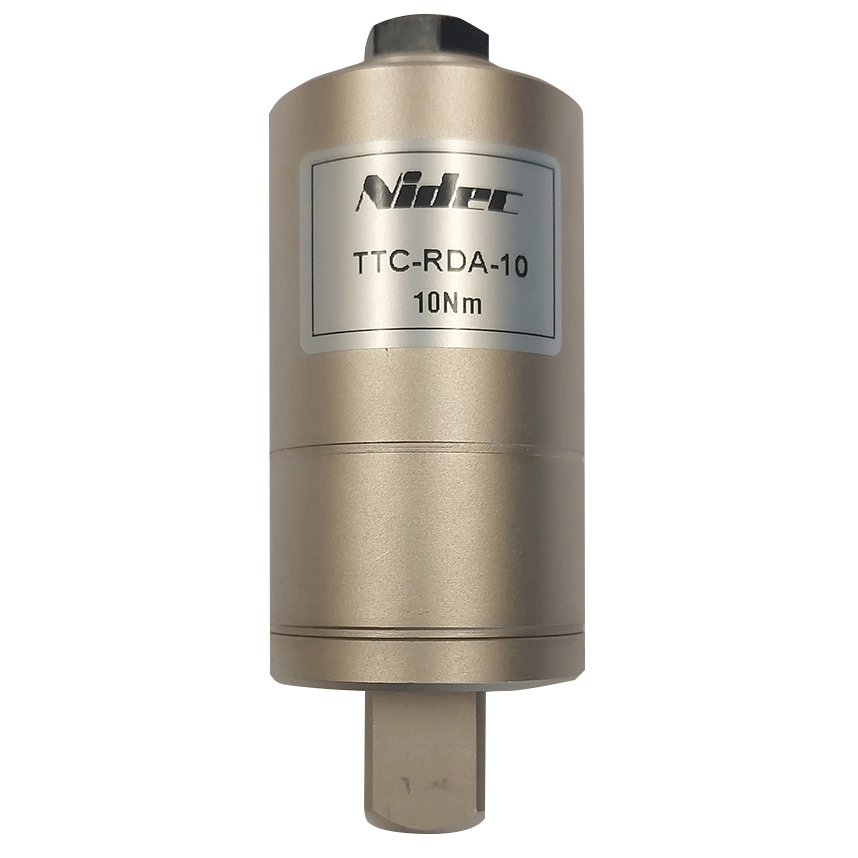

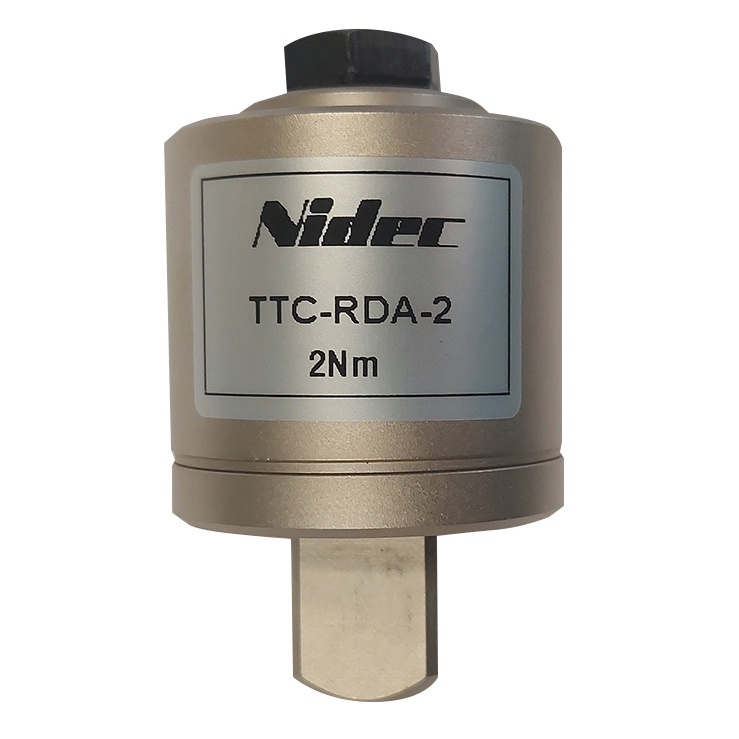

TTC-RD-2 | Rundown adapter. 17.7 in-lbf (2 N-m) 1/4˝ hex male, PHz 4mm female | $150.00 | ||
TTC-RD-6 | Rundown adapter. 53.1 in-lbf (6 N-m) 1/4˝ hex male, 5mm hex female | $175.00 | ||
TTC-RD-40 | Rundown adapter 354 in-lb (40 N-m) 17mm hex male, 8mm hex female | $250.00 | ||
TTC-RD-100 | Rundown adapter 885.1 in-lb (100 N-m) 21mm hex male, 12mm hex female | $275.00 | ||
Charger for FG-3000/7000 Force Gauges & TTC Torque Testers (requires USB Type B cable) | $19.00 | |||
FG-7CHRG-EU | Charger with Euro Plug for FG-3000/7000 Force Gauges & TTC Torque Testers (requires USB Type B cable) | $19.00 | ||
TTC-BAT | Replacement Battery for TTC | $25.00 | ||
FG-7000T-SCBL | Replacement cable for force / torque indicator | $65.00 | ||
FG-7RS232CBL | RS-232 Cable for FG-3000/7000 force gauge, TTC, TNC & FG-7000T | $25.00 | ||
