The TW-Series manual torque multiplier is ideal for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping, and maintenance industries.

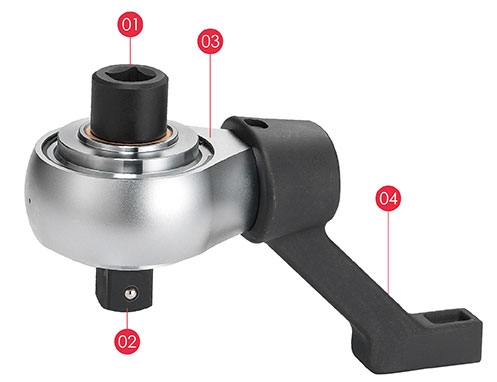

- Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.
- Output end: Chromium-molybdenum alloy steel brings better strength and life cycle.
- Main body: Electroplating Finished good for anti-corrosion and anti-abrasion.

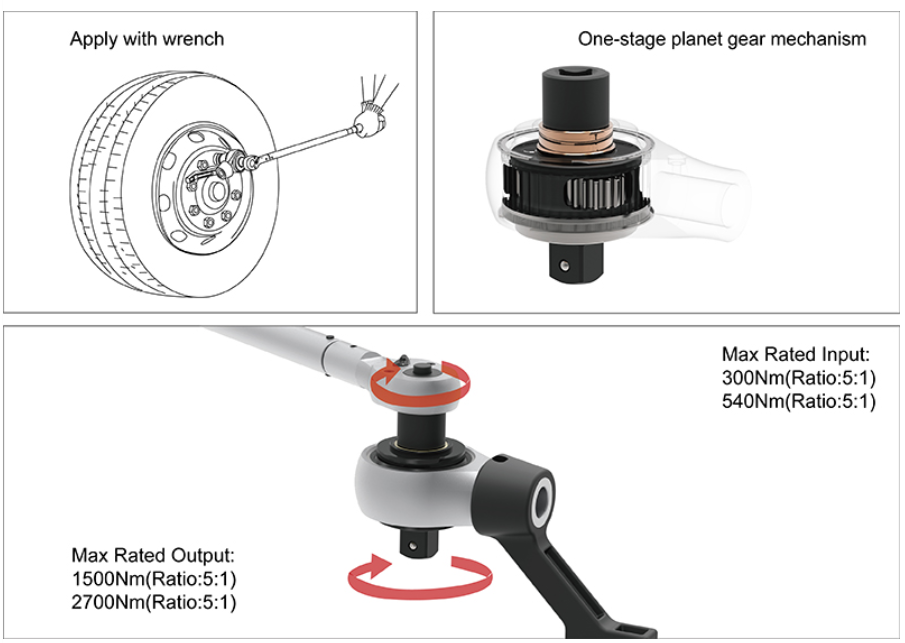

(a)Planetary gear carrier device brings high transmission efficiency and load capacity.
(b)All gears rotate on needle roller bearings throughout the operating process. - Reaction arm: Each tool is supplied with 2 reaction bars subject to the working environment.
- Supplied with 2 reaction bars
- Multiplication accuracy ±5%.
- Precision tightening and loosening of all heavy duty fastening connections
- For operation in combination with a torque wrench
- Torque Multiplication Ratio - low energy input with high torque output
- Compact design allows for operation in space-restricted applications
- CLTW-428 Models feature an anti-backlash mechanism for safety

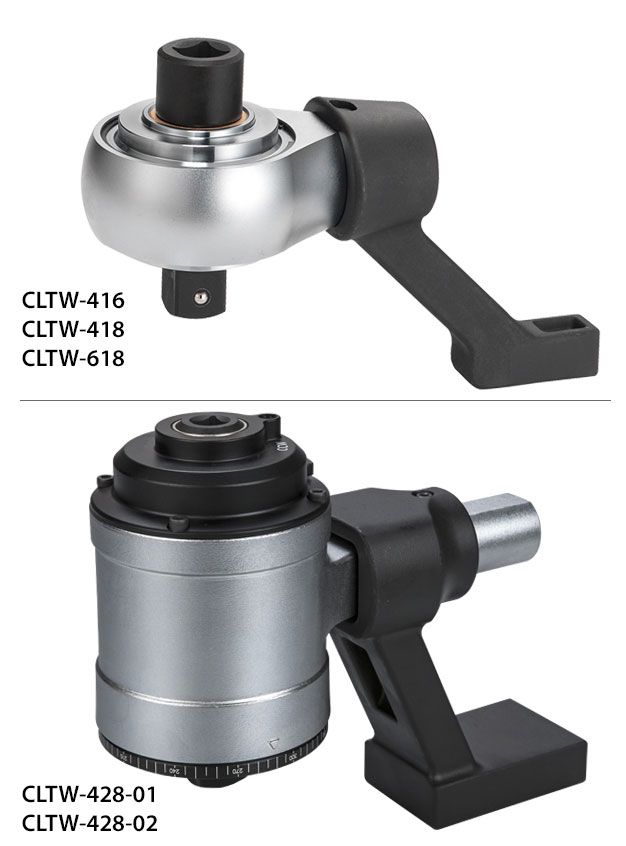

| Model | Output Nm | Output lb-ft | Input Drive | Output Drive | Ratio |
|---|---|---|---|---|---|
| CLTW-416 | 1500 | 1100 | 1/2" | 3/4" | 5:1 |
| CLTW-418 | 1500 | 1100 | 1/2" | 1" | 5:1 |
| CLTW-618 | 2700 | 2000 | 3/4" | 1" | 5:1 |
| CLTW-428-01 | 3000 | 2200 | 1/2" | 1" | 15.5:1 |
| CLTW-428-02 | 4500 | 3300 | 1/2" | 1" | 26:1 |

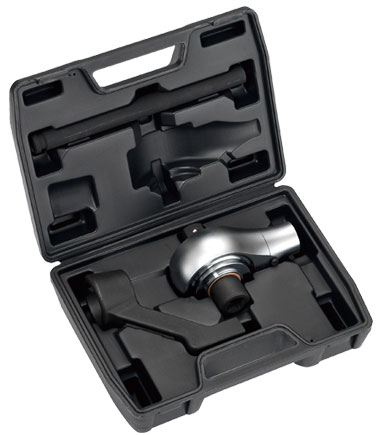

Supplied as a kit with a reaction foot and reaction bar.
| Item | Description | Price | ||
|---|---|---|---|---|
Manual Torque Multiplier, 1500 Nm / 1000 lb-ft, 5:1, 1/2" Input, 3/4" Output | $645.00 | |||
Manual Torque Multiplier, 1500 Nm / 1000 lb-ft, 5:1, 1/2" Input, 1" Output | $645.00 | |||
Manual Torque Multiplier, 2700 Nm / 2000 lb-ft, 5:1, 3/4" Input, 1" Output | $645.00 | |||
Manual Torque Multiplier, 3000 Nm / 2200 lb-ft, 15.5:1, 1/2" Input, 1" Output | $1,895.00 | |||
Manual Torque Multiplier, 4500 Nm / 3300 lb-ft, 26:1, 1/2" Input, 1" Output | $2,195.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
