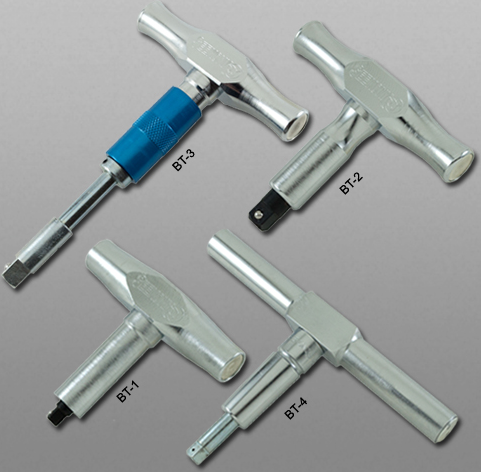

The slip type "T" handle family of tools has become the worldwide standard for torque hand tools. Foolproof accurate torque control at a most reasonable cost has made the "T" handles indispensable in countless applications. That's why millions of this type of tool have been sold. All components for the slip type "T" family of tools are precision machined here at our Massachusetts facility on state of the art CNC equipment under strict a ISO 9001 certified quality system. These tools are always being re-engineered with design enhancements and superior materials to maintain their status as the finest torque tools available. These durable torque tools are pre-set at the factory to a specified torque value. Upon reaching the specified torque value, the tools automatically release and reset. This action prevents tightening above the pre-set value despite continued turning.
All tools are manufactured in Massachusetts and are shipped with complementary NIST certs.
| Range | Maximum Error |
|---|---|
| 2-10 in.lbs | ±½ in.lbs |
| 11-25 in.lbs | ±1 in.lbs |
| 26-50 in.lbs | ±2 in.lbs |
| >51 in.lbs | ±4% in.lbs |
- Ratchet - Pre-Set Torque Level Set Right & Ratchets When Turned Left.
- Direct - Pre-Set Torque Level Set In Both Right & Left Directions.
- Lockup - Pre-Set Torque Level Set Right & Locks When Turned Left.
- Backoff - Pre-Set Torque Level Set Right & Torques At 1 1/2 Times Pre-Set Level When Turned Left.
- Lockup collar - Pre-Set Torque Level Set Right & Locking Collar Can Be Used When Turned Left.
| Model # | Drive Size (in) | Torque Range | Mode Of Operation | Hammer Ends | Handle Length | Height | Weight |
|---|---|---|---|---|---|---|---|
| BT-1L-1/4 | 1/4 | 2 in. lbs. - 50 in. lbs. | Lockup | No | 3 1/2 | 3 3/8 | 12 oz. |
| BT-1R-1/4 | 1/4 | 2 in. lbs. - 50 in. lbs. | Ratchet | No | 3 1/2 | 3 3/8 | 12 oz. |
| BT-2D-1/4 | 1/4 | 2 in. lbs. - 80 in. lbs. | Direct | Optional | 4 1/8 | 3 1/2 | 14 oz. |
| BT-2R-1/4 | 1/4 | 2 in. lbs. - 80 in. lbs. | Ratchet | Optional | 4 1/8 | 3 1/2 | 14 oz. |
| BT-2L-1/4 | 1/4 | 2 in. lbs. - 80 in. lbs. | Lockup | Optional | 4 1/8 | 3 1/2 | 14 oz. |
| BT-3-1/4 | 1/4 | 2 in. lbs. - 80 in. lbs. | Lockup collar | Optional | 4 1/8 | 6 1/2 | 15 oz. |
| BT-4D-3/8 | 3/8 | 50 in. lbs. - 250 in. lbs. | Direct | Optional | 8 3/8 | 5 3/8 | 22 oz. |
| BT-4R-3/8 | 3/8 | 50 in. lbs. - 250 in. lbs. | Ratchet | Optional | 8 3/8 | 5 3/8 | 22 oz. |
| BT-4C-3/8 | 3/8 | 50 in. lbs. - 400 in. lbs. | Click Type | Optional | 8 3/8 | 5 3/8 | 22 oz. |
| BT-4L8-3/8 | 3/8 | 50 in. lbs. - 250 in. lbs. | Click | Optional | 8 3/8 | 11 | 28.5 oz. |
| BT-4L-3/8 | 3/8 | 50 in. lbs. - 250 in. lbs. | Lockup | Optional | 8 3/8 | 5 3/8 | 28.5 oz. |
| Type 2 Cert Pre-Set Tools | |||||||
| BT-2D-3/8 | 3/8 | 2 in. lbs. - 80 in. lbs. | Direct | Optional | 4 1/8 | 3 1/2 | 14 oz. |
| BT-2R-3/8 | 3/8 | 2 in. lbs. - 80 in. lbs. | Ratchet | Optional | 4 1/8 | 3 1/2 | 14 oz. |
| BT-2L-3/8 | 3/8 | 2 in. lbs. - 80 in. lbs. | Lockup | Optional | 4 1/8 | 3 1/2 | 14 oz. |
| BT-3-3/8 | 3/8 | 2 in. lbs. - 80 in. lbs. | Lockup collar | Optional | 4 1/8 | 6 1/2 | 15 oz. |
| Item | Description | Price | ||
|---|---|---|---|---|
| 1/4 inch Drive | ||||
T-Handle Torque Drive, 2-50 lb-in / 0.2 - 5.6 Nm, Lockup | $154.85 | |||
T-Handle Torque Drive, 2-50 lb-in / 0.2 - 5.6 Nm, Ratchet | $152.90 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Direct | $222.36 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Ratchet | $222.36 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Lockup | $271.55 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Lockup collar | $242.20 | |||
| 3/8 inch Drive | ||||
T-Handle Torque Drive, 50-250 lb-in / 5.6 - 28.2 Nm, Ratchet | $519.30 | |||
T-Handle Torque Drive, 50-250 lb-in / 5.6 - 28.2 Nm, Click Type | $519.30 | |||
T-Handle Torque Drive, 50-250 lb-in / 5.6 - 28.2 Nm, Direct | $688.50 | |||
T-Handle Torque Drive, 50-250 lb-in / 5.6 - 28.2 Nm, Click | $613.15 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Lockup | $271.55 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Direct | $222.36 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Lockup collar | $242.20 | |||
T-Handle Torque Drive, 2-80 lb-in / 0.2 - 9.0 Nm, Ratchet | $222.36 | |||
