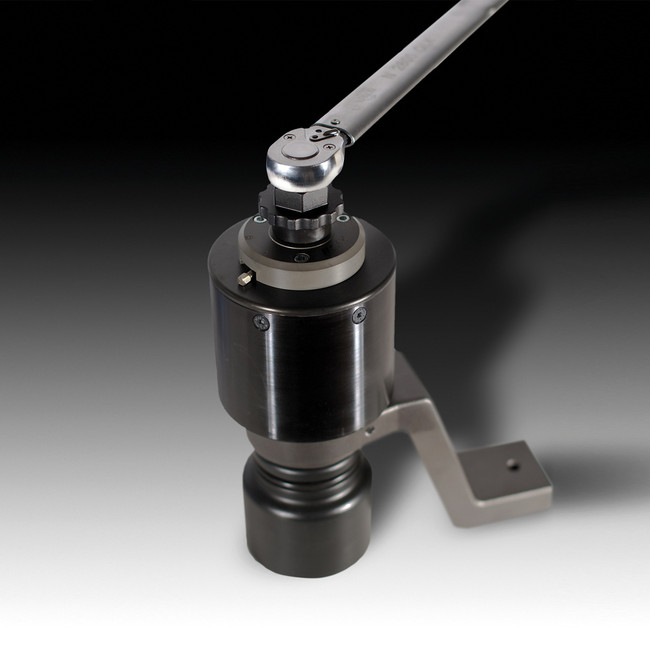

HG hand torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.
- Precision tightening and loosening of all heavy duty fastening connections
- For operation in combination with a torque wrench
- Torque Multiplication Ratio - low energy input with high torque output
- Compact design allows for operation in space-restricted applications
- Ideal tool for applications where air and electricity aren't easily accessible
- Most models (except H10 and H15) are furnished with anti-windup ratchets allowing jobs to be performed easily, efficiently and safely.
- Constructed with quality steel
- Each tool contains a torque multiplication selection chart
- Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries
- Shear pin at input drive protects gearbox in case of torque overload. (extra pins included)
- Accuracy better than +/- 5%
| Model | Drive Size Male Output | Max Torque | Torque Multiplication | Gear Ratio | Anti-Windup |
|---|---|---|---|---|---|
| H-10 | 3/4" Sq | 1033 lbf-ft / 1400 Nm / 142.8 5gf-m | 3.5:1 | 4 | No |
| H-15 | 1" Sq | 1033 lbf-ft / 1400 Nm / 142.8 5gf-m | 3.5:1 | 4 | No |
| HG-10 | 3/4" Sq | 1033 lbf-ft / 1400 Nm / 142.8 5gf-m | 3.5:1 | 4 | Yes |
| HG-15 | 1" Sq | 1033 lbf-ft / 1400 Nm / 142.8 5gf-m | 3.5:1 | 4 | Yes |
| HG-20 | 1" Sq | 2581 lbf-ft / 3500 Nm / 357 kgf-m | 11.5:1 | 16 | Yes |
| HG-30 | 1-1/2" Sq | 3687 lbf-ft / 5000 Nm / 510 kgf-m | 14.3:1 | 18 | Yes |
| HG-40 | 1-1/2" Sq | 4425 lbf-ft / 6000 Nm / 612 kgf-m | 16:1 | 21 | Yes |
| HG-50 | 1-1/2" Sq | 5900 lbf-ft / 8000 nm / 816 kgf-m | 20.5:1 | 25 | Yes |
| HG-60 | 1-1/2" Sq | 8480 lbf-ft / 11500 Nm / 1173 kgf-m | 23.2:1 | 28 | Yes |
| HG-80 | 2-1/2" Sq | 36880 lbf-ft / 50000 Nm / 5100 kgf-m | 126:1 | 180 | Yes |
Female Input 3/4" Sq drive all models
All models are supplied with a Reaction Foot, except HG-80 model is supplied with a Reaction Ring.
All models are supplied with a Reaction Foot, except HG-80 model is supplied with a Reaction Ring.
| Model | "L" inch/mm | "D2" (mm) | Spline Dia. (mm) | Weight lbs.* |
|---|---|---|---|---|
| H-10 | 7 / 180 | 85 | 41 | 8 |
| H-15 | 7.9 / 200 | 85 | 41 | 8.8 |
| HG-10 | 7 / 180 | 85 | 54 | 8 |
| HG-15 | 7.9 / 200 | 85 | 54 | 8.8 |
| HG-20 | 9.3 / 235 | 85 | 54 | 13.3 |
| HG-30 | 9.8 / 250 | 98 | 72 | 15.6 |
| HG-40 | 11 / 280 | 123 | 72 | 33 |
| HG-50 | 11 / 280 | 148 | 72 | 35.3 |
| HG-60 | 11.4 / 290 | 173 | 91 | 61.8 |
| HG-80 | 14.2 / 360 | 275 | 128.00 |
*Weights do not include reaction device.
