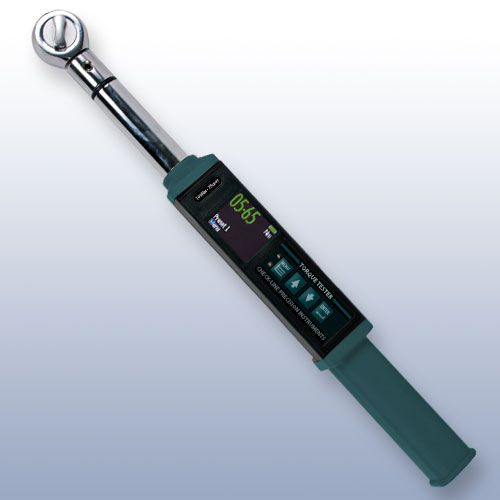

The Checkline ETW advanced Torque Wrenches are designed for high precision measurement of industrial, automotive, aerospace and many other applications.
The ETW displays Real-Time and Peak torque on a large Color OLED screen in user-selectable measuring units (lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm)
Users can program 99 target torque presets for fast and accurate torque application on repetitive tasks. The ETW provides visual and audible alerts as you approach and hit the target value.
- Includes Traceable Calibration Certificate in accordance with ISO 6789:2003
- Bi-Directional Accuracy better than 1% from 10%-100% of Capacity
- Selectable measuring units: lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm

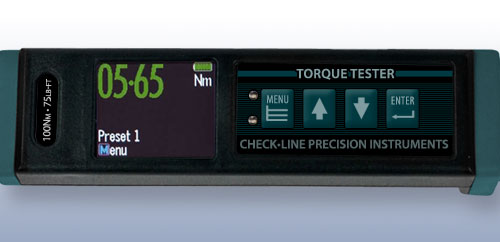

- Large Color OLED Screen. High Visibility, Warning Signals
- Selectable Languages: English, Chinese, French, German, Italian, Polish, Portuguese, Russian and Spanish
- Battery Life of over 120 hours
- USB output & data transfer / analysis software
- Memory (2000+ Measurements)
- Angle Measurement OPTIONAL, inquire
- Wireless Data Outuput OPTIONAL, inquire
- ASCII Data Outuput OPTIONAL, inquire
| Model | Range | Drive Size |
|---|---|---|
| ETW-SP-10 |
8.8 - 88 lbf-in
0.73 - 7.33 lbf-ft
10.1 - 101 kgf-cm
0.1 - 1.01 kgf-m
99.4 - 994 N-cm
0.99 - 9.94 N-m
|
1/4" (3/8" Optional), 9x12 |
| ETW-SP-20 |
17.7 - 177 lbf-in
1.47 - 14.7 lbf-ft
20.3 - 203 kgf-cm
0.2 - 2.03 kgf-m
199 - 1999.83 N-cm
1.99 - 19.9 N-m
|
1/4" (3/8" Optional), 9x12 |
| ETW-SP-50 |
44.2 - 442 lbf-in
3.68 - 36.8 lbf-ft
50.9 - 509 kgf-cm
0.5 - 5.09 kgf-m
499 - 4993.93 N-cm
4.99 - 49.9 N-m
|
3/8" (1/4" Optional), 9x12 |
| ETW-SP-100 |
88.8 - 888 lbf-in
7.4 - 74 lbf-ft
102 - 1023.09 kgf-cm
1.02 - 10.2 kgf-m
N/A
10 - 100 N-m
|
3/8" (1/4" Optional), 9x12 |
| ETW-SP-200 |
180 - 1800 lbf-in
15 - 150 lbf-ft
207 - 2073.82 kgf-cm
2.07 - 20.7 kgf-m
N/A
20.3 - 203 N-m
|
1/2", 14x18 |
| ETW-SP-340 |
300 - 3000 lbf-in
25 - 250 lbf-ft
345 - 3456.37 kgf-cm
3.45 - 34.5 kgf-m
N/A
33.8 - 338 N-m
|
1/2", 14x18 |
| ETW-SP-600 |
531 - 5316 lbf-in
44.3 - 443 lbf-ft
612 - 6124.69 kgf-cm
6.12 - 61.2 kgf-m
N/A
60 - 600 N-m
|
3/4", 24x32 |
| ETW-SP-800 |
708 - 7080 lbf-in
59 - 590 lbf-ft
815 - 8157.04 kgf-cm
8.15 - 81.5 kgf-m
N/A
79.9 - 799 N-m
|
3/4", 24x32 |
| ETW-SP-1000 |
888 - 8880 lbf-in
74 - 740 lbf-ft
N/A
10.2 - 102 kgf-m
N/A
100 - 1003.31 N-m
|
3/4", 24x32 |
| ETW-SP-1500 |
N/A
110 - 1100 lbf-ft
N/A
15.2 - 152 kgf-m
N/A
149 - 1491.4 N-m
|
1", 27x36 |
| ETW-SP-2000 |
N/A
147 - 1475 lbf-ft
N/A
20.3 - 203 kgf-m
N/A
199 - 1999.83 N-m
|
1", 27x36 |
|
|

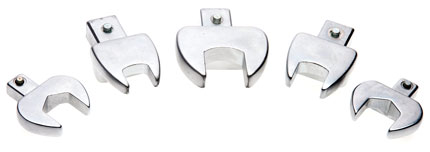

Open end spanner heads are available as options in sizes 1/4 inch to 1 inch / 7-41mm
*The ETW-XX-1000 and ETW-XX-2000 have fixed heads and are not compatible with the open end spanners.

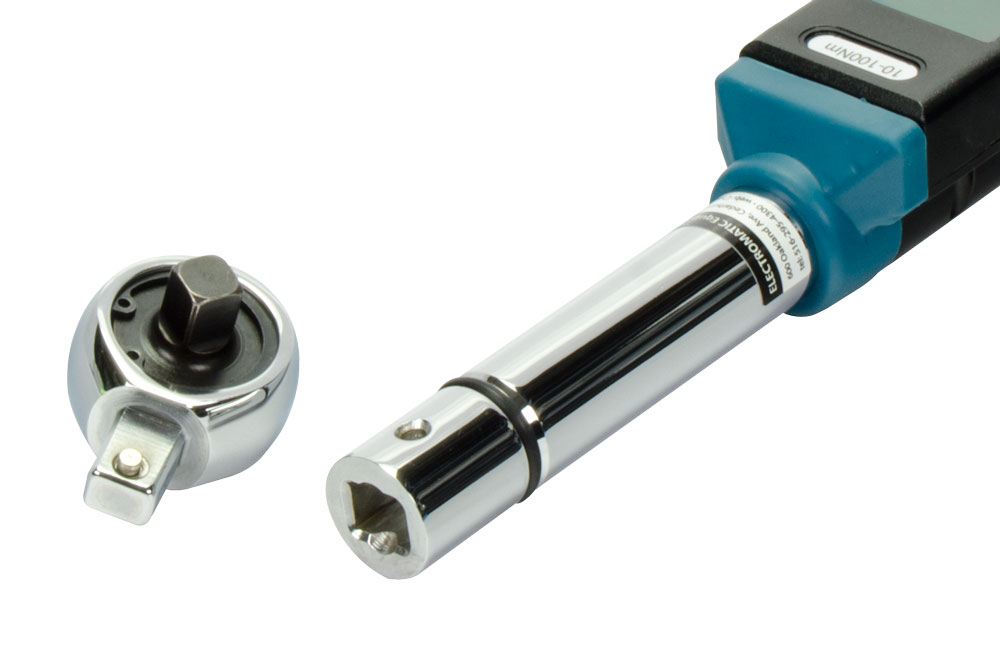

ETW models up to 100 Nm use heads with 9x12mm tangs, 200 Nm and above use 14x18mm tangs.
| Accuracy | ±1% (Of indicated) 10 - 100% of capacity (readings start at 5%) |
| Sampling Frequency | 500 Hz (500 samples/sec) |
| Display Update Rate | 4 Hz (4 times/sec) |
| Memory | 6000 readings |

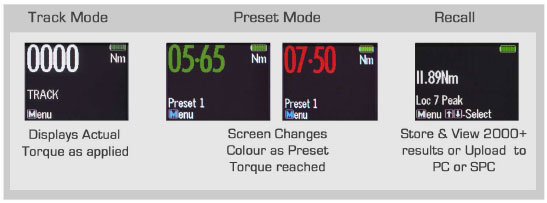

| Operation Mode | Peak hold/ Track /Preset |
| Unit Selection | Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in |

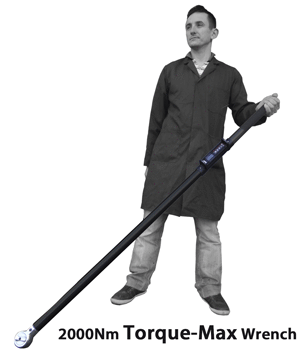

| Length | 10-100 Nm: 0.4m 200-340 Nm: 0.63m 600-800 Nm: 1.25m 1000 Nm: 1.35m 1500-2000 Nm: 1.65m |

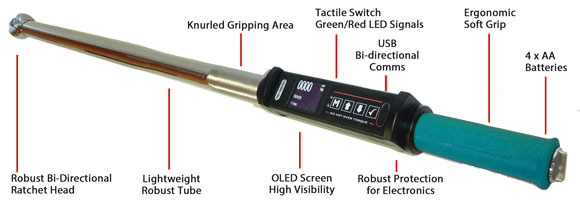

| Head Type | Robust Bi-Directional Ratchet |
| Battery | 4x AA |
| Battery Life | 120 Hours |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Warranty | 1 Years |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Torque Wrench with USB Output, Capacity 88 lb-in / 10 Nm, 1/4 In Drive | $799.00 | |||
ETW-SP-20 | Digital Torque Wrench with USB Output, Capacity 177 lb-in / 20 Nm, 1/4 In Drive | $799.00 | ||
Digital Torque Wrench with USB Output, Capacity 442 lb-in / 50 Nm, 3/8 In Drive | $799.00 | |||
Digital Torque Wrench with USB Output, Capacity 74 lb-ft / 100 N-m, 3/8 In Drive | $799.00 | |||
Digital Torque Wrench with USB Output, Capacity 150 lb-ft / 200 Nm, 1/2 In Drive | $849.00 | |||
Digital Torque Wrench with USB Output, Capacity 250 lb-ft / 340 Nm, 1/2 In Drive | $849.00 | |||
Digital Torque Wrench with USB Output, Capacity 444 lb-ft / 600 Nm, 3/4 In Drive | $1,695.00 | |||
Digital Torque Wrench with USB Output, Capacity 590 lb-ft / 800 Nm, 3/4 In Drive | $1,995.00 | |||
Digital Torque Wrench with USB Output, Capacity 740 lb-ft / 1000 N-m, 3/4 In Drive | $1,995.00 | |||
ETW-SP-1500 | Digital Torque Wrench with USB Output, Capacity 1100 lb-ft / 1500 Nm, 1 In Drive | $2,795.00 | ||
Digital Torque Wrench with USB Output, Capacity 1475 lb-ft / 2000 Nm, 1 In Drive | $2,795.00 | |||
| Accessories | ||||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||
ETW-14R | 1/4" Ratchet Head for ETW Wrench with 9x12 Drive | $35.00 | ||
ETW-38R | 3/8" Ratchet Head for ETW Wrench with 9x12 Drive | $35.00 | ||
