3 Models
DTF-50: Capacity: 53 in-lb / 4.4 lb-ft / 6 N-m / 61 kg-cm
DTF-100: Capacity: 106 in-lb / 8.8 lb-ft / 12 N-m / 122 kg-cm
DTF-175: Capacity: 177 in-lb / 14.75 lb-ft / 20 N-m / 204 kg-cm
DTF-50: Capacity: 53 in-lb / 4.4 lb-ft / 6 N-m / 61 kg-cm
DTF-100: Capacity: 106 in-lb / 8.8 lb-ft / 12 N-m / 122 kg-cm
DTF-175: Capacity: 177 in-lb / 14.75 lb-ft / 20 N-m / 204 kg-cm
The new Check-Line DTF Low Profile Digital Torque Wrench is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its low profile design and 1/4" female hex drive with ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).
The DTF features 9 programmable target set points that indicate the desired torque value with red and green LEDs and audible beep.
- Includes Factory Calibration Certificate (Click for sample)
- Displays in-lb, lb-ft, N-m, Kg-cm units (User selectable)
- CW and CCW operation
- Peak or Real-Time (track) mode (User Selectable)
-
9 Programmable Target Set-points with audible and LED indicators
At 90% of Target, Green LED illuminates with slow audible beep
At 100% of Target, Green & Red LEDs illuminate with continuous beep - CE Certified

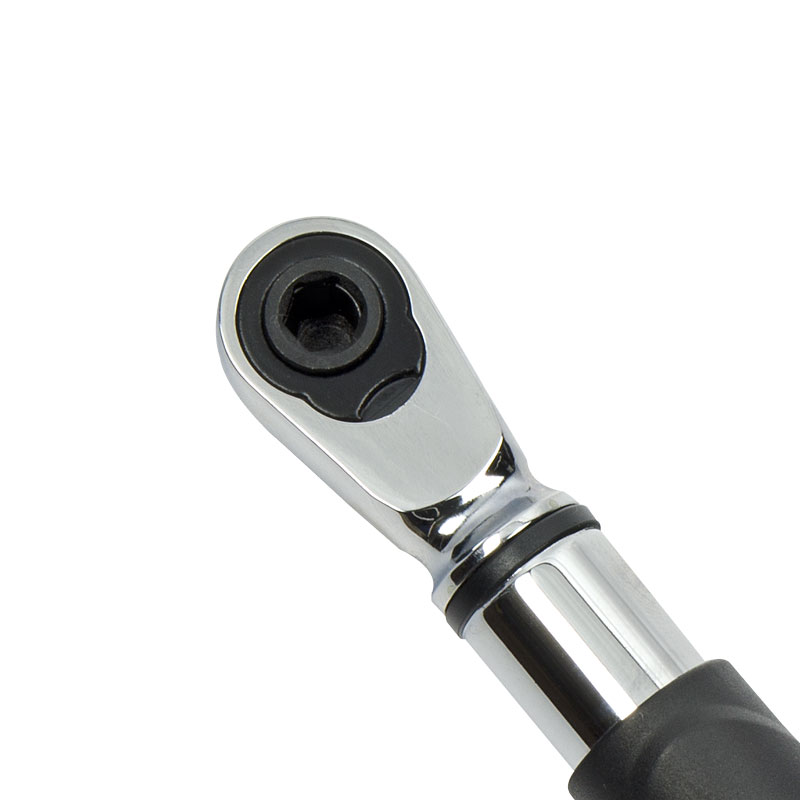

- Ratcheting Head
| Model | Measuring Range | Resolution |
|---|---|---|
| DTF-50 | 2.65 - 53.09 lb-in 0.221 - 4.424 lb-ft 0.300 - 6.000 Nm 3.06 - 61.22 kg-cm | 0.01 lb-in 0.001 lb-ft 0.001 Nm 0.01 kg-cm |
| DTF-100 | 5.3 - 106.2 lb-in 0.44 - 8.85 lb-ft 0.60 - 12.00 Nm 6.1 - 122.4 kg-cm | 0.1 lb-in 0.01 lb-ft 0.01 Nm 0.1 kg-cm |
| DTF-175 | 8.8 - 177.0 Lb-in 1.0 - 20.00 Nm 0.74 - 14.75 Lb-ft 10.2 - 204.1 Kg-cm | 0.1 Lb-in 0.01 Lb-ft 0.01 Nm 0.1 Kg-cm |
Accuracy: CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity
The DTF is supplied as a complete kit including the wrench, 1/4" Male Hex to 1/4" Male Sq drive adapter, 1 AAA battery, instruction manual and calibration cert in a fitted plastic carrying case.

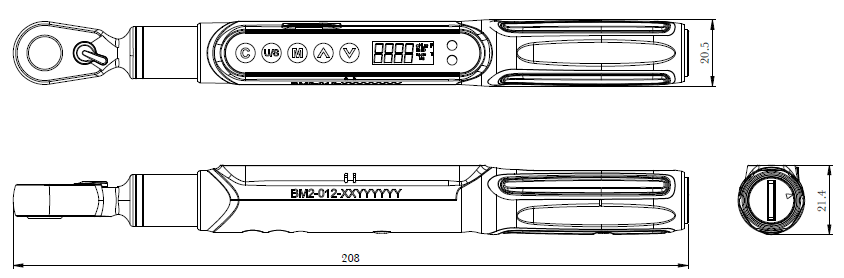

Dimensions in MM
| Accuracy | CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity |
| Operation Mode | Peak hold/ Track |
| Unit Selection | ft-lb, in-lb, N-m, Kg-cm |

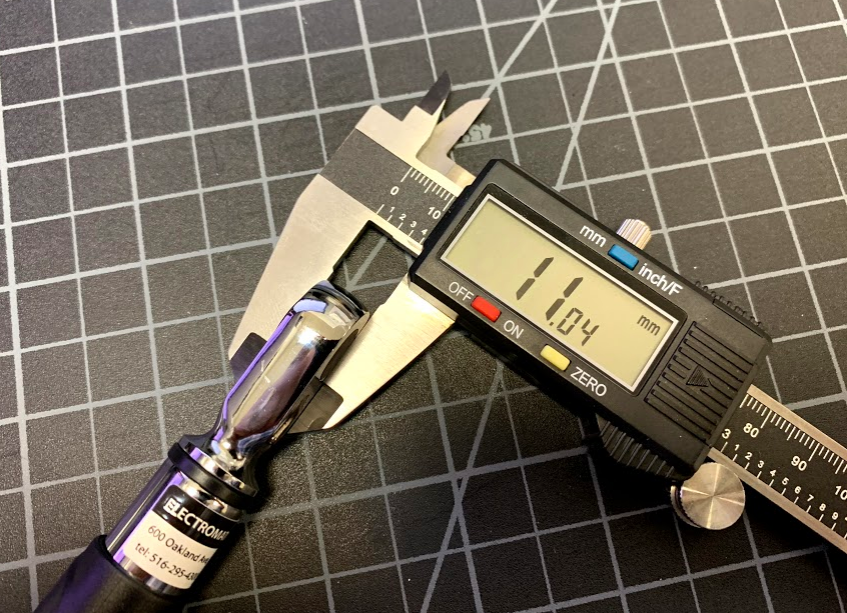

| Head Dimensions | Width: 0.75 / 19.2mm at (widest location) Height: 0.45" / 11.4mm |
| Length | 8 inches / 20 mm |
| Head Type | Lever type Ratchet |
| Battery | 1 AAA |
| Battery Life | 12 Continuous Hours 1 Year Standby |
| Model Code in Manual | DME2-012CN |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Warranty | 1 Year |
| Zero Function | Press the "C" key. The display will clear then it will return to the "target value" (preset) |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Torque Wrench, Capacity 53 lb-in / 6 Nm, 1/4 In Female Hex Drive | $395.00 | |||
Digital Torque Wrench, Capacity 106 lb-in / 12 Nm, 1/4 In Female Hex Drive | $395.00 | |||
Digital Torque Wrench, Capacity 177 lb-in / 20 Nm, 1/4 In Female Hex Drive | $395.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate (Per Wrench) | $100.00 | ||
ISO-17025-TW | ISO-17025 Calibration Certification (Per Wrench) | $160.00 | ||
DTL-DTF-BC | Replacement Battery Cap for DTL and DTF Torque Wrenches | $3.00 | ||
