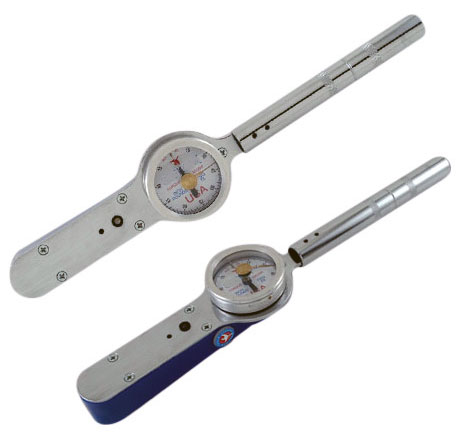

TS Series dial torque wrenches are designed for precision torque measurement and application. Built with chrome plated high alloy steel, TS series wrenches are rugged and durable. These tools feature a torsional bar system manufactured from a special molybdenum alloy steel that is electronically heat treated to exacting standards. Mated to these exclusive torsional elements are precision Swiss made dial indicators resulting in uncompromised accuracy, even after years of service. TS Series dials are uncomplicated and simple to read thereby eliminating errors so common in other brands.
Standard accuracy is +/- 3% of indicated value
Conforms to Federal Specification GGG-W-00686C.
All tools are manufactured in the USA and are shipped with NIST certs.
- Made in the USA
- Includes calibration certificate
- Can provide Dual Scale English/Metric units as an option (Ft-lbs/N-m)
| Model | Torque Range | Dial Graduations | Drive Size | Overall Length | Weight |
|---|---|---|---|---|---|
| TSQ-30 | 0 - 30 in-lbs | 0.5 in-lbs | 1/4" | 10.0" | 0.75 lbs |
| TSQ-75 | 0 - 75 in-lbs | 1 in-lbs | 1/4" | 10.0" | 0.75 lbs |
| TSQ-100 | 0 - 100 in-lbs | 2 in-lbs | 3/8" | 10.0" | 0.75 lbs |
| TSQ-150 | 0 - 150 in-lbs | 2.5 in-lbs | 3/8" | 10.0" | 0.75 lbs |
| TSQ-300 | 0 - 300 in-lbs | 5 in-lbs | 3/8" | 12.5" | 1.25 lbs |
| TSQ-600 | 0 - 600 in-lbs | 10 in-lbs | 3/8" | 12.5" | 1.25 lbs |
| TSF-25 | 0 - 25 ft-lbs | 0.5 ft-lbs | 3/8" | 12.5" | 1.25 lbs |
| TSF-50-3/8 | 0 - 50 ft-lbs | 1 ft-lbs | 3/8" | 12.5" | 1.25 lbs |
| TSF-50-1/2 | 0 - 50 ft-lbs | 1 ft-lbs | 1/2" | 12.5" | 1.25 lbs |
| TSF-100 | 0 - 100 ft-lbs | 2 ft-lbs | 1/2" | 18.5" | 2.50 lbs |
| TSF-150 | 0 - 150 ft-lbs | 5 ft-lbs | 1/2" | 18.5" | 2.50 lbs |
| TSF-175 | 0 - 175 ft-lbs | 5 ft-lbs | 1/2" | 18.5" | 2.50 lbs |
| TSF-200 | 0 - 200 ft-lbs | 5 ft-lbs | 1/2" | 18.5" | 2.50 lbs |
| TSF-250-1/2 | 0 - 250 ft-lbs | 5 ft-lbs | 1/2" | 21.0" | 2.50 lbs |
| TSF-250-3/4 | 0 - 250 ft-lbs | 5 ft-lbs | 3/4" | 23.0" | 6.50 lbs |
| TSF-300 | 0 - 300 ft-lbs | 10 ft-lbs | 3/4" | 30.0" | 6.50 lbs |
| TSF-350 | 0 - 350 ft-lbs | 10 ft-lbs | 3/4" | 30.0" | 6.50 lbs |
| TSF-420 | 0 - 420 ft-lbs | 10 ft-lbs | 3/4" | 40.0" | 9.00 lbs |
| TSF-600 | 0 - 600 ft-lbs | 20 ft-lbs | 3/4" | 40.0" | 9.00 lbs |
NOTE: INLINE RATCHET available on TSF-250-3/4, TSF-300, TSF-350, TSF-420 and, TSF-600
The TS Series comes complete with the gauge and calibration certificate in a carrying case.
| Accuracy | ± 3% of indicated value |
| Item | Description | Price | ||
|---|---|---|---|---|
Dial Torque Wrench, 0-30lb-in, 1/4" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-75lb-in, 1/4" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-100lb-in, 3/8" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-150lb-in, 3/8" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-300lb-in, 3/8" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-600lb-in, 3/8" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-25lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-50lb-ft, 3/8" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-50lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $478.65 | |||
Dial Torque Wrench, 0-100lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $551.65 | |||
Dial Torque Wrench, 0-150lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $551.65 | |||
Dial Torque Wrench, 0-175lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $551.65 | |||
Dial Torque Wrench, 0-200lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $551.65 | |||
Dial Torque Wrench, 0-250lb-ft, 1/2" Drive with Memory Needle and Carrying Case | $714.60 | |||
Dial Torque Wrench, 0-250lb-ft, 3/4" Drive with Memory Needle and Carrying Case | $875.95 | |||
Dial Torque Wrench, 0-300lb-ft, 3/4" Drive with Memory Needle and Carrying Case | $995.65 | |||
Dial Torque Wrench, 0-350lb-ft, 3/4" Drive with Memory Needle and Carrying Case | $1,083.85 | |||
Dial Torque Wrench, 0-420lb-ft, 3/4" Drive with Memory Needle and Carrying Case | $1,516.05 | |||
Dial Torque Wrench, 0-600lb-ft, 3/4" Drive with Memory Needle and Carrying Case | $1,516.05 | |||
| Accessories | ||||
Metric Dial | Metric Dial in place of Imperial units | $52.35 | ||
T2-CERT | Upgrade to long form calibration cert with data (per item) | $100.00 | ||
