5 Ranges Available
DIW-4W Capacity: 35 lb-in / 4 N-m, 1/4" dr
DIW-15 Capacity: 130 lb-in / 15 N-m, 1/4" dr
DIW-20 Capacity: 180 lb-in / 20 N-m, 3/8" dr
DIW-75 Capacity: 55 lb-ft / 75 N-m, 3/8" dr
DIW-120 Capacity: 87 lb-ft / 120 N-m, 1/2" dr

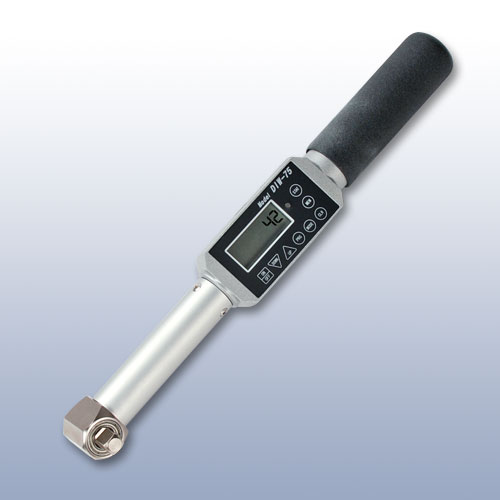

The DIW is a torque measuring manual wrench designed for verifying application or removal torque of bolts. The wrench head swivels 300° and can be used in tight places. You'll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production. Wrench head swivels 300°
DIW-4W Capacity: 35 lb-in / 4 N-m, 1/4" dr
DIW-15 Capacity: 130 lb-in / 15 N-m, 1/4" dr
DIW-20 Capacity: 180 lb-in / 20 N-m, 3/8" dr
DIW-75 Capacity: 55 lb-ft / 75 N-m, 3/8" dr
DIW-120 Capacity: 87 lb-ft / 120 N-m, 1/2" dr
The DIW is a torque measuring manual wrench designed for verifying application or removal torque of bolts. The wrench head swivels 300° and can be used in tight places. You'll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production. Wrench head swivels 300°
This tester has an accuracy of ±0.5%, ±1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the USB port.
Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive.
- Includes 3-Point Certificate NIST calibration Certificate, ISO-17025 Cert Optional
- Drive-Centered Torque Sensor apply load anywhere on the tester, not just the load point, and achieve consistent results
- Wrench head swivels 300°

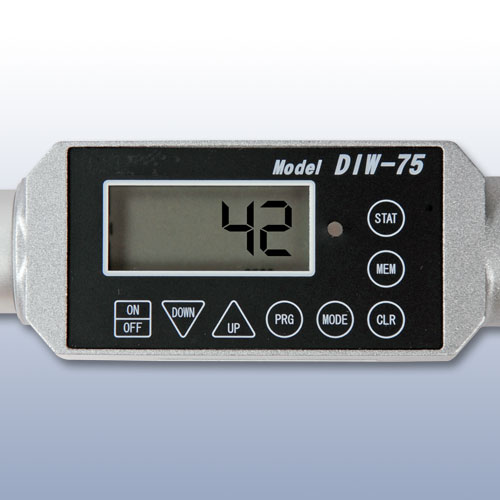

- Displays lbf-in, lbf-ft, Kgf-cm and N-m (selectable)
- Peak, Real Time and Peak Down measuring mode (selectable)
- 800 data memory for recall or for SPC download
- Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing
- Both CW and CCW operation

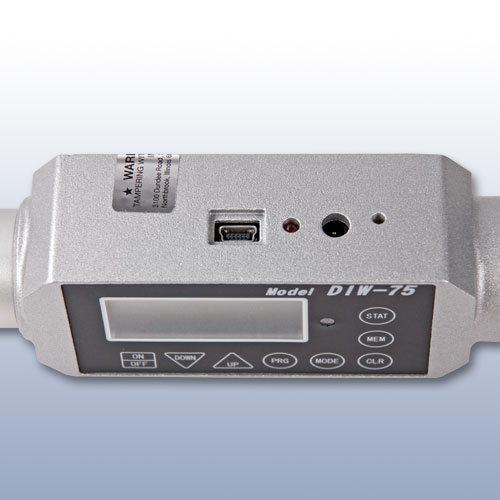

- USB output for SPC capability
- Runs on internal NiCad batteries (8 hour use)
- Ergonomic, light weight, rugged metal construction
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- Stepless one-way clutches are included with DIW-15, DIW-20 and DIW-75
- 1 Year Warranty
| Model | Capacity | Drive Size |
|---|---|---|
| DIW-4W | 0.20 - 35.00 lbf-in 0.2 - 40.00 kgf-cm 0.020 - 4.00 N-m | 1/4" |
| DIW-15 | 3.0 - 130.0 lbf-in 3.0 - 150.0 kgf-cm 0.30 - 15.00 N-m | 1/4" |
| DIW-20 | 3.0 - 180.0 lbf-in 3.0 - 200.0 kgf-cm 0.30 - 20.00 N-m | 3/8" |
| DIW-75 | 3.0 - 660.0 lbf-in 0.30 - 55.00 lbf-ft 3.0 - 750.0 kgf-cm 0.30 - 75.00 N-m | 3/8" |
| DIW-120 | 30 - 1040 lbf-in 3.0 - 87.0 lbf-ft 30 - 1200 kgf-cm 3.0 - 120.0 N-m | 1/2" |
Accuracy ±0.5% F.S., ±1 LSD
| Accuracy | ±0.5% FS, ±1 LSD |
| Sampling Frequency | 100 Hz (100 samples/sec) |
| Display Update Rate | 5 Hz (5 times/sec) |
| USB Output | 180 data/sec |
| Memory | 400 data memory for recall or for SPC download |
| Warranty | 1-year |

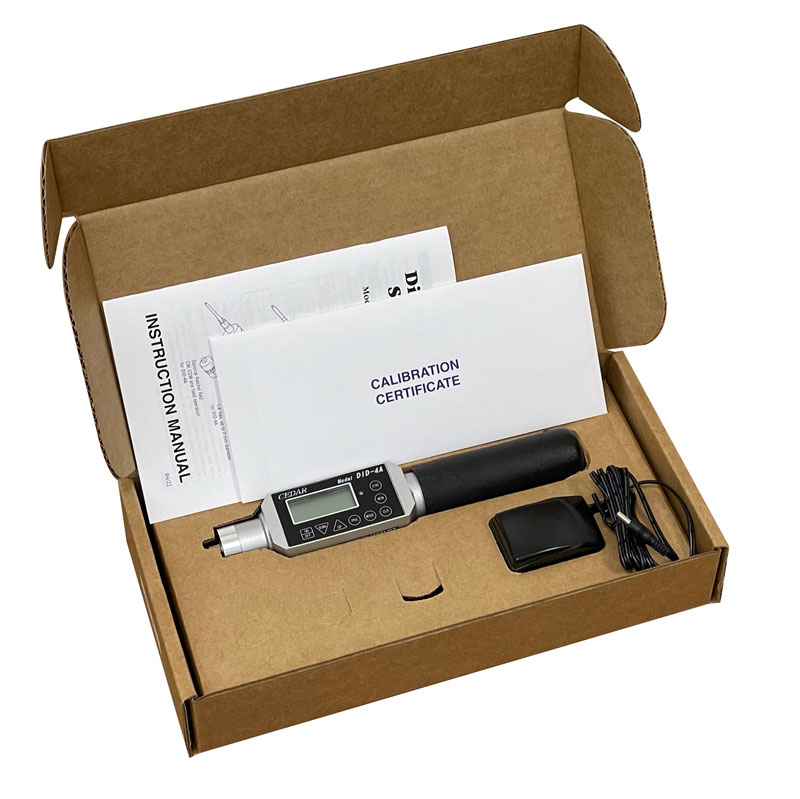

DIW Wrenches are supplied in a fitted cardboard box with an AC adapter/charger, operating manual, and calibration certificate.
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Torque Wrench with USB Output, 35 lb-in / 4 N-m Capacity, 1/4in drive | $1,254.00 | |||
Digital Torque Wrench with USB Output, 130 lb-in / 15 N-m Capacity, 1/4in drive | $1,254.00 | |||
Digital Torque Wrench with USB Output, 180 lb-in / 20 N-m Capacity, 3/8in drive | $1,254.00 | |||
Digital Torque Wrench with USB Output, 55 lb-ft / 75 N-m Capacity, 3/8in drive | $1,573.00 | |||
Digital Torque Wrench with USB Output, 87 lb-ft / 120 N-m Capacity, 1/2in drive | $1,595.00 | |||
| Accessories | ||||
ISO-17025 | ISO-17025 Accredited Calibration with Certificate | $220.00 | ||
Data Acquisition Software for Torque Testers with RS-232 or USB ports | $242.00 | |||
SS-209 | USB Output Cable for DIW Torque Driver | $33.00 | ||
6A-061WP12 | Power Adapter for DIW (formerly 3A-066WP12-120) | $60.50 | ||
DIW-BATT | Replacement Battery for DIW Torque Wrench | $75.00 | ||
CA-150 | One-Way Stepless Clutch for DIW-15, Clockwise | $125.00 | ||
CAR-150 | One-Way Stepless Clutch for DIW-15, Counter Clockwise | $125.00 | ||
CA-200 | One-Way Stepless Clutch for DIW-20, Clockwise | $125.00 | ||
CAR-200 | One-Way Stepless Clutch for DIW-20, Counter Clockwise | $125.00 | ||
CA-700 | One-Way Stepless Clutch for DIW-75, Clockwise | $154.00 | ||
CAR-700 | One-Way Stepless Clutch for DIW-75, Counter Clockwise | $181.50 | ||
RA-700 | Ratchet Clutch, 700 lbf-in, 3/8 inch for DIW-20 or DIW-75 | $135.00 | ||
RA-1000 | Ratchet Clutch, 1000 lbf-in, 1/2 inch drive for DIW-120 | $175.00 | ||

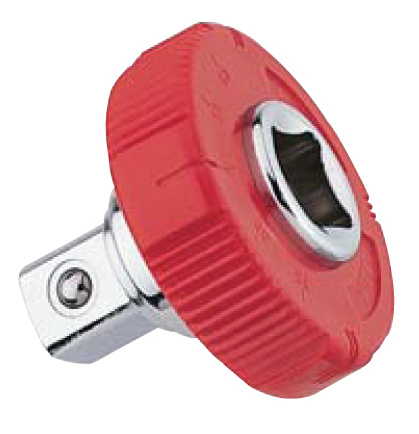

BE2-Q | Quick Spinner - 1/4" sq. - 1/4" sq. | $38.50 | ||
BE3-Q | Quick Spinner - 3/8" sq. - 3/8" sq. | $38.50 | ||
BE4-Q | Quick Spinner - 1/2" sq. - 1/2" sq. | $38.50 | ||
