TT02 Torque Tool Tester
4 ranges up to 100 lb-in

Made in USA

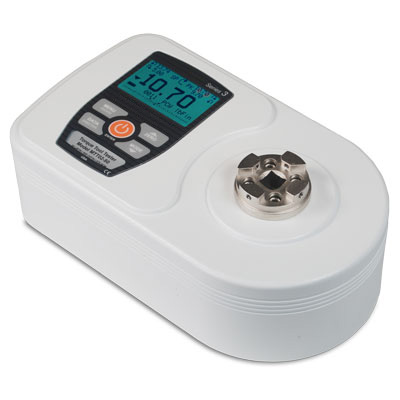

Series TT02 torque tool tester general view.
Click images to enlarge.

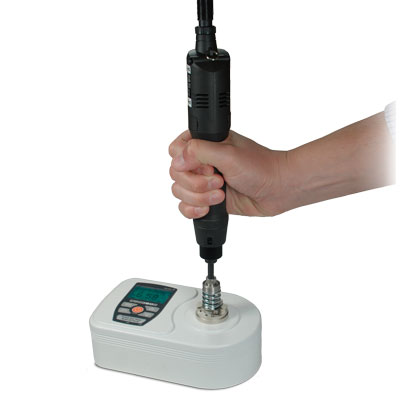

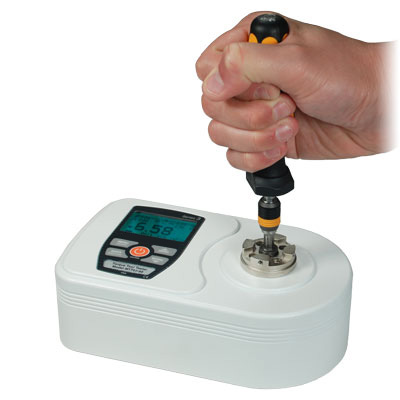

Series MTT02 Torque Tool Testers present a simple and accurate solution for testing manual and electric torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions and also calculates 1st and 2nd peaks, useful for click-type tools.

A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

Series TT02 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Note: Not for use with impact tools.

Features

  • Includes NIST Traceable Calibration Certificate
  • First / second peak capture for CW and CCW directions
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • USB, RS-232, Mitutoyo, and analog outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • 3/8" square receptacle accommodates common bits and attachments
  • 1,000-point data memory with statistics and outputs
  • Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
  • Password protection prevents unauthorized changes
  • 5 selectable units of measurement
  • Battery or AC operation

Torque Ranges

Model Capacity / Resolution
ozFin lbFin lbFft Ncm Nm
TT02-12 192
0.1
12
0.005
1
0.0005
135
0.1
1.35
0.001
TT02-25 400
0.2
25
0.01
2
0.001
290
0.2
2.9
0.002
TT02-50 800
0.5
50
0.02
4
0.002
570
0.5
5.7
0.005
TT02-100 1600
1
100
0.05
4
0.005
1150
0.5
11.5
0.005

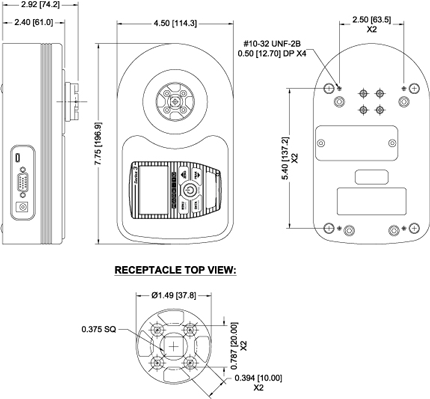

Dimensions

Related Products

Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TT-3000 Torque Analyzer
Click image for more info
Torque Analyzer - AWS-3000
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
MTMDP Torque Tester
Click image for more info
MTM
Multi-Range Torque Tester AWS
- Available with 2, 3 or 4 torque transducers
- LED Indicator Shows Active Transducer

Specifications

Accuracy±0.3% of full scale
Sampling rate7,000 Hz
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement unitsozFin, lbFin, lbFft, Nm, Ncm
OutputsUSB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:±1V DC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable Settings1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload150% of full scale (display shows "OVER" at 110% and above)
Weight5.8 lb [2.6 kg]
Environmental Requirements40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty3 Years

Downloads

Buy Now

Item Description Price
MTT02-12 Torque Tool Tester, Capacity: 12 lb-in, 135 Ncm
$1,420.25
MTT02-25 Torque Tool Tester, Capacity: 25 lb-in, 290 Ncm
$1,420.25
MTT02-50 Torque Tool Tester, Capacity: 50 lb-in, 570 Ncm
$1,420.25
MTT02-100 Torque Tool Tester, Capacity: 100 lb-in, 11 Nm
$1,420.25
Accessories
NISTCAL-10PT
Upgrade Calibration Cert with 10 Data Points (CERT)
$85.00
ST001

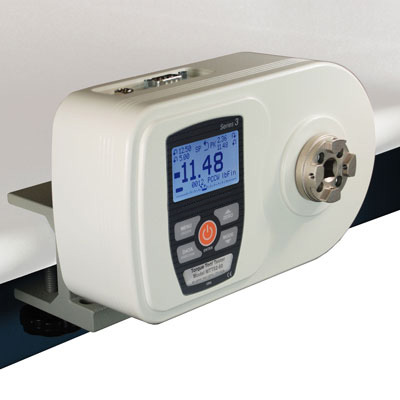

Bench mounting bracket for TT02 / TORQ-T
$170.00
ST002

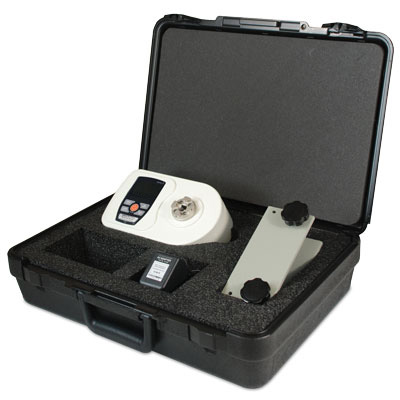

Carrying case for TT02
$200.00
AC1066-1
Rundown fixture, SOFT JOINT, for TT02
$250.00

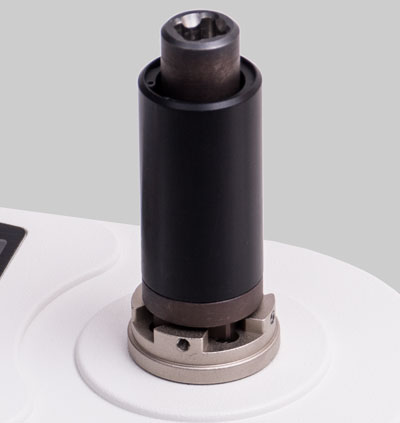

AC1066-2
Rundown fixture, HARD JOINT, for TT02
$250.00
MESUR gauge Load & Travel Analysis Software - NO LONGER AVAILABE, Order Mesurgage Plus - Please contact us for pricing and availability.
$
AC1109
Serial Output Cable DB9 for M10 Force / Torque Gauges, old PN 09-1163
$80.00
AC1118
Spare rechargeable battery for M-10 Gauges, old PN 08-1026
$20.00

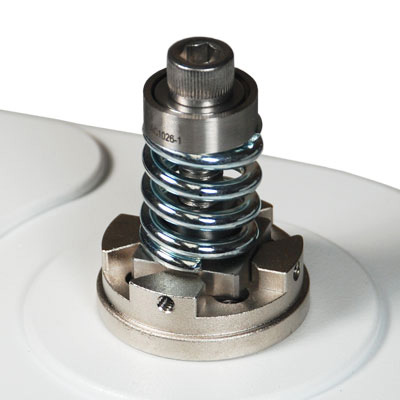

AC1026-1
Replaced by AC1066-1
$

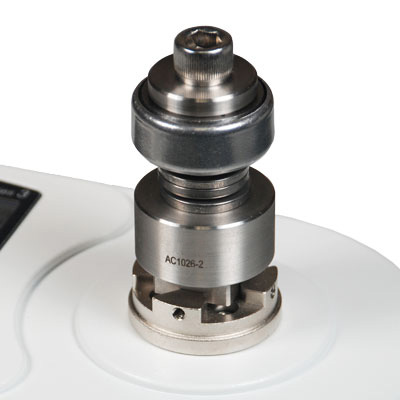

AC1026-2
Replaced by AC1066-2
$
