TST - Vertical Stand
TSTH - Horizontal Stand

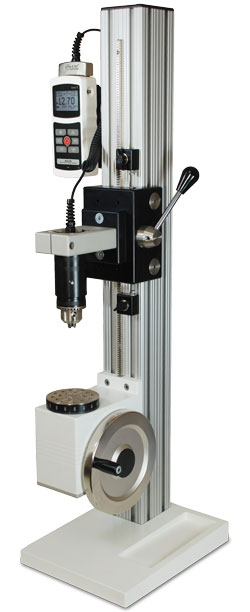

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.
TSTH - Horizontal Stand
The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.
Images show TST with Optional Equipment.
The TST is a test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.
For cap torque testing applications we offer a complete system including torque sensor, display and appropriate test fixtures; refer to this link .....CAP-TSTM.
- Maximum torque: 100 lbin (11.3 Nm)
- Maximum angular travel: no limit
- Travel rate: 12°/ wheel rev.
- Adjustable travel stops
- Smooth hand wheel operation
- Lever operated slider for engaging and disengaging samples
| Maximum Torque | 100 lbin (11.3 Nm) |
| Maximum Angular Travel | No limit |
| Maximum Slider Travel | 15.5" (394 mm) |
| Throat | 4.10" (104 mm) |
| Angular Rate | 12°/ wheel rev. |
| Slider Travel Rate | 1.047" (26.6 mm)/lever rev |
| Item | Description | Price | ||
|---|---|---|---|---|
TSTH | Manual Torque Test Stand - Horizontal | $3,087.50 | ||
| Accessories | ||||
TST001 | Digital angle indicator for TST-Series stands | $1,135.00 | ||
TSF002 | Horizontal/wall mounting kit for Series TSF and TST stands | $245.00 | ||
SP-2736-12 | Column extension, 12 in. / 305 mm, TSTM-DC / TSTMH-DC | $360.00 | ||
SP-2736-24 | Column extension, 24 in. / 610 mm, TSTM-DC / TSTMH-DC | $550.00 | ||
SP-2736-42 | Column extension, 42 in. / 1065 mm, TSTM-DC / TSTMH-DC | $855.00 | ||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
Notes
Column extension $125.00 base + $15.00 per inch
Column extension $125.00 base + $15.00 per inch
The TST / TSTH now includes the AC1004 adjustable gauge mounting plate (for BGI or MGT).
The TST / TSTH is supplied with a wrench set.
