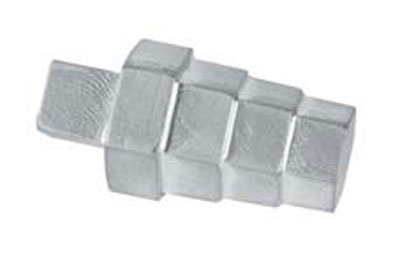

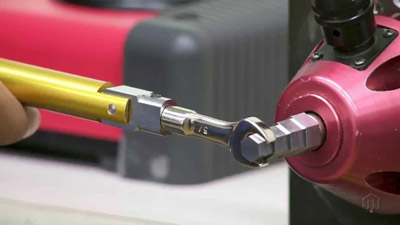

Torque drive hex adapters convert female square drives to male hex drives for testing open end and spanner head torque wrenches. Popular for 5/16" SMA wrenches.

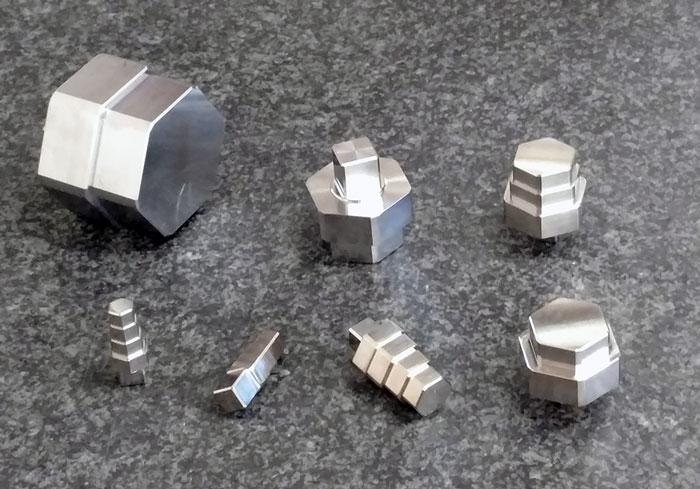

Custom sizes available, inquire.

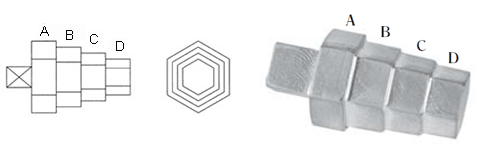

| Model | Male Drive | A | B | C | D |
|---|---|---|---|---|---|
| 061500 | 1/4 | 3/4 | 11/16 | 5/8 | 9/16 |
| 061501 | 1/4 | 1/2 | 7/16 | 3/8 | 5/16 |
| 061527 | 1/4 | 1/2 | 3/8 | 1/4 | 1/8 |
| 061502 | 1/4 | 1/4 | 7/32 | 3/16 | 1/8 |
| 061503 | 1/4 | 19mm | 17mm | 16mm | 14mm |
| 061504 | 1/4 | 13mm | 12mm | 11mm | 10mm |
| 061505 | 1/4 | 9mm | 8mm | 7mm | 6mm |
| 061529 | 1/4 | 9mm | 7mm | 5mm | 3mm |
| 061528 | 1/4 | 8mm | 6mm | 4mm | 2mm |
| 061506 | 1/4 | 5.5mm | 5mm | 4.5mm | 4mm |
| 061537 | 3/8 | 1 | 7/8 | 3/4 | 5/8 |
| 061524 | 3/8 | 3/4 | 11/16 | 5/8 | 9/16 |
| 061531 | 3/8 | 9/16 | 7/16 | 5/16 | 3/16 |
| 061525 | 3/8 | 1/2 | 7/16 | 3/8 | 5/16 |
| 061530 | 3/8 | 1/4 | 7/32 | 3/16 | 1/8 |
| 061543 | 3/8 | 19mm | 17mm | 16mm | 14mm |
| 061542 | 3/8 | 17mm | 15mm | 13mm | 11mm |
| 061541 | 3/8 | 16mm | 14mm | 12mm | 10mm |
| 061540 | 3/8 | 13mm | 12mm | 11mm | 10mm |
| 061539 | 3/8 | 9mm | 8mm | 7mm | 6mm |
| 061538 | 3/8 | 5.5mm | 5mm | 4.5mm | 4mm |
| Item | Description | Price | ||
|---|---|---|---|---|
1/4" Hex Step Adapter (3/4, 11/16, 5/8 & 9/16) | $330.00 | |||
1/4" Hex Step Adapter (5/16, 3/8, 7/16 & 1/2) | $330.00 | |||
1/4" Hex Step Adapter (1/4, 7/32, 3/16, 1/8) | $330.00 | |||
1/4" Hex Step Adapter (19, 17, 16 & 14mm) | $330.00 | |||
1/4" Hex Step Adapter (13, 12, 11 & 10mm) | $330.00 | |||
1/4" Hex Step Adapter (9, 8, 7 & 6mm) | $330.00 | |||
1/4" Hex Step Adapter (5.5, 5, 4.5 & 4mm) | $330.00 | |||
1/4" Hex Step Adapter (1/2, 3/8, 1/4 & 1/8) | $330.00 | |||
1/4" Hex Step Adapter (8, 6, 4 & 2mm) | $330.00 | |||
1/4" Hex Step Adapter (9, 7, 5 & 3mm) | $330.00 | |||
3/8" Hex Step Adapter (17, 15, 13 & 11mm) | $340.00 | |||
3/8" Hex Step Adapter (3/4, 11/16, 5/8 & 9/16) | $340.00 | |||
3/8" Hex Step Adapter (1/2, 7/16, 3/8 & 5/16) | $340.00 | |||
3/8" Hex Step Adapter (1/4, 7/32, 3/16 & 1/8) | $340.00 | |||
3/8" Hex Step Adapter (9/16, 7/16, 5/16 & 3/16) | $340.00 | |||
3/8" Hex Step Adapter (1, 7/8, 3/4 & 5/8) | $455.00 | |||
3/8" Hex Step Adapter (5.5, 5, 4.5 & 4mm) | $340.00 | |||
3/8" Hex Step Adapter (9, 8, 7 & 6mm) | $425.00 | |||
3/8" Hex Step Adapter (13, 12, 11 & 10mm) | $340.00 | |||
3/8" Hex Step Adapter (16, 14, 12 & 10mm) | $340.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
