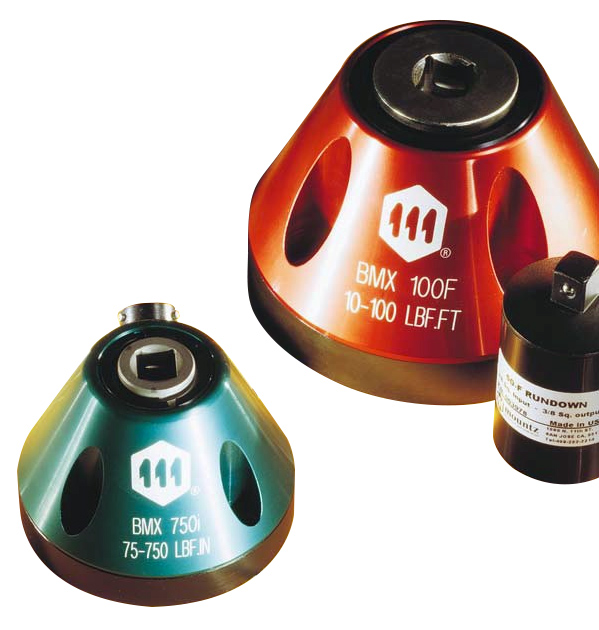

The BMX torque transducer is designed to meet the requirement of testing multiple torque ranges for various torque tools used in production, maintenance and calibration labs, the versatile torque sensor is used in conjunction with a digital torque display. The torque sensor is a bench mounted calibration instrument designed for torque wrench calibration, torque screwdriver calibration, and electric & pneumatic screwdriver calibration. Controlling torque is essential for companies to ensure their product's quality, safety and reliability isn't compromised.
- Supplied with ISO 17025 Certification of Calibration
- Accuracy ± .25% of full scale (± 0.5% for 10,000F & 20,000F models)
- Female square drive.
- Bi-directional measurement
- Mounting brackets available, optional
Model | Range | Drive Size |
---|---|---|
BMX20z |
2 - 20 ozf-in
0.13 - 1.25 lbf-in
0.01 - 0.1 lbf-ft
1.41 - 14.12 N-cm
0.01 - 0.14 N-m
|
1/4" |
BMX40z |
4 - 40 ozf-in
0.25 - 2.5 lbf-in
0.02 - 0.21 lbf-ft
2.82 - 28.24 N-cm
0.03 - 0.28 N-m
|
1/4" |
BMX80z |
8 - 80 ozf-in
0.5 - 5 lbf-in
0.04 - 0.42 lbf-ft
5.65 - 56.49 N-cm
0.06 - 0.56 N-m
|
1/4" |
BMX10i |
16 - 160 ozf-in
1 - 10 lbf-in
0.08 - 0.83 lbf-ft
11.29 - 112.9 N-cm
0.11 - 1.13 N-m
|
1/4" |
BMX25i |
40 - 400 ozf-in
2.5 - 25 lbf-in
0.21 - 2.08 lbf-ft
28.24 - 282.4 N-cm
0.28 - 2.82 N-m
|
1/4" |
BMX50i |
80 - 800 ozf-in
5 - 50 lbf-in
0.42 - 4.17 lbf-ft
56.49 - 564.9 N-cm
0.56 - 5.65 N-m
|
1/4" |
BMX100i |
160 - 1600 ozf-in
10 - 100 lbf-in
0.83 - 8.33 lbf-ft
112.9 - 1129 N-cm
1.13 - 11.29 N-m
|
1/4" |
BMX250i |
400 - 4000 ozf-in
25 - 250 lbf-in
2.08 - 20.83 lbf-ft
282.4 - 2824 N-cm
2.82 - 28.24 N-m
|
1/4" |
BMX500i |
800 - 8000 ozf-in
50 - 500 lbf-in
4.17 - 41.66 lbf-ft
564.9 - 5649 N-cm
5.65 - 56.49 N-m
|
3/8" |
BMX750i |
1200 - 12000 ozf-in
75 - 750 lbf-in
6.25 - 62.5 lbf-ft
847.3 - 8473 N-cm
8.47 - 84.73 N-m
|
3/8" |
BMX50F |
960 - 9600 ozf-in
60 - 600 lbf-in
5 - 50 lbf-ft
677.9 - 6779 N-cm
6.78 - 67.79 N-m
|
3/8" |
BMX100F |
1920 - 19200 ozf-in
120 - 1200 lbf-in
10 - 100 lbf-ft
1355 - 13558.19 N-cm
13.55 - 135.5 N-m
|
1/2" |
BMX250F |
4800 - 48000 ozf-in
300 - 3000 lbf-in
25 - 250 lbf-ft
3389 - 33895.47 N-cm
33.89 - 338.9 N-m
|
1/2" |
BMX500F |
9600 - 96000 ozf-in
600 - 6000 lbf-in
50 - 500 lbf-ft
6779 - 67790.94 N-cm
67.79 - 677.9 N-m
|
3/4" |
BMX1000F |
N/A
1200 - 12000 lbf-in
100 - 1000 lbf-ft
N/A
135.5 - 1355 N-m
|
1" |
BMX2500F |
N/A
3000 - 30000 lbf-in
250 - 2500 lbf-ft
N/A
338.9 - 3389 N-m
|
1 1/2" |
BMX5000F |
N/A
6000 - 60000 lbf-in
500 - 5000 lbf-ft
N/A
677.9 - 6779 N-m
|
1 1/2" |
0 - 0 ozf-in
0 - 0 lbf-in
0 - 0 lbf-ft
0 - 0 N-cm
0 - 0 N-m
|
||
0 - 0 ozf-in
0 - 0 lbf-in
0 - 0 lbf-ft
0 - 0 N-cm
0 - 0 N-m
|
|
BMX Transducer | Specifications |
Rated Output | 2mv/v Nominal |
Safe Overload | 125% of Rated Output |
Bridge Resistance | 350 Ohms Nominal |
Nonlinearity | ± .1% of Rated Output |
Item | Description | Price | ||
---|---|---|---|---|
BMX20z Torque Sensor, 2 - 20 Oz-in, (077000) | $2,125.00 | |||
BMX40z Torque Sensor, 4 - 40 Oz-in, (077001) | $2,125.00 | |||
BMX80z Torque Sensor, 8 - 80 Oz-in, (077002) | $2,125.00 | |||
BMX10i Torque Sensor (1 - 10 Lb-in) - (pn 077003) | $2,125.00 | |||
BMX25i Torque Sensor (2.5 - 25 Lb-in) - (pn 077004) | $2,125.00 | |||
BMX50i Torque Sensor (5 - 50 Lb-in) - (pn 077005) | $1,750.00 | |||
BMX100i Torque Sensor (10 - 100 Lb-0-in) - (pn 077006) | $1,750.00 | |||
BMX25i Torque Sensor (25 - 250 Lb-in) - (pn 077007) | $1,750.00 | |||
BMX500i Torque Sensor (50 - 500 Lb-in) - (077008) | $2,075.00 | |||
BMX750i Torque Sensor (75 - 750 Lb-in) - (pn 077009) | $2,075.00 | |||
BMX50F Torque Sensor (5 - 50 Lb-ft) - (pn 077010) | $2,150.00 | |||
BMX100F Torque Sensor (10 - 100 Lb-ft) - (pn 077011) | $2,400.00 | |||
BMX250F Torque Sensor (25 - 250 Lb-ft) - (pn 077012) | $2,500.00 | |||
BMX500F Torque Sensor (50 - 500 Lb-ft) - (pn 077013) | $2,725.00 | |||
BMX1000F Torque Sensor (100 - 1000 Lb-ft) - (pn 077014) | $4,675.00 | |||
BMX2500F Torque Sensor (250 - 2500 Lb-ft) - (pn 077015) | $7,250.00 | |||
BMX5000F Torque Sensor (500 - 5000 Lb-ft) - (pn 077016) | $7,775.00 | |||
BMX10K Torque Sensor (1000 - 10000 Lb-ft) - (pn 077017) - This item is no longer available. There is no replacement. | $ | |||
BMX20K Torque Sensor (2000 - 20000 Lb-ft) - (pn 077018) - This item is no longer available. There is no replacement. | $ | |||
Accessories | ||||
062109 | MB-1 Mounting Bracket for BMX 20z - BMX500F | $261.25 | ||
062128 | MB-3 Mounting Bracket for BMX1000F - BMX-5000F | $3,562.50 | ||
PTT-2000 Torque Analyzer for use with Mountz Torque Sensors - 072999 | $2,850.00 | |||
072002 | Cable PTT to BMX | $325.00 |
