3 Models
TSD-50: 0.45 - 4.42 lb-in / 5.0 - 50.0 cN-M (0.05 - 0.5 Nm)
TSD-200: 1.70 - 17.70 lb-in / 20.0 - 200.0 cN-M (0.2 - 2 Nm)
TSD-400: 3.50 - 35.00 lb-in / 40.0 - 400.0 cN-M (0.4 - 4 Nm)
TSD-50: 0.45 - 4.42 lb-in / 5.0 - 50.0 cN-M (0.05 - 0.5 Nm)
TSD-200: 1.70 - 17.70 lb-in / 20.0 - 200.0 cN-M (0.2 - 2 Nm)
TSD-400: 3.50 - 35.00 lb-in / 40.0 - 400.0 cN-M (0.4 - 4 Nm)

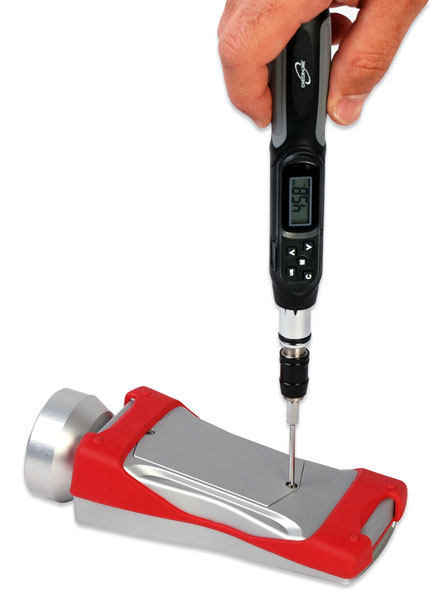

TSD digital torque screwdrivers are designed for accurate measurement of application and removal torque of screws and fasteners. The TSD measures bi-directional torque in real-time or peak modes. 9 programmable target values can be preset to allow the operator to quickly fasten screws using audible and visual indicators to alert when the target value is reached or passed.

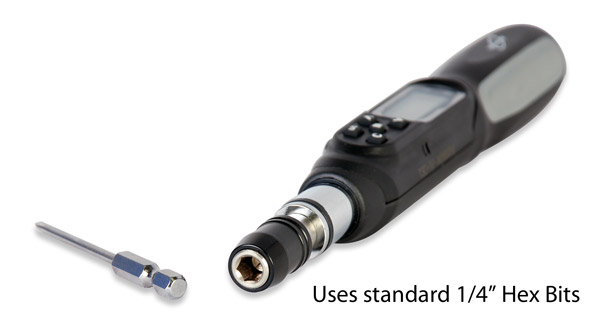

The TSD uses standard 1/4" hex bits allowing it to be used on a wide range of applications. An auto-locking bit holder allows for quick changing between sizes.
- Includes Factory Calibration Certificate
- Uses standard 1/4" bits
- Clockwise & Counter Clockwise Torque Measurement
- 9 Programmable Target Torque Set-points
- Real time & Peak Torque Measurement
- Display Units: lb-in, cN-M and Kg-cm
- 1 AAA battery provides 12 hours of continuous use
- CE Certified
| Model | Range | Resolution |
|---|---|---|
| TSD-50 | 0.45 - 4.42 lb-in 5.0 - 50.0 cN-M 0.50 - 5.00 kg-cm | 0.01 lb-in 0.1 cN-M 0.01 kg-cm |
| TSD-200 | 1.70 - 17.70 lb-in 20.0 - 200.0 cN-M 2.00 - 20.00 kg-cm | 0.01 lb-in 0.1 cN-M 0.01 kg-cm |
| TSD-400 | 3.50 - 35.00 lb-in 40.0 - 400.0 cN-M 4.00 - 40.00 kg-cm | 0.01 lb-in 0.1 cN-M 0.01 kg-cm |
- Press C to power on screwdriver.
- Press U/S to select desired measuring unit.
- To select TRACK or PEAK mode press and hold the U/S key for 2 seconds, the display will show MODE, then press the up or down key to select between PEAK or TRACK mode (indicated by a small P or T in the bottom right corner of display). Then press the U/S key three times to confirm your selection and return to measurement mode.
- Use up and down arrow keys to enter target torque. If you are simply measuring and do not have a target, adjust the setpoint to the highest value (maximum capacity of the screwdriver).
Note, when there is no torque applied the TSD will display the target value or previous reading (in Peak mode).

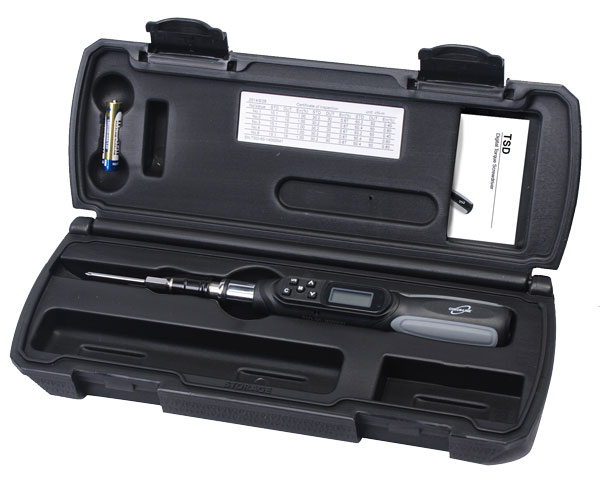

The TSD is supplied as a complete kit including the torque screw driver, Phillips size 0 bit (2.1in / 55mm length), instruction manual, factory calibration cert and 1 AAA battery in a hard plastic carrying case.

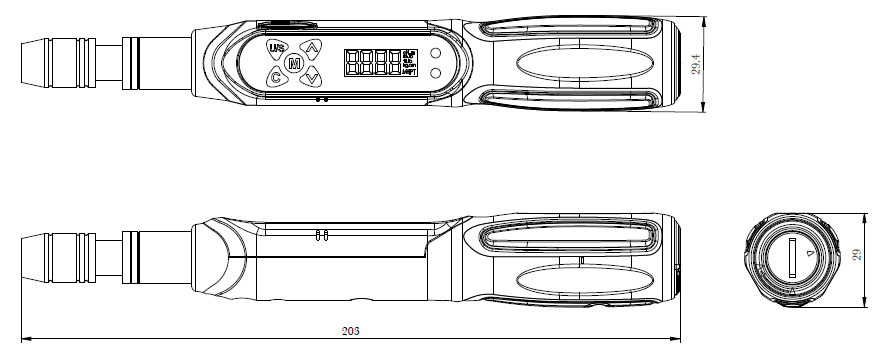

Dimensions MM
| Accuracy | Clockwise: ±2% Counterclockwise: ±3% (of indicated) Guaranteed from 20-100% of capacity. |
| Presets | 9 Programmable setpoints with both audible beep and Green/Red LED indicator |
| Memory | 50 readings |
| Presets | 9 Programmable setpoints with both audible beep and Green/Red LED indicator |
| Drive | 1/4 Inch - 6.35 mm Hex |
| Operating Modes | Peak / Track (real-time) |
| Power Supply | 1x AAA Battery (included) |
| Working Time | 12 hours continuous use |
| Auto Off | Automatic power off after 5 minutes of non-use |
| Operating Temp. | -10°C - 60°C |
| Storage Temp. | -20°C - 70°C |
| Dimensions | Length (without bit): 200mm / 8in Diameter at largest point: 29.5mm / 1.16in |
| Weight | 430g |
| Warranty | 1 Year |
| Reference #s | TSD-400 = SP-4BN, TSD-200 = SP-2BN, TSD-50 = SP-05BN |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Torque Screwdriver, 4.42 lb-in / 50.0 cN-M Capacity - SP-05BN | $369.00 | |||
Digital Torque Screwdriver, 17.70 lb-in / 2 Nm / 200.0 cN-M Capacity - SP-2BN | $369.00 | |||
Digital Torque Screwdriver, 35.00 lb-in / 4 Nm / 400.0 cN-M Capacity - SP-4BN | $369.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate (PER SCREWDRIVER) | $100.00 | ||
ISO-17025-TSD | ISO-17025 Calibration Certification for Torque Screwdriver (PER SCREWDRIVER) | $175.00 | ||
14HEX-14SQ | 1/4 In Male Hex to 1/4 Male Square Drive Adapter, Allows use of 1/4 In Sockets with TSD | $5.00 | ||
33 Piece 1/4" Hex Bit Set with drive extension, 6 Torx, 5 Hex bits, 8 Phillips, 8 Pozidrive, 5 slotted bits | $20.00 | |||
TSD-BC | Replacement Battery Cap for TSD Torque Screwdrivers | $3.00 | ||
TSD-DTL-CAL-CABLE | Calibration Cable for TSD, DTL, DTF Torque Drivers | $75.00 | ||
