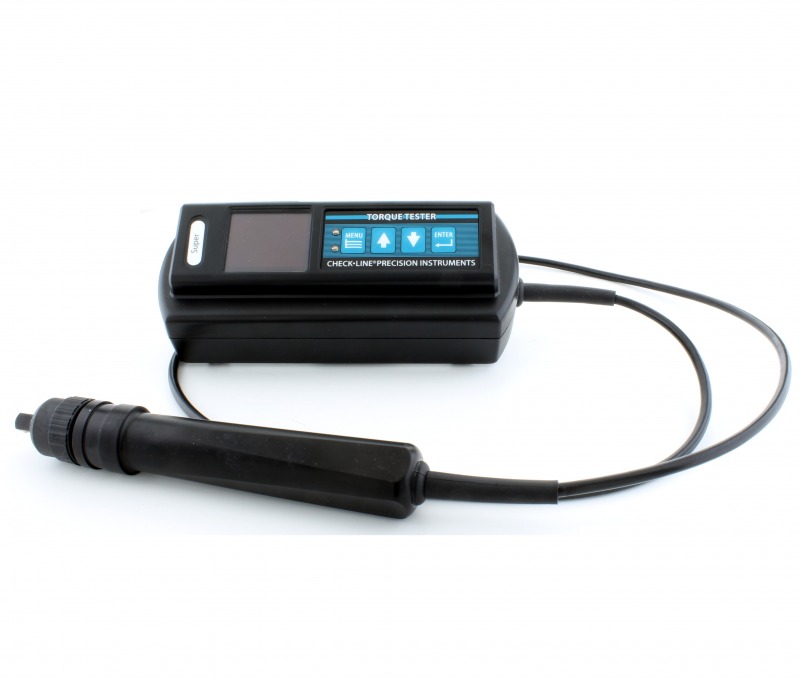

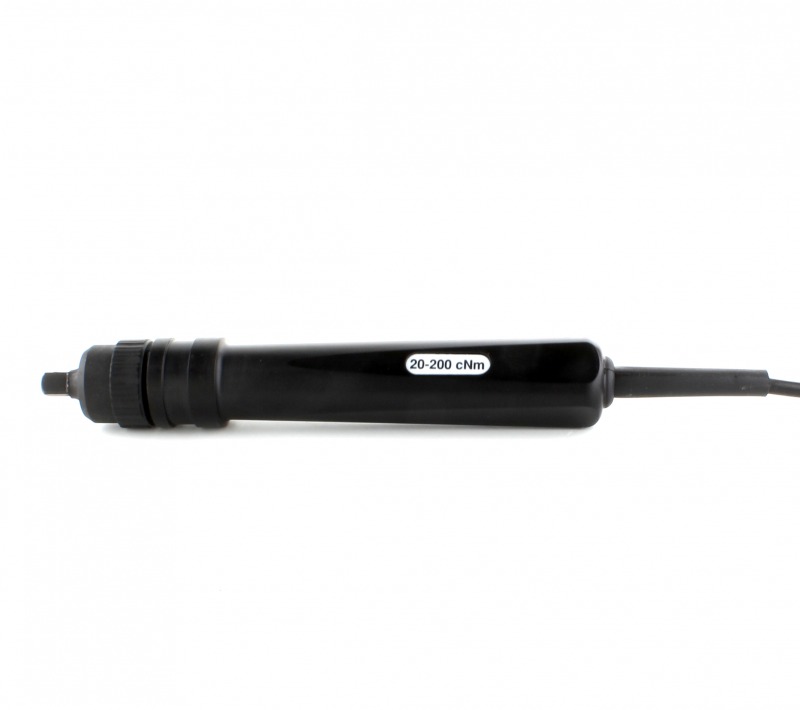

The DTSM is a torque measuring manual screwdriver designed for lab and production use.

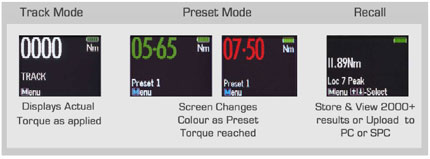

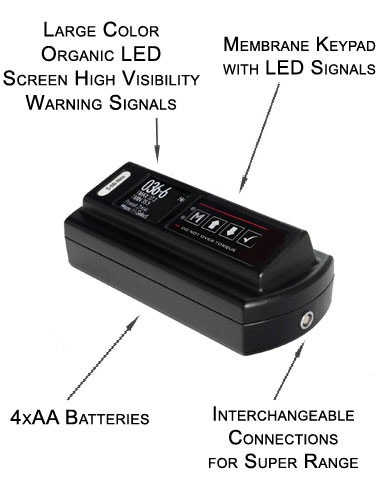

The Large Color OLED displays bi-directional torque in real-time or peak modes. The driver has an accuracy of ±1% of the indicated measurement from 10%-100% of range and offers programmable setpoints that provide both an audible beep and green/red LED signals for uniform tightening or GO/NO GO testing.
Use the > 2000+ internal memory for data recall and out via USB or Bluetooth (optional).
The MS / DTSM substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.
- Traceable Calibration Certificate included
- 99 Programmable Preset Torque Targets
- Over 180 hours of battery life
- Accuracy of measurement better than 1%
- 1 year warranty
- Bluetooth output optionally available
- Data Transfer Software Included
- Serial/RS232 output option available on request
- A Torque lever is included with MST model torque screwdrivers
| Model | Measuring Range | Drive | T-Handle |
|---|---|---|---|
| DTSM-50 | 5 - 50 Ncm / 0.4 - 4.4 lb-in | 1/4" Male Sq | NO |
| DTSM-150 | 15- 150 Ncm / 1.3 - 13 lb-in | 1/4" Male Sq | NO |
| DTSM-200 | 20 - 200 Ncm / 1.7 - 17.7 lb-in | 1/4" Male Sq | NO |
| DTSM-350 | 35 - 350 Ncm / 3.1 - 31 lb-in | 1/4" Male Sq | NO |
| DTSM-500 | 50 - 500 Ncm (5Nm) / 4.4 - 44 lb-in | 1/4" Male Sq | NO |
| DTSM-5T | 50 - 500 Ncm (5Nm) / 4.4 - 44 lb-in | 1/4" Male Sq | Included |
| DTSM-10T | 100 - 1000 Ncm (10Nm) / 8.8 - 88 lb-in | 1/4" Male Sq | Included |
| Accuracy | +/-1% of indicated from 10-100% of Full Scale, bi-directional |
| Power | 4x AA Batteries |
| Data Transfer | Standard: USB RS232, Optional: Bluetooth, Zigbee Radio |
| Presets | 99 |
| Drive Size | 1/4" Male Sq |
| Memory | >2000 Values |
| Warranty | 1 Year |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Torque Screwdriver, 5 - 50 Ncm / 0.4 - 4.4 lb-in - MS050S | $850.00 | |||
Digital Torque Screwdriver, 15- 150 Ncm / 1.3 - 13 lb-in - MS150S | $850.00 | |||
Digital Torque Screwdriver, 20 - 200 Ncm / 1.7 - 17.7 lb-in - MS200S | $850.00 | |||
Digital Torque Screwdriver, 35 - 350 Ncm / 3.1 - 31 lb-in - MS350S | $850.00 | |||
Digital Torque Screwdriver, 50 - 500 Ncm (5Nm) / 4.4 - 44 lb-in - MS500S | $850.00 | |||
Digital Torque Screwdriver, 50 - 500 Ncm (5Nm) / 4.4 - 44 lb-in - MST005S | $1,050.00 | |||
Digital Torque Screwdriver, 100 - 1000 Ncm (10Nm) / 8.8 - 88 lb-in - MST010S | $1,050.00 | |||
| Accessories | ||||
DTSM-BT-UPG | Add Bluetooth Output to DTSM, Includes Software | $440.00 | ||
