J-40 Thickness Gauge

Made in Germany

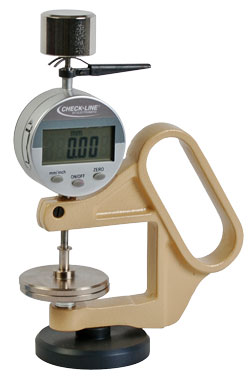

J-40-T Digital Material Thickness Gauge
Click images to enlarge.
Measuring Range: 0 - 10 mm / 0 - 0.4 inch (0 - 25mm / 1 inch optional)
Resolution: 0.01 mm / 0.001 inch

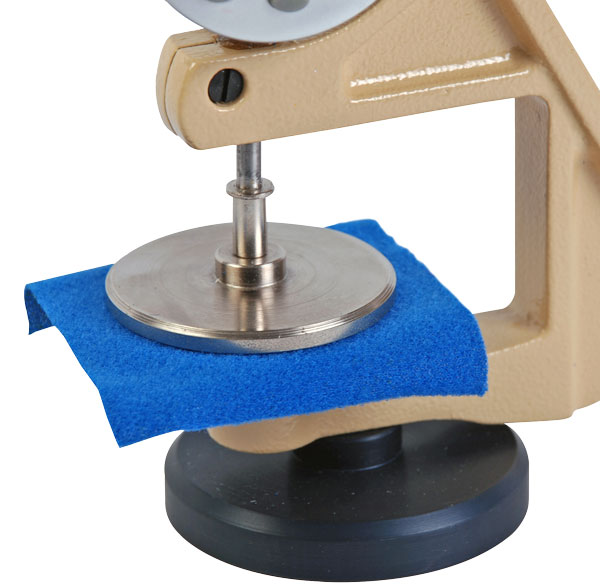

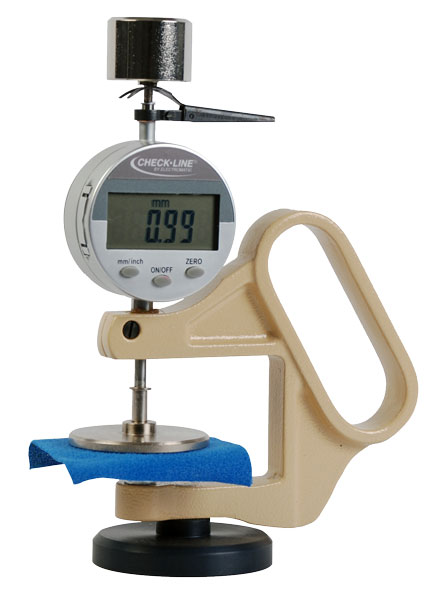

The J-40 Series thickness gauge can be used to determine the material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. The instrument does not meet the DIN, EN and ISO standards. The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.

Features

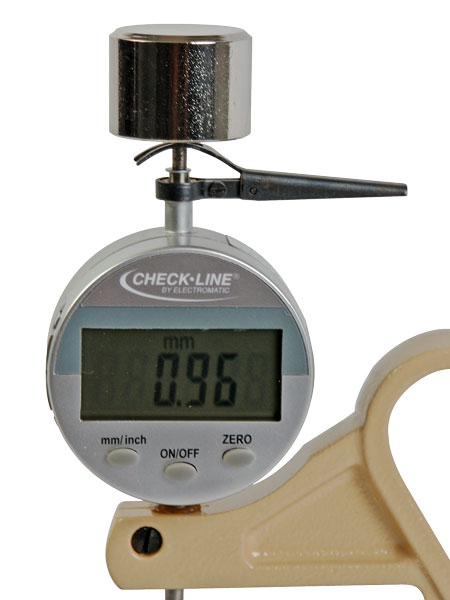

  • Digital display with selectable units inch or mm

Available Models

Model Standard Application Feeler Ø Feeler
Area		 Pressure
J-40-T similar to DIN EN ISO 5084 Textiles and Non-woven textiles 50.42mm 20 cm² 1 kPA
J-40-V similar to DIN EN ISO 9073-2 Standard fleece 56.42mm 25 cm² 0.5 kPA
J-40-L similar to DIN EN ISO 53326
(New DIN EN ISO 2589)		 Leather 10mm 0.785 cm² 49.1 kPA
J-40-D1777-1 ASTM D1777-1 Woven, Knit, Textured Fabrics 28.7mm 1 in² 4.14 kPA
J-40-D1777-2 ASTM D1777-2 Coated and Narrow Fabrics, Webbings, Tapes, Ribbons, Braids 9.5mm 0.110 in² 23.4 kPA

Related Products

material thickness gauge
Click image for more info
MTG
Digital Material Thickness Gauge
- Optional Air Dampening feature allows for a repeatable, controlled rate of descent on to sample
D2000 Thickness Gauge
Click image for more info
D-2000
Precision Material Thickness Gauge
- Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability
- Switch-selectable measuring units mm / inch
- Optional software for data transfer and analysis - Part No. SW-50

Specifications

Measuring Range0 - 10 mm
0 - 25 mm (OPTIONAL)
Resolution0.01 mm
Accuracy± 0.02 mm
Depth of Jaws40 mm
DisplayLCD 4 Digit, 8 mm tall
Dimensions103 x 65 x 145 mm (L x W x H)
Weight230 g (800 g) - net (gross)
Battery1 pc. CR2032 (3V Lithium Coin Cell)

Downloads

J-40-L
PDF File
J-40-T Manual
PDF File
J-40-V Manual
PDF File
Software for J-40-T Thickness Gauge
ZIP File

Buy Now

Item Description Price
J-40-T
Digital Thickness Gauge per ISO 5084 for Textiles and Non-woven textiles, 10 mm / 0.4" Range
$595.00
J-40-T-25MM
Digital Thickness Gauge per ISO 5084 for Textiles and Non-woven textiles, 25 mm / 1" Range
$695.00
J-40-V
Digital Thickness Gauge per ISO 9073-2 for Fleece, 10mm / .4" Range
$595.00
J-40-V-25MM
Digital Thickness Gauge per ISO 9073-2 for Fleece, 25mm / 1" Range
$695.00
J-40-L
Digital Thickness Gauge per ISO 53326, 2589 for Leather, 10mm / .4" Range
$595.00
J-40-L-25MM
Digital Thickness Gauge per ISO 53326, 2589 for Leather, 25mm / 1" Range
$695.00
J-40-D1777-1
Digital Thickness Gauge per ASTMD D1777-1 Specs, 10 mm / 0.4" Range
$695.00
J-40-D1777-2
Digital Thickness Gauge per ASTMD D1777-2 Specs, 10 mm / 0.4" Range
$695.00
J-40-T-AN
Analog Thickness Gauge Per ISO 5084, 10mm range
$395.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
J-40-CC
Carrying case for the J-40 Dial Thickness Gauges
$60.00
WOLF-SOFT
Software for J40 / RMU / MDM / DMD
$85.00
WOLF-CABLE
Data Output Cable for J40 / RMU / MDM
$115.00
J-40-V-WEIGHT
Weight for J-40-V & MTT-300/500-V Thickness Gauge, 133401
$95.00
