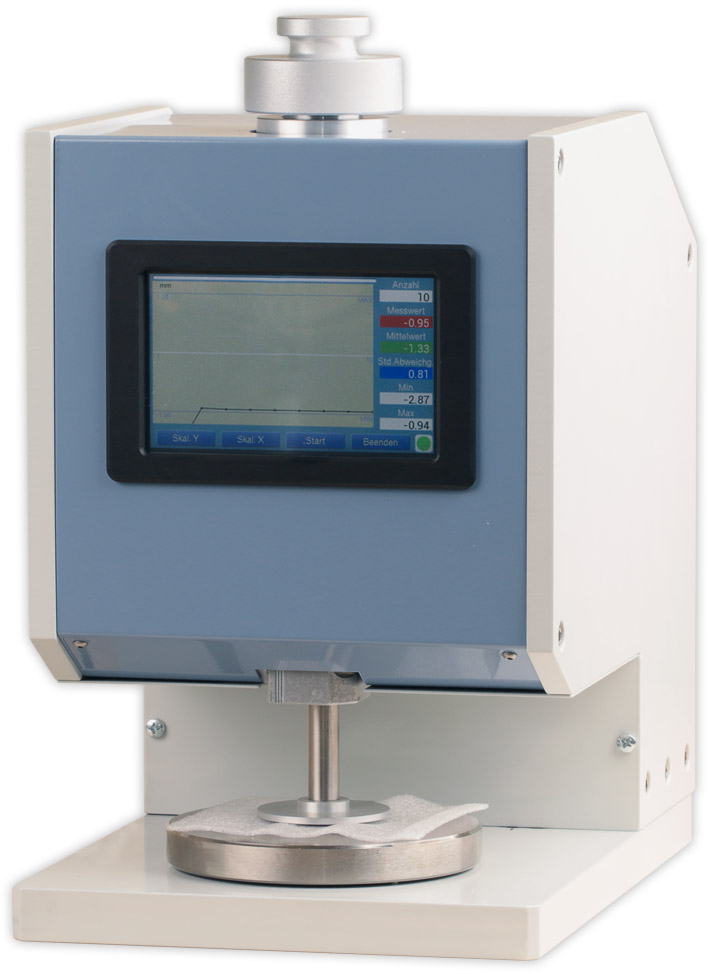

Thickness Gauge to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc.
According to international standards DIN, EN and ISO
- Rigid housing frame
- Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability
- Selectable measuring units mm / inch
- USB for data transmission and RS 232 for printer
- Resolution 0.001 mm - standard
- Motorized feeler movement
- Includes Calibration Certificate
- Graphic display for readings and statistics
| Model | Standard | Application | Feeler ⌀ mm | Feeler cm² | Pressure |
|---|---|---|---|---|---|
| D-2010-T | DIN EN ISO 5084 | Textiles | 50.42 | 20 | 0.1 kPa and 1 kPa |
| D-2010-V | DIN EN ISO 9073-2 | Standard Fleece | 56.42 | 25 | 0.1 kPa and 0.5 kPa |
| D-2010-G1 | DIN EN ISO 9863-1 | Geomaterials | 56.42 | 25 | 2 kPa |
| D-2010-NW | DIN EN ISO 53855 | Non-woven Textiles | 56.42 35.68 |
25 10 |
0.5 kPa and 1 kPa 5 kPa |
| D-2010-P | DIN EN ISO 53105 | Paper | 16 | 2 | 100 kPa |
| D-2010-HY | DIN EN ISO 54540 | Hygienic Paper | 56.42 | 25 | 2 kPa |
| D-2010-L1 | DIN EN ISO 53326 | Leather | 10 | 0.785 | 50 kPa |
| D-2010-L2 | DIN EN ISO 2589 | Leather | 10 | 0.785 | 49.1 kPa |
| D-2010-Gi | Rubber | 35.68 | 10 | 5 kPa | |
| Feeler Calotte | |||||
| D-2010-F | DIN 53370 | Foils | R 30 mm | 0.5 N |
| Code E25 | Higher measuring range 0... 25 mm |
| DKD-Cal | Calibration report from a DKD authorized laboratory |
| D-2000 | D-2005 | D-2010 | D-2020 | |
|---|---|---|---|---|
| Touch screen with menu control in English or German | - | - | ||
| Seven-segment display | - | - | ||
| Display illumination | - | - | ||
| Statistics display | - | - | ||
| Automatic zero point control | - | - | ||
| Preselection of the measurment cycles | - | - | ||
| Preselection of the measuring range | - | optional | ||
| Adjustable dwell time | - | optional | ||
| Motor-driven caliper movement | - | |||
| Connection for pedal | - | |||
| Manual caliper movement via a control lever | - | - | - | |
| Automatic material infeed, adjustable | - | - | - | |
| Digital interface | ||||
| Available scale divisions | 0.001 mm, 0.01 mm | |||
| Possible measuring ranges | 0 - 10 mm, 0 - 25 mm, 0 - 50 mm | |||
| LxWxH (for 0 - 10 mm range) | 300 x 240 x 300 mm | 300 x 210 x 300 mm | 300 x 200 x 300 mm | 300 x 300 x 320 mm |
| Weight (for 0 - 10 mm range) | 22.5 kg | 23.0 kg | 24.0 kg | 31.5 kg |
| Measuring Range | 0 - 10 mm, option 0 - 25 mm |
| Resolution | 0.01 mm |
| Accuracy | &plusmm;0.002 mm |
| Depth of Jaw | 160 mm |
| Measuring System | Capazitive -> Sylvac |
| Display | Graphic Display |
| Measuring Unit | mm or inch (switchable) |
| Stroke in mm | Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range) |
| Residence Time | 1 - 60 seconds |
| Numberof Measuring | Up to 50 per test series |
| Feeler Shape and Surface Pressure | According international Standards DIN, EN and ISO |
| Output Signal | RS 232 for printer and USB for PC |
| Temperature Range | 10 - 45 °C |
| Air humidity | 85 % RH, max |
| Dimensions | 250 x 310 x 300 mm (LxWxH) |
| Weight, net (gross) | 23 kg (26 kg) |
