The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.
Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)
For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)
For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)
The D-2005 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm
(or with the equivalents in inch, switchable).
With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.
This alternative to the D-2010 does not have an
illuminated, menu controlled touch-screen with its

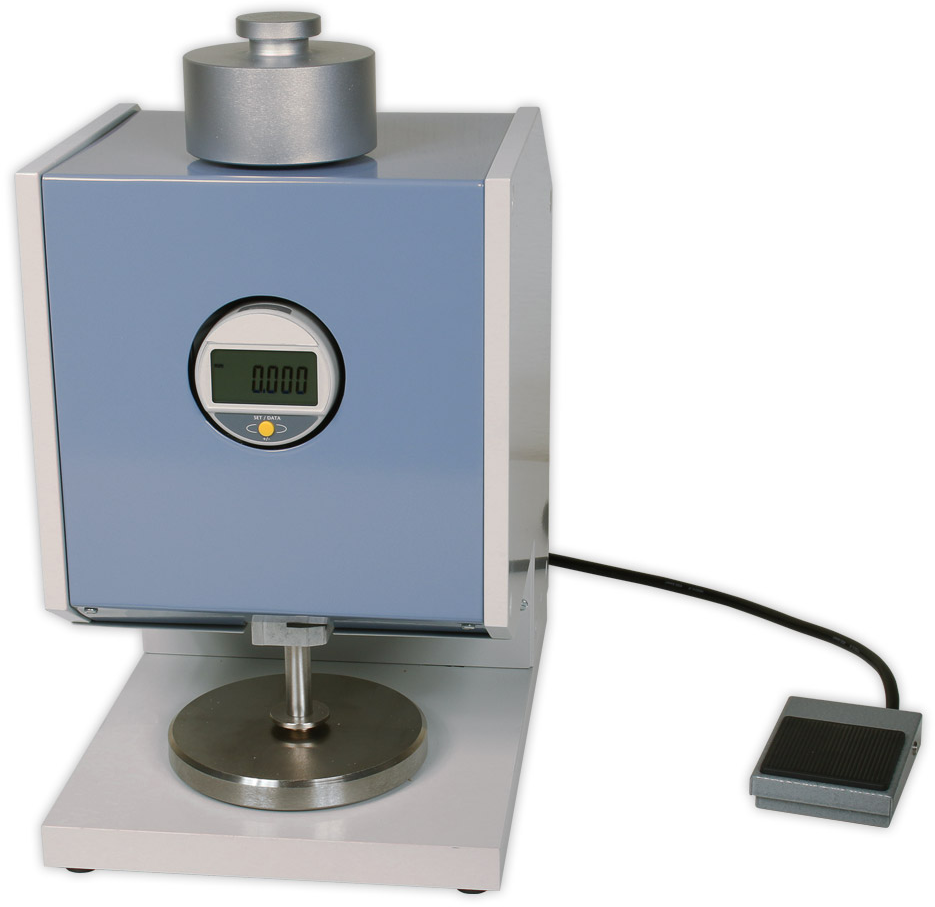

statistics functions, instead it is equipped with a dial
gauge with seven-segment display and individual keys.
Of course, there is a data output for the digital
processing of the measurement results.
The model
D-2005 is also available with special equipment for calliper dwell time gauging range preselection.
- Rigid housing frame
- Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
- Optional: Preselection of the measuring range
- Footpedal included
- Switch-selectable measuring units mm / inch
- Optional: software for data transfer and analysis - Part No. SW-50
- Motor-driven calliper movement
- Seven-segment display
-
Resolution 0.01 mm - standard, 0.001 mm - optional
(0.001 mm is standard for D-2005-P, D-2005-F)
| Model | Standard | Application | Feeler dia. | Feeler area | Pressure |
|---|---|---|---|---|---|
| D-2005-T | DIN EN ISO 5084 | Textiles | 50.42 mm | 20 cm2 | 0.1 kPa and 1 kPa |
| D-2005-V | DIN EN ISO 9073-2 | Standard fleece | 56.42 mm | 25 cm2 | 0.1 kPa and 0.5 kPa |
| D-2005-G1 | DIN EN ISO 964-1 | Geomaterials | 56.42 mm | 25 cm2 | 2 kPa |
| D-2005-NW | DIN EN ISO 53855 | Non-woven textiles | 56.42 mm | 25 cm2 | 0.5 kPa and 1 kPa |
| D-2005-P* | DIN EN ISO 53105 | Paper | 16 mm | 2 cm2 | 100 kPa |
| D-2005-HY | DIN EN ISO 54540 | Hygenic Paper | 56.42 mm | 25 cm2 | 2 kPa |
| D-2005-L1 | DIN EN ISO 53326 (out of date) | Leather | 10 mm | 0.785 cm2 | 50 kPa |
| D-2005-L2 | DIN EN ISO 2589 | Leather | 10 mm | 0.785 cm2 | 49.1 kPa |
| D-2005-Gi | Rubber | 35.68 mm | 10 cm2 | 5 kPa | |
| Feeler Calotte | |||||
| D-2005-F* | DIN 53370 | Foils | R 30 mm | 0.5 N |
| Code R | Higher resolution 0.001 instead of 0.01 mm (0.001 mm is standard for D-2005-P, D-2005-F) |
| Code E | Extended measuring range 0 - 25 mm |
| Code E2 | Extended measuring range 0 - 50 mm |
| Code P | External power supply of the display |
| DKD-Cal | Calibration report from a DKD authorized laboratory |
| Code S | Software & Cable |
| D-2000 | D-2005 | D-2010 | D-2020 | |
|---|---|---|---|---|
| Touch screen with menu control in English or German | - | - | ||
| Seven-segment display | - | - | ||
| Display illumination | - | - | ||
| Statistics display | - | - | ||
| Automatic zero point control | - | - | ||
| Preselection of the measurment cycles | - | - | ||
| Preselection of the measuring range | - | optional | ||
| Adjustable dwell time | - | optional | ||
| Motor-driven caliper movement | - | |||
| Connection for pedal | - | |||
| Manual caliper movement via a control lever | - | - | - | |
| Automatic material infeed, adjustable | - | - | - | |
| Digital interface | ||||
| Available scale divisions | 0.001 mm, 0.01 mm | |||
| Possible measuring ranges | 0 - 10 mm, 0 - 25 mm, 0 - 50 mm | |||
| LxWxH (for 0 - 10 mm range) | 300 x 240 x 300 mm | 300 x 210 x 300 mm | 300 x 200 x 300 mm | 300 x 300 x 320 mm |
| Weight (for 0 - 10 mm range) | 22.5 kg | 23.0 kg | 24.0 kg | 31.5 kg |
| Measuring Range | 0 - 10 mm, (25 mm optional, Code E) |
| Resolution | 0.001 mm |
| Accuracy | ± 0.002 mm |
| Depth of jaw | 160 mm |
| Measuring system | Capazitive -> Sylvac |
| Display | LCD 6 digit, 8.5 mm high |
| Measuring unit | mm or inch |
| Preselection of the measuring range | Optional |
| Feeler shape and surface pressure | According international standards DIN, EN and ISO |
| Adjustable dwell time | Optional |

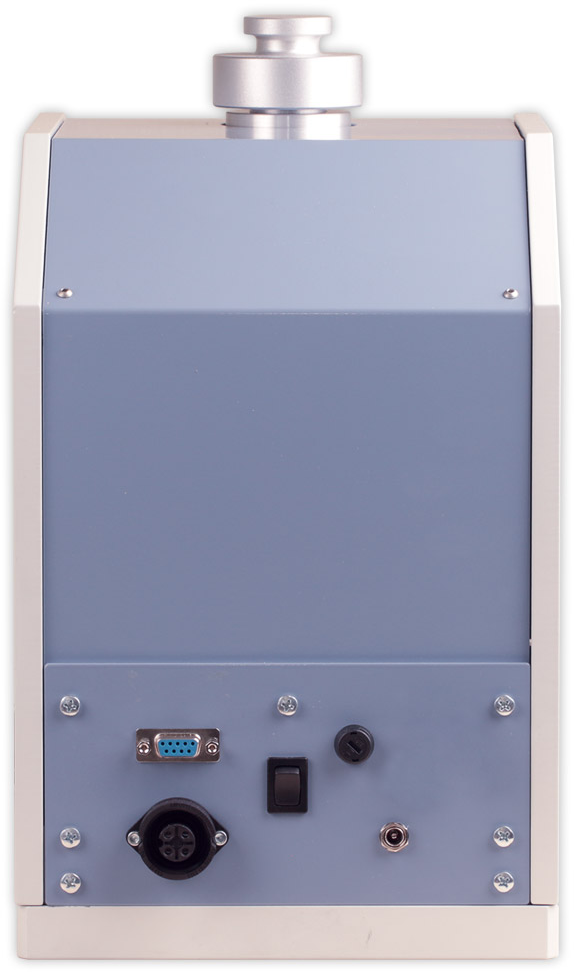

| Output signal | RS 232 for printer and USB for PC |
| Temperature range | 10 - 45 °C |
| Air humidity | Max. 85 % r.H |
| Dimensions | 300 x 210 x 300 mm (LxWxH) |
| Weight, net (gross) | 23 kg |
