2 Ranges
Standard 0-10mm (0-0.394")
Option E 0-25mm (0-1.000")
Option E2 0-50mm (0-2.000")
Standard 0-10mm (0-0.394")
Option E 0-25mm (0-1.000")
Option E2 0-50mm (0-2.000")

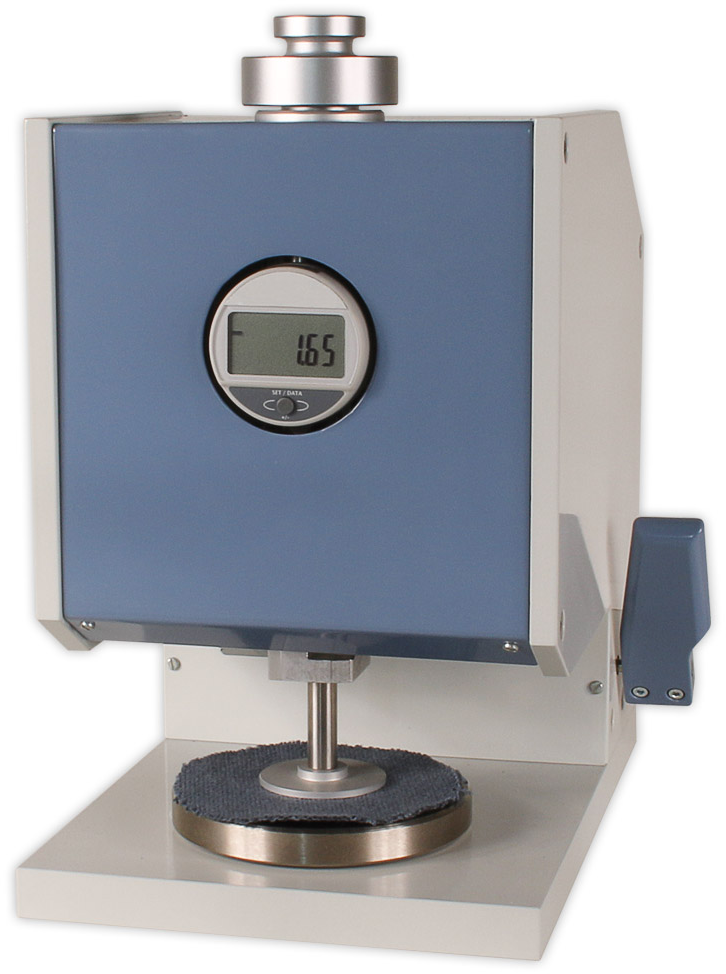

Thickness Gauge to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, etc.
According to international standards DIN, EN and ISO
Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa und 1 kPa)
For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)
For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)
| Model | Standard | Application | Feeler dia. (mm) | Feeler area (cm2) | Pressure |
|---|---|---|---|---|---|
| D-2000-T | DIN EN ISO 5084 | Textiles | 50.42 | 20 | 0.1 kPa and 1 kPa |
| D-2000-V1 | DIN EN ISO 9073-2 | Standard fleece | 56.42 | 25 | 0.5 kPa |
| D-2000-V2 | DIN EN ISO 9073-2 | Standard fleece | 56.42 | 25 | 0.1 kPa and 0.5 kPa |
| D-2000-G1 | DIN EN ISO 9863-1 | Geomaterials | 56.42 | 25 | 2 kPa |
| D-2000-G2 | DIN EN ISO 9863-1 | Geomaterials | 56.42 | 25 | 2 kPa, 20 kPa and 200 kPa |
| D-2000-NW | DIN EN ISO 53855 | Non-woven textiles | 56.42 35.68 |
25 10 |
0.5 kPa and 1 kPa 5 kPa |
| D-2000-P* | DIN EN ISO 53105 | Paper | 16 | 2 | 100 kPa |
| D-2000-HY | DIN EN ISO 54540 | Toilet tissue | 56.42 | 25 | 2 kPa |
| D-2000-L1 | DIN EN ISO 53326 | Leather | 10 | 0.785 | 50 kPa |
| D-2000-L2 | DIN EN ISO 2589 | Leather | 10 | 0.785 | 49.1 kPa |
| D-2000-Gi | Rubber | 35.68 | 10 | 5 kPa | |
| D-2000-CF | ISO 2286-3 | Rubber or plastics-coated fabrics | 12 | 1.13 | 2, 10 and 24 kPa |
| Feeler Calotte | |||||
| D-2000-F* | DIN 53370 | Foils | R 30 MM | 0.5N | |

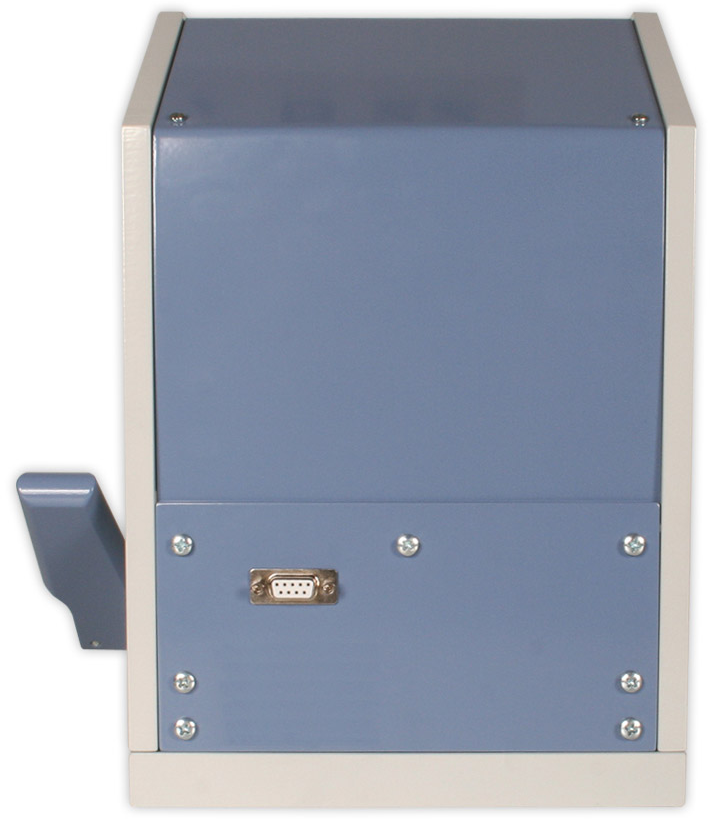

- Rigid housing frame
- Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability
- Switch-selectable measuring units mm / inch
- USB data output
-
Resolution 0.01 mm - standard, 0.001 mm - optional
(0.001 mm is standard for D-2000-P, D-2000-F) - Feeler movement manual by plunger
- Includes Calibration Certificate
- Optional software for data transfer and analysis - Part No. SW-50
| D-2000 | D-2005 | D-2010 | D-2020 | |
|---|---|---|---|---|
| Touch screen with menu control in English or German | - | - | ||
| Seven-segment display | - | - | ||
| Display illumination | - | - | ||
| Statistics display | - | - | ||
| Automatic zero point control | - | - | ||
| Preselection of the measurment cycles | - | - | ||
| Preselection of the measuring range | - | optional | ||
| Adjustable dwell time | - | optional | ||
| Motor-driven caliper movement | - | |||
| Connection for pedal | - | |||
| Manual caliper movement via a control lever | - | - | - | |
| Automatic material infeed, adjustable | - | - | - | |
| Digital interface | ||||
| Available scale divisions | 0.001 mm, 0.01 mm | |||
| Possible measuring ranges | 0 - 10 mm, 0 - 25 mm, 0 - 50 mm | |||
| LxWxH (for 0 - 10 mm range) | 300 x 240 x 300 mm | 300 x 210 x 300 mm | 300 x 200 x 300 mm | 300 x 300 x 320 mm |
| Weight (for 0 - 10 mm range) | 22.5 kg | 23.0 kg | 24.0 kg | 31.5 kg |
| Measuring range | 0 - 10 mm, option 0 - 25 mm |
| Resolution | 0.01 mm, option 0.001 mm |
| Accuracy | ±0.02 mm, option ±0.002 mm |
| Depth of Jaw | 160 mm |
| Display | LCD 6 digit, 8.5 mm high |
| Temperature range | 10 - 45 °C |
| Air humidity | 85 % RH, max |
| Dimensions | 250 x 310 x 300 mm (LxWxH) |
| Weight, net (gross) | 23 kg (26 kg) |
| Self-Weight of Spindle | 127.5 grams |
| Code R | Higher resolution 0.001 instead of 0.01 mm |
|---|---|
| Code M | Motorized feeler movement 2.5 mm/sec. operated by foot plug |
| Code T | Adjustable measuring time 2 to 32 seconds in 2 sec. steps |
| Code E | Higher measuring range 0... 25 mm |
| Code E2 | Higher measuring range 0... 50 mm |
| Code V | Adjustable measuring range 0 - 10 mm or 0 - 25 mm |
| Code P | Additional weights |
| Code F | Additional feeler shape according to customer specification |
| DKD-Cal | Calibration report from a DKD authorized laboratory |
