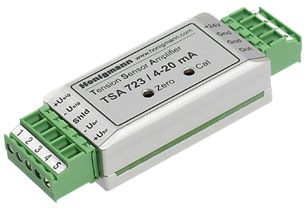

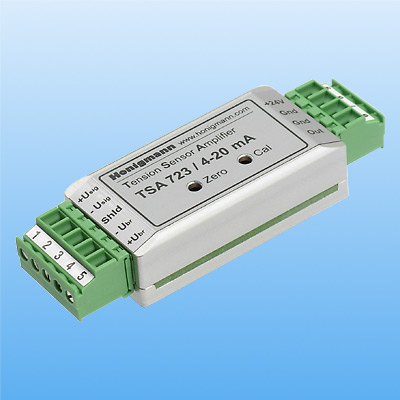

Miniature measuring amplifier

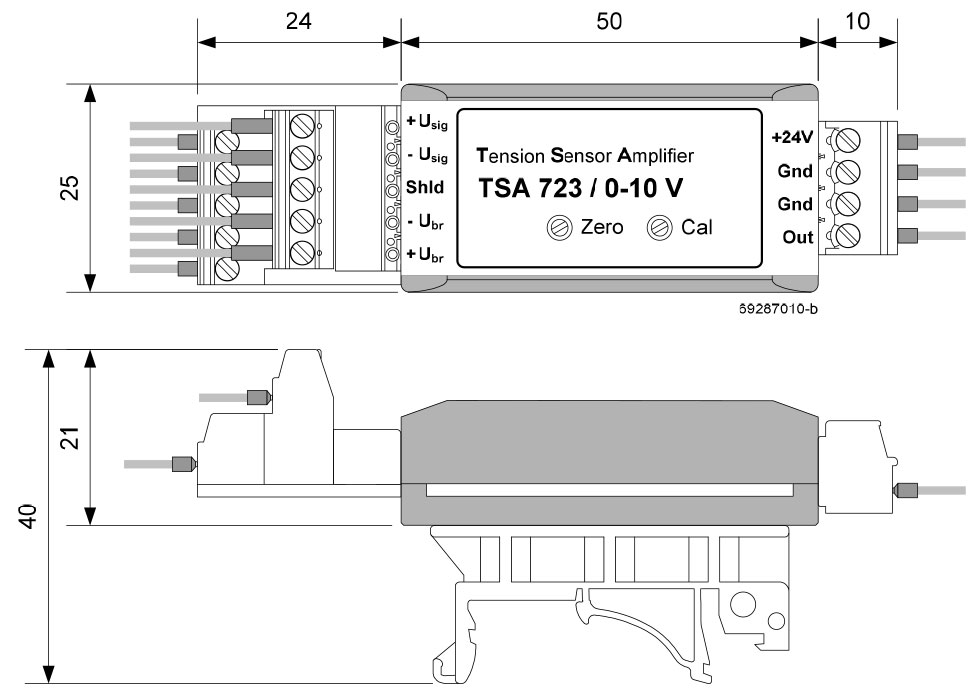

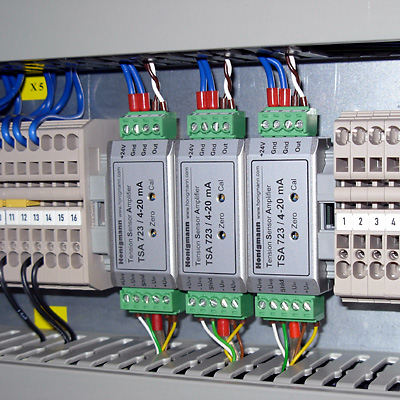

The miniature measuring amplifier TSA723 satisfies with a compact and rugged design. The housing fits optimally into the arrangement of terminal blocks in a control cabinet.

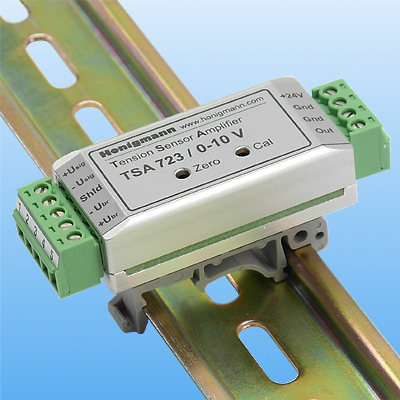

For mounting with double-faced adhesive tape or for the use in laboratories the measuring amplifier is available without rail-mounting adapter.

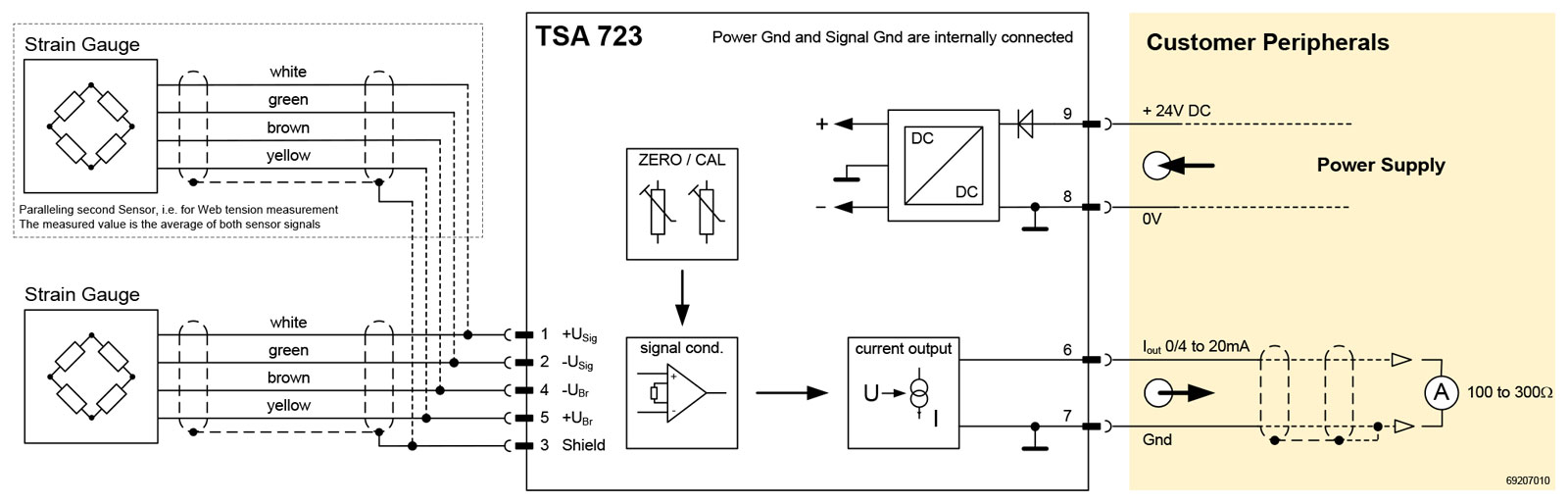

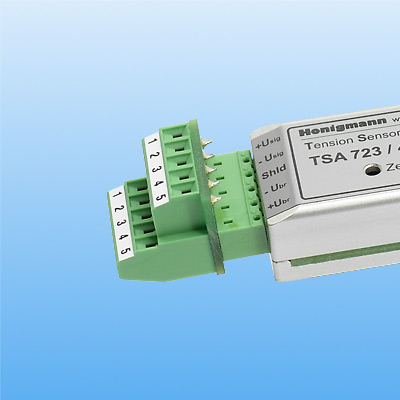

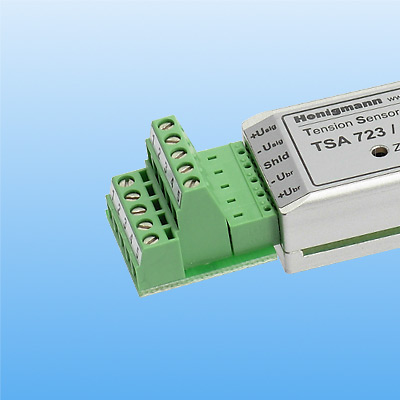

Connection is effected by plugs with screw terminals. This offers a very efficient wiring possibility.

Features

voltage output 0 to ±10V; optional current output 0-20mA or 4-20mA
ZERO and CAL adjustment by multi-turn potentiometer
input power supply of 24V DC, reverse-polarity protected
compact and robust aluminium housing

Specifications

Design	robust aluminium housing
Sensors to be connected	strain gauge, full bridge
Admissible connection impedance	175 to 1000 Ω
Accuracy class	0.1
Bridge excitation voltage	10 V DC
Nominal gain G_nom	667
Nominal measuring range U_sig	± 15 mV (accordant 1.5 mV/V at 10V excitation voltage)
Adjustment range calibration (CAL)	85 to 100 to 500% F_N
Adjustment range zero (ZERO)	± 45% F_N
Cut-off frequency f_C (-3 dB)	approx 70 Hz
Output - voltage output (standard) - current output 0-20 (optional) - current output 4-20 (optional)	0 to ± 10 V, max. 1 mA 0 to 20 mA, admissible load 100 to 300 Ω 4 to 20 mA, admissible load 100 to 300 Ω
Nominal temperature range	0 to 50 °C (32 to 122 °F)
Operation temperature range	-10 to 70 °C (14 to 158 °F)
Storage temperature range	-30 to 75 °C (-22 to 167 °F)
Temperature influence per 10 K - on zero at amplifier output - on calibration	< 10 mV < 0.05% of final value
Supply voltage	20 to 28 V DC
Current consumption (350 Ω bridge, no load)	approx. 36 mA
Connection	Plugs with screw terminals for flexible cable 0,08 to 1,5 mm²
Weight	approx. 40 g
