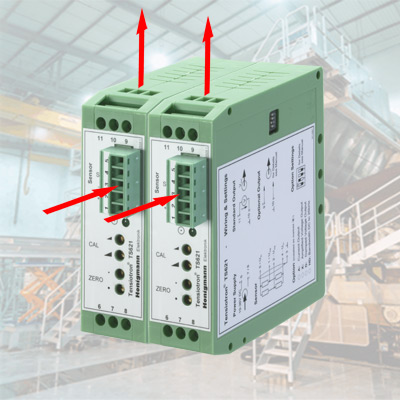

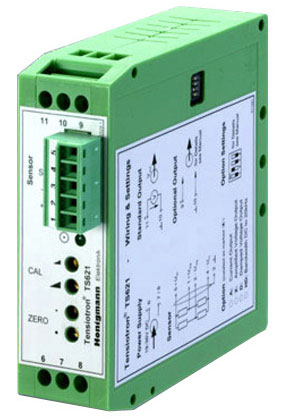

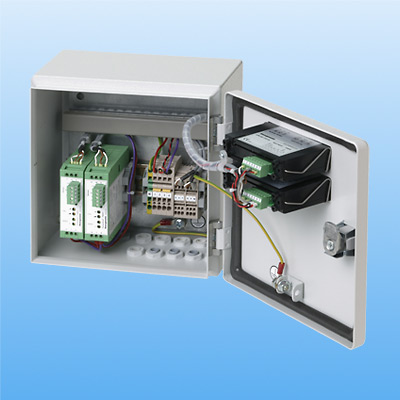

The TS621 Electronic Strain Gauge Amplifier provides outstanding signal conditioning capabilities suitable for use with most strain-gauge-based sensors. It is supplied in a DIN-Rail housing for convenient snap-in installation.
TS621 performance features include galvanic isolation, regulated power supply for the sensor, coarse and fine calibration adjustments, screw terminals for power and analog outputs, with a removable terminal block for the sensor input.
- Designed for use with a wide range of strain-gauge-based force, load and tension sensors
- Galvanic Isolation minimizes the chance for signal interference, including ground faults
- 0-10VDC analog output
- Provides accuracy of ±0.1%
- Operating input power supply of 19-36 VDC, non-regulated
- Includes excellent overload and reverse-polarity protection
- Provides a well-regulated power supply of 10 VDC for sensor
In standard version the measurement amplifier offers a voltage output. The TS 621 can be extended with one additional output.
 |

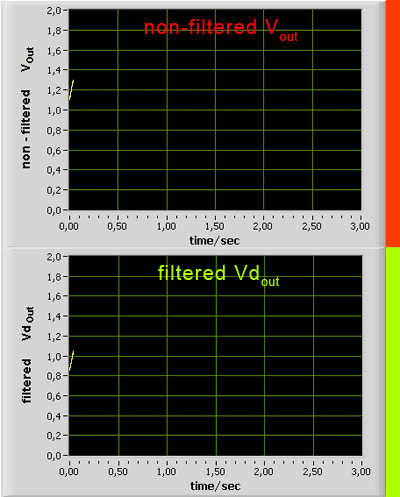

Option D 2nd voltage output 0 to ±10V
|
 |
Option X 2nd voltage output 0 to ±10V
|
 |
Option A Additional current output
|
 |
TS621-AD Current output 0/4-20mA, filtered
|
| Sensor Types | Strain Gauge, full bridge |
| Impedance Range | Minimum 150 Ohms |
| Overall Accuracy | 0.1% (any portion of the range) |
| Power Source Required | 19 to 36 VDC (24 VDC, typical) Optional: 9 to 18 VDC (12 VDC, typical) |
| Power Supply to Sensor | 10 VDC, regulated (±5 VDC referenced to ground) |
| Calibration Range | 38 to 580% |
| Output from TS621 | 0-10 VDC (standard) |
| Optional Outputs | Current (option A), 0-20/4-20 mA, user set Amplified voltage (option X),2X, 3X, 4X, 5X amplification, user set Damped voltage (option D) at 4 seconds |
| Isolation between I/O | Galvanic Isolation using integrated DC-DC converter between input power & output signals |
| Power Consumption | 100 mA @ 24 VDC |
| Operating Temperature | 32 to 140 °F (0 to 60 °C) |
| Connector Types | Screw Terminals |
| Dimensions | 3.1" (H) x 1" (W) x 3.7" (D) (80 x 25 x 95mm) |
| Weight | 4 ounces (100 grams) |
| Mounting Style | DIN-Rail Snap-In Installation (DIN-rail not provided) |
