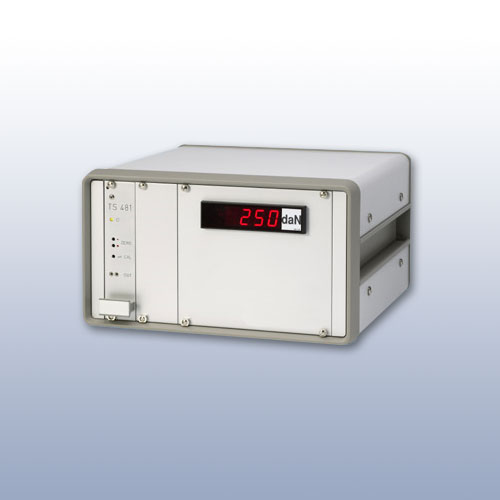

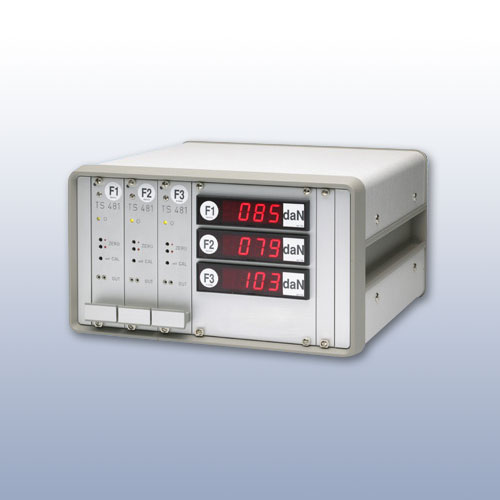

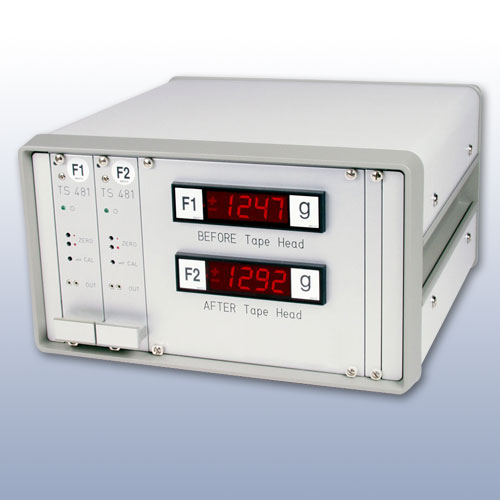

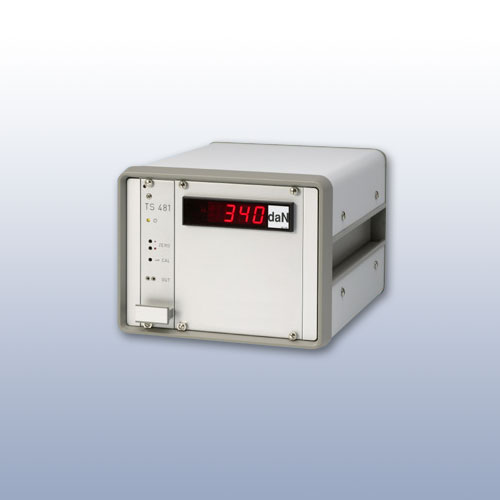

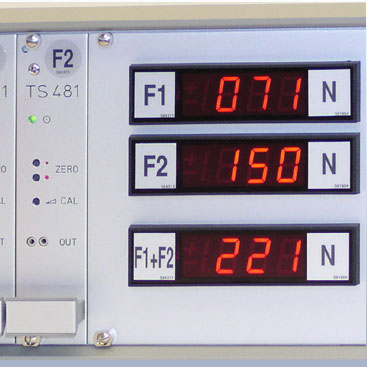

MU481-19 Tension Amplifier & Display

Made in Germany
MU481-19 Tension Amplifier & Display
Click images to enlarge.
Combination Digital and Analog Tension Display Unit for use with strain gauge-based sensors.

Features

  • analog output on the front panel
  • rugged 19"-desktop housing
  • high-grade analog display
  • for strain gauge-based sensors

Related Products

Click image for more info
MU481-OPTION

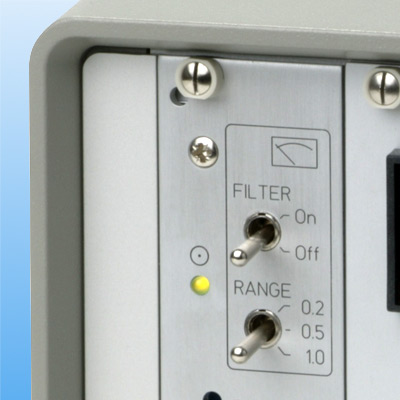

Switch Selectable Measuring Range
Click image for more info
WTM-1R
Web Tension Module 1 Roller Design
- Easy-running self-aligning bearings in non-locating and locating bearing position
- Pre-assembled, ready to be installed as measuring module
Click image for more info
WTM-3R
Web Tension Module 3 Roller Design
- Customer specified roll dimensions
- Easy-running self-aligning bearings in non-locating and locating bearing position
Click image for more info
RMA
Radial Force Measuring Axle
- High spring constants for the sensor permit high rotation speed ratings for the deflector roll
- High precision and excellent long-term stability
Click image for more info
RMA-CSW
Cantilever Measuring Roll
- Direct, radial force transfer
- High precision and excellent long-term stability
Click image for more info
RMA-DS
Radial Force Measuring Axle
- Direct, radial force transfer
- High spring constants for the sensor permit high rotation speed ratings for the deflector roll

Downloads

Dimensional Drawing 1 Channel
PDF File
Dimensional Drawing 2 Channel
PDF File
Dimensional Drawing 3 Channel
PDF File
Dimensional Drawing 4 Channel
PDF File
