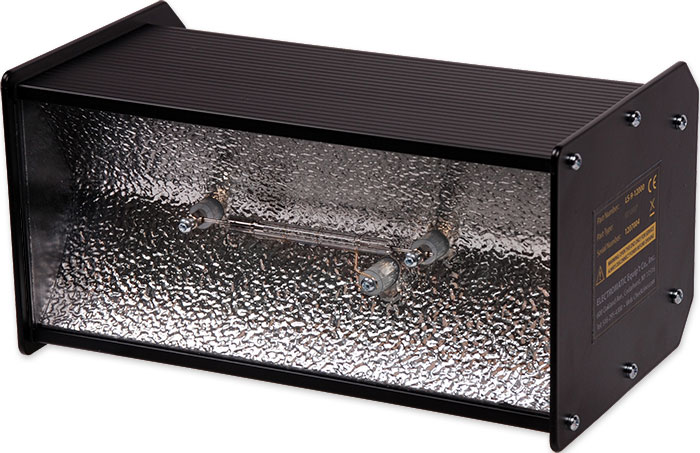

LS-9-12000 Web Inspection Stroboscope

Made in Germany
Click images to enlarge.
The new Checkline LS-9-12000 Linear Strobe is designed for fixed mounting on all machinery that utilizes a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more.

The LS-9's flash rate can be externally triggered by an external sensor/controller on the process machine or the following optional accessories; the LS-FCM Flash Control Module or the LS-SCU Remote Strobe Controller. Refer to separate webpage on these accessories by clicking the links in RELATED PRODUCTS section. The strobe operates using 24V DC using power already available on the machine or by using our worldwide AC-DC power adapter available as an option.

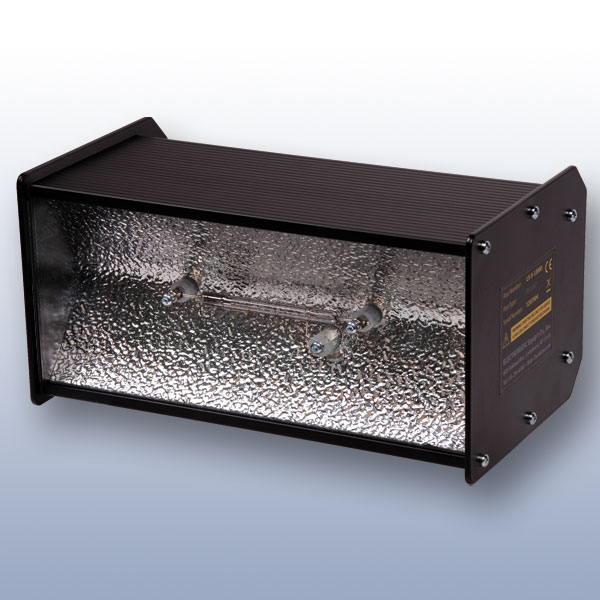

The LS-9 produces an extremely bright, sharp image employing a quartz glass xenon tube with an extremely short flash duration of less than 10µs allowing detailed visual inspection of fast-moving targets. While under observation, when the flash rate is synchronized with the "repeat rate" of the web material, the image will appear "frozen" allowing for convenient inspection.

The brightness, sharpness and uniform light output provided by the LS-9 makes this model an excellent choice for fixed applications. It is especially well-suited for use on narrow web equipment up to 24 inches in width (600 mm width) and even wider. 2 or more strobes can be combined in a Master/Slave arrangement when wider web widths must be covered.

Features

  • Unmatched image brightness (2500 Lux) along with best sharpness and light uniformity from any strobe in its class
  • Uses long-life Quartz Glass Xenon linear tube with lifetime of over 200 Million flashes
  • Extremely short flash duration of less than 10 microseconds (µs) provides for a super-sharp image for easy observation
  • Requires 24V DC Power (Not Included), An optional power adapter is available.
  • Externally triggered using industry standard TTL-type square-wave signal at rates up to 208Hz and even higher
  • 9 inch wide (230 mm) aluminum enclosure efficiently dissipates heat eliminating need for bulky heat sinks

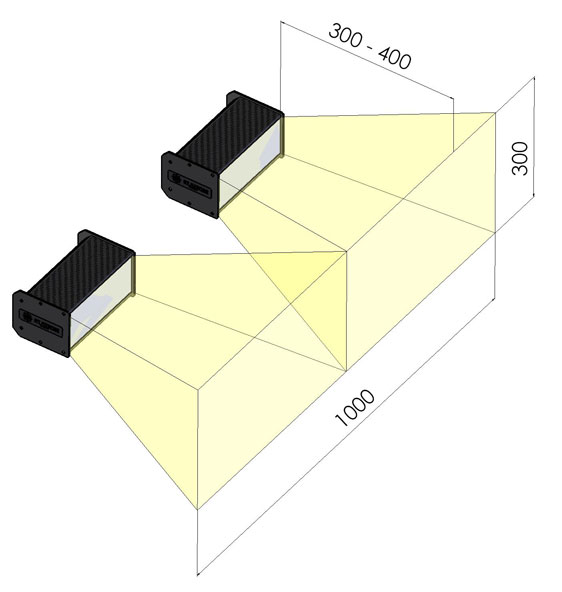

  • Two (2) or more LS-9 Strobes can be connected to each other for wider web coverage
  • CE-certified with safety and EMV approvals suitable for use worldwide
  • Threading holes provided for fixed-mounting on machine frame or articulating arm
  • Adjustable light intensity 30-100% to optimize brightness for any application
  • Optional UV-KIT provides for illumination of UV Inks and adhesives allowing for visual inspection by operators

Light Output (LUX) vs Distance

Related Products

LS-FCM, A6-1050, RT STROBE eco control
Click image for more info
Flash Control Module
Stroboscope Control Unit - LS-SCU
Click image for more info
Stroboscope Remote Control
SAS-DT300 Articulating Stroboscope Swing Arm
Click image for more info
Articulating Stroboscope Swing Arm
- 41" when fully extended
Label Sensor for Triggering On Label Gaps - LS-GAPSENSOR
Click image for more info
Label Sensor for Triggering On Label Gaps
- Only label sensor on the market that is immune to the interference caused by a strobe.
registration mark sensor
Click image for more info
Registration Mark Sensor
- Color Mark registration detection on transparent and translucent, including many metalized films and paper
DT-TRI-HD Tripod for Tachometers and Stroboscopes
Click image for more info
Tripod for Tachometers and Stroboscopes
UV Stroboscope LS-9-12000-UV
Click image for more info
UV Inspection Stroboscope, Black Light Strobe
LS-9-LED
Click image for more info
LED Inspection Stroboscope
120 LEDs in 15 x 8 array
- Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")
- Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak
LS-ARM Stroboscope Mounting Arm, Articulating Swing Arm
Click image for more info
Stroboscope Mounting Arm, Articulating Swing Arm
Inspection Stroboscope
Click image for more info
Inspection Stroboscope - Inspection Strobe Light
- Unmatched brightness, sharpness and uniformity from any strobe in its class
Click image for more info
Reflective Sensor

Specifications

Flash Range0 - 12,500 FPM (flashes per minute)
Power Required24V DC (21.6….26.4VDC) / 1.6A (40 Watts)
Universal AC power supply sold separately, pn LS-AC-WORLD-90VA
External Trigger Input3 - 30 V / max 5 mA
(voltage-free optocoupler)
DIN 41524 5-pin standard plug
Uout = Uin, max 200 mA
Life Cycle> 200,000,000 flashes (@6000 FPM)
Flash Duration< 10 μsec (microseconds)
Flash BrightnessSingle flash 20 megalux @ 30cm (12 inches)
Flash Brightness2500 lux @ 30cm (12 inches), 6000 FPM
Flash Energy2 Joules (2000 mJ @ 900 FPM)

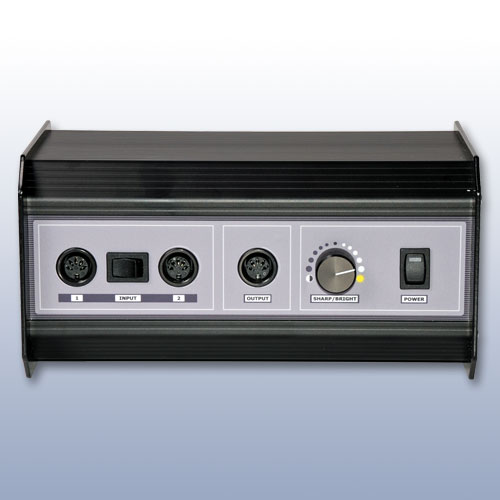

Brightness Adjustment30 - 100% via knob on backside panel
(to optimize brightness for each application)

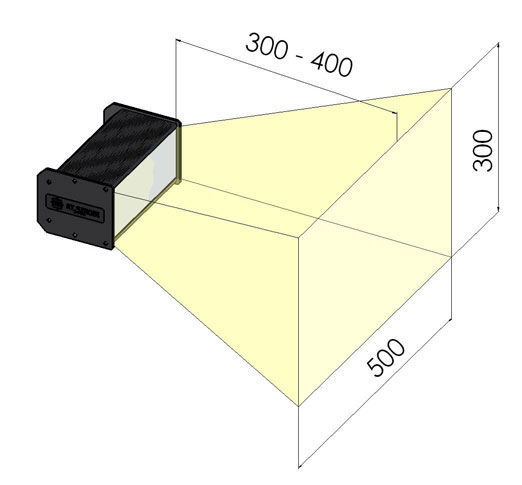

Illumination Areaapprox. 12" x 20" (300 x 500 mm)
Light Colour6000 - 6500 K
Housing MaterialAluminum
Dimensions9.1" x 5.1" x 4.4" (230 x 130 x 112 mm)
Weight1400 g (3 lbs.)
Ambient Temperature0 - 40 °C (32-114 °F)
Storage Temperature-25 - 70 °C (-10 - 125 °F)
Air HumidityMax 95%, non-condensing

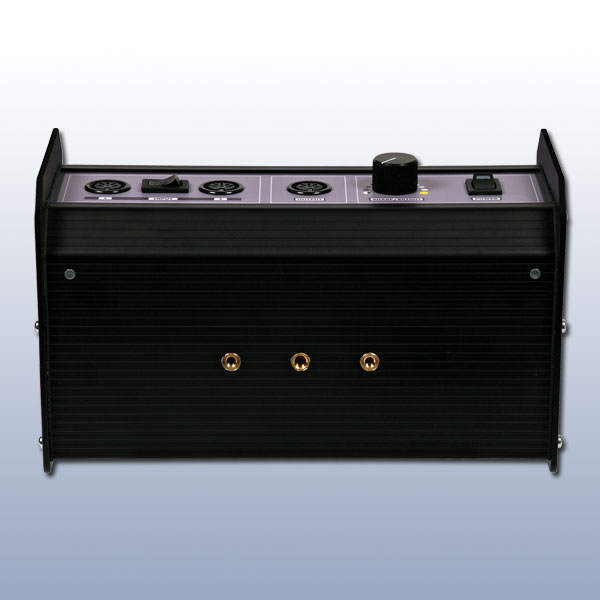

Mounting HolesThreaded 1/4 x 20 unc and 2x M5 holes on bottom side of strobe housing
Warranty1 Year
Mounting HolesLocated on underside of housing:
(1) 1/4 - 20UNC in center
(2) M5 Threaded Inserts (60 mm c:c) outer
Manual Test TriggerPin1 (+24V)
Pin3 (0V)
Jump Pin1 to Pin4
Momentarily Jump Pin3 to Pin5
