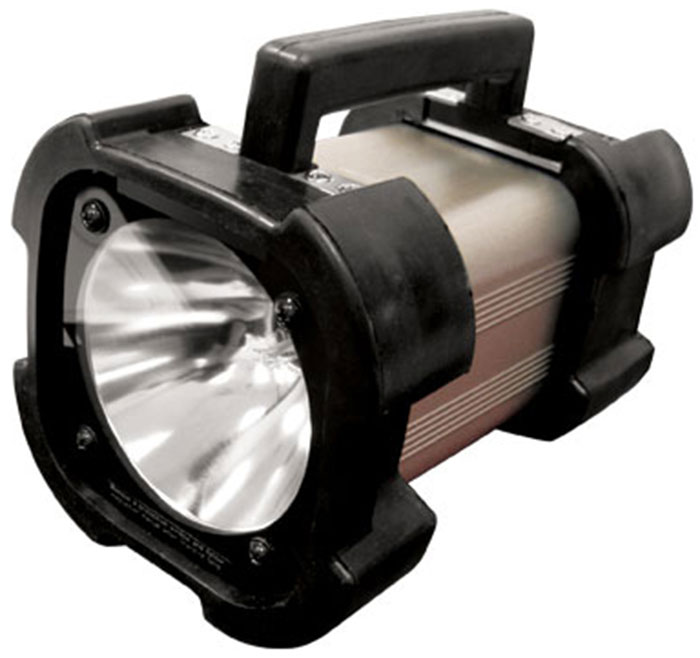

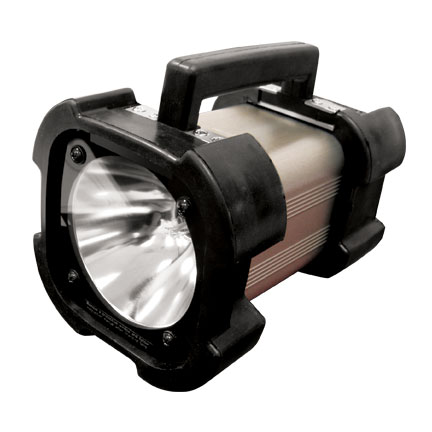

Where powerful illumination and rugged speed measuring accuracy is required for the textile industry, the DT-3011J will perform where other stroboscopes will not. The DT-3011J is used to set injection timing, injection pressure, the timing of shedding and weft running time of weaving machinery.
Units combine rugged NEMA 4X (IP65) housing with high-performance accuracy, special phase shifting, with shock-absorbing components and top-mounted handle, allows the equipment operator maximum flexibility when setting the timing of weaving machinery.
Powered from 110V AC only
- LIMTED RANGE: 200-1,500 RPM/FPM since housing is sealed
- Accepts external trigger input and provides synchronizing pulse output
- Water & Dustproof housing (IP65)
- Phase shift for best view and flash photography
- Hand-held or tripod operation
- Easy-to-operate controls
- Easy-to-read LED display
Flash Range | 200-1,500 FPM |
Internal Signal Range | 200 to 1,500 FPM |
Phase Shift | 0° – 359° / 1° increments |
Accuracy | ±1 digit |
Flash Rate/Phase Angle Setter | Rotary dial |
Display | 4 digit, 10mm high Red LED |
Divide Ratio | 1/1, 1/2, 1/3, 1/4, 2/4 with shift |
Input Signal | High level: 5-24 V pulse Low Level: 0-1 V pulse. 2 msec minimum. Impedance less than 10k Ω |
Input Impedance | 47k |
Display Mode | Phase shift (degree), Tachometer |
Flashtube | Xenon lamp, max 10 W at 1,5000 rpm |
Flashtube Life | 1,200 hours at 1,500 rpm |
Power Requirements | 110V AC, 30 VA |
Power Consumption | 20VA max |
Operating Temp | 32 to 104 °F (0 to 40 °C) |
Dimensions | 149w x 174h x 214d mm |
Weight | 4.2 lb (1.9 Kg) |
Warranty | 2 years |
Included Accessories | 19.68’ (6m) input/power cable with connector, rubber strobe guard with handle |
Item | Description | Price | ||
---|---|---|---|---|
Harsh Environment NEMA 4X (IP65) Stroboscope with Included power 19.68 ft (6m) cable, rubber strobe guard with handle | $990.00 | |||
Harsh Environment NEMA 4X (IP65) Stroboscope with Included power 19.68’ (6m) cable, rubber strobe guard with handle, 230 VAC power - Please contact us for pricing and availability. | $ | |||
REPLACED BY DT-3011J - Harsh Environment NEMA 4X (IP65) Stroboscope with Included power 19.68 ft (6m) cable, rubber strobe guard with handle | $ | |||
Accessories | ||||
Spare Flash Tube for DT-311J and 315P Waterproof Stroboscopes | $96.00 | |||
Carrying Case for DT-300 Series Strobes | $130.00 | |||
Articulating Swing Arm for Stroboscopes | $225.00 | |||
POWER-CABLE-311J | Power Cable for DT-311J Stroboscope | $265.50 |
