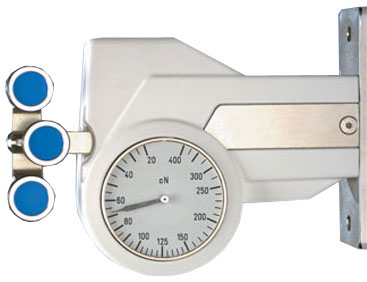

A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2S ideal for the toughest production floor application.
Built-in mounting holes permit fixed installation for continuous in-line use.
- Fixed mount design for continuous measurement
- DX2S' hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min
- Option adjustable "max" & "min" tension detector contacts can provide a low voltage signal when tension exceed user-set limits
- NIST-Traceable calibration available
| Model | Range |
|---|---|
| DX2S-5 | 10-50 g |
| DX2S-12 | 20-120 g |
| DX2S-20 | 20-200 g |
| DX2S-40 | 20-400 g |
| DX2S-SP | 50-1000 g |
| DX2S-EX | 100-1000 g |
| DX2S-200 | 200-2000 g |
| DX2S-500 | 400-5000 g |
| DX2S-1K | 2.5-10 Kg |
| DX2S-2K | 5-20 Kg |
| DX2S-3K | 5-30 Kg |
| DX2S-5K | 5-50 Kg |
| Accuracy | ± 1% of full scale or ± 1 graduation mark on scale |
| Diameter of Scale | 41 mm |
| Maximum Speed | 2000 m/min (standard) 3500 m/min (K) 5000 m/min (HS) |

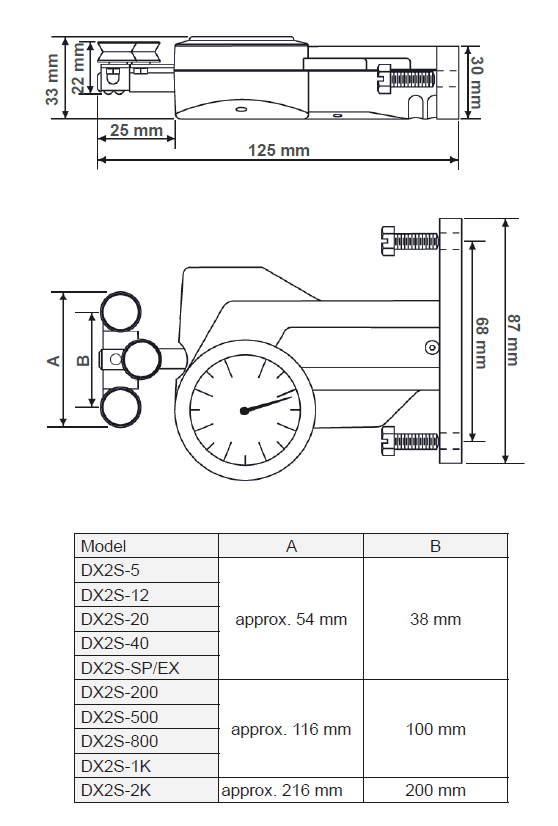

| Outer roller distance, c:c | DX2S-5 to DX2S-EX: 38 mm DX2S-200 to DX2S-1k: 100 mm DX2S-2K: 150 mm DX2S-3K to DX2S-5K: 250 mm |
| Roller Material | Hard-coated aluminum (standard) Hardened steel (ST) Chromed Steel (w) Ceramic (CE) Plastic (PL) |
| Housing Material | Die-cast aluminum |
| Dimensions | 127 x 85 x 45 mm (L x W x H) |
