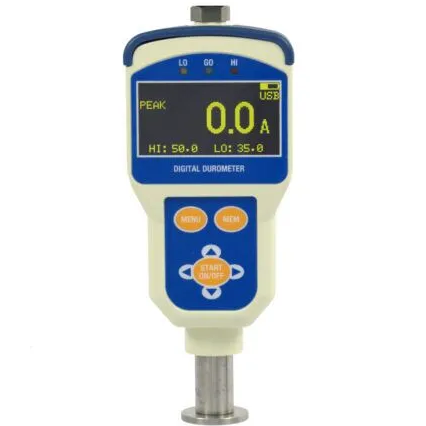

The TKX Digital Durometer with wireless output is a high-quality, easy-to-use instrument for measuring the hardness of rubber and plastics. It features a bright, easy-to-read OLED display, push-button operation, and simple menus. The durable metal housing protects the instrument from damage, and the rechargeable battery provides long-lasting power. The TKX Digital Durometer also includes a calibration certificate traceable to NIST, ensuring accurate results.

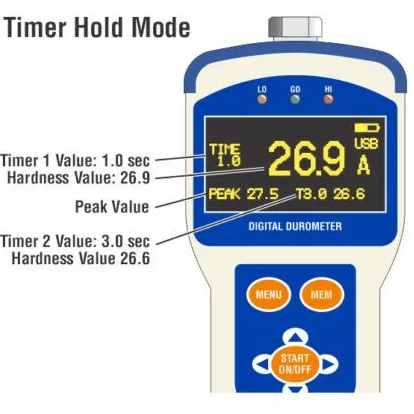

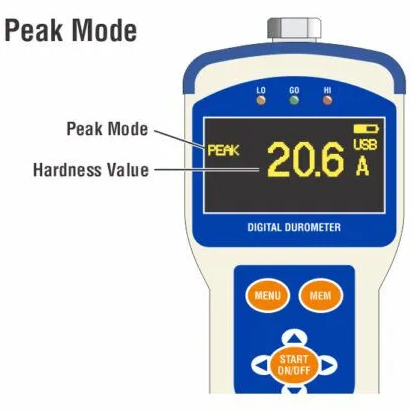

TKX Digital Durometers have three modes; peak, timer hold which records the creep phenomenon* and real time. Auto average averages a user-selectable number of peak readings. Hardness data can be transmitted via USB to PCs or saved in the 400 data memory. Optional SW-1-TK data acquisition software is available. Standard probe and long probe models are available. Operates on an internal rechargeable battery or AC adapter.
*Tendency of the reading to decrease as time elapses after the peak is reached.
- OLED display is visible in dark environments
- Push-button operation and simple menus control programming functions
- Modes: Peak, Single/ Dual Timer Hold and Real Time

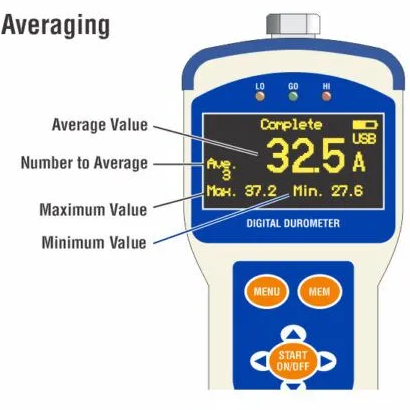

- Auto average– average a user-selectable number of readings.
- Selectable resolution: 1 and 0.1
- Accuracy: ±1 (±2 Type 00)
- 400 data memory
- USB output
- Rugged metal construction, powered by the rechargeable battery or AC adapter
- True compliance to ASTM D2240. Calibration cert traceable to NIST included; optional ISO-17025 certificate available
- Manual test stands and motorized test stands are available.
| Standard Probe | Long Probe | Scale | Standard |
|---|---|---|---|
| TKX-A | TKX-AL | Shore A | ASTM D2240, ISO 868, 7619 |
| TKX-B | TKX-BL | Shore B | ASTM D2240 |
| TKX-C | TKX-CL | Shore C | ASTM D2240 |
| TKX-D | TKX-DL | Shore D | ASTM D2240, ISO 868, 7619 |
| TKX-DO | TKX-DOL | Shore DO | ASTM D2240 |
| TKX-E | TKX-EL | Shore E | ASTM D2240 |
| TKX-O | TKX-OL | Shore O | ASTM D2240 |
| TKX-OO | TKX-OOL | Shore OO | ASTM D2240 |
