The STC has been replaced by the R52. Please click here to view the new model

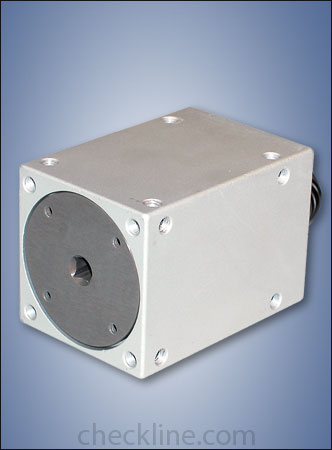

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in.
Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in.
DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE
BGI sold seperately.
- Rugged aluminum housing
- 3 Year Warranty
- May be used for torque tool calibration or as a component of a torque testing system
- NIST-traceable certificate of calibration included

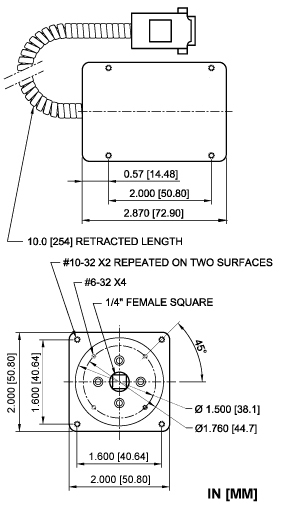

- 1/4" Female Square Drive on all models.
| Model | Capacity | Safe Overload |
|---|---|---|
| STC10Z | 10 oz-in 7 kg-mm 7 N-cm | 0.01 oz-in 0.005 kg-mm 0.005 N-cm |
| STB-20Z | 20 oz-in 14 kg-mm 14 N-cm | 0.02 oz-in 0.01 kg-mm 0.01 N-cm |
| STC-50Z | 50 oz-in 36 kg-mm 35 N-cm | 0.02 oz-in 0.01 kg-mm 0.01 N-cm |
| STC-12 | 12 lb-in 140 kg-mm 135 N-cm | 0.01 lb-in 0.1 kg-mm 0.1 N-cm |
| STC-50 | 50 lb-in 580 kg-mm 570.0 N-cm | 0.05 lb-in 0.5 kg-mm 0.5 N-cm |
| STC-100 | 100 lb-in 1150 kg-mm 1150 N-cm | 0.1 lb-in 1 kg-mm 1 N-cm |
| Accuracy | ± 0.35% of full scale ±1 digit + BGI |
| Weight | 1.2 lbs (0.5 kg) |
| Warranty | 3 years |
| Item | Description | Price | ||
|---|---|---|---|---|
$ | ||||
$ | ||||
$ | ||||
$ | ||||
$ | ||||
$ | ||||
| Accessories | ||||
AC1006 | Mounting kit, R52 / STC, table top | $75.00 | ||
AC1014 | Jacobs chuck for R52 / STC, 0.062"-0.375" dia. | $175.00 | ||
