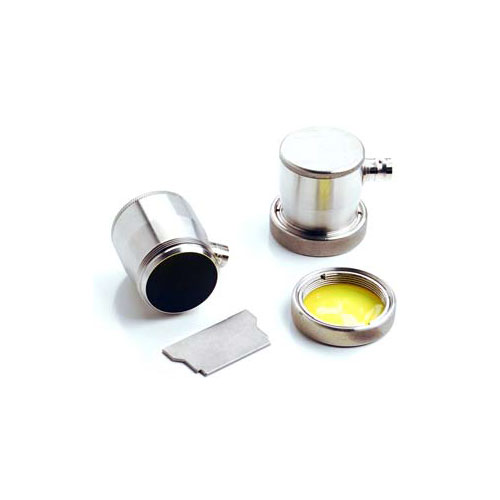

Replaceable membrane protected contact transducers.

Used for rough surfaces, castings (provides better contact)

Models

Use the options below to filter the table to find the transducer you need. Clicking on the model will highlight the item in the Buy Now.

Diameter

Frequency

Connector

Damping

Composite

Entry

Model	Element Size	Frequency	Damping	Composite	Connector	Connector Entry
T-8041-0868	0.500" ⌀	1.0 Mhz	None	Yes	BNC	Side
T-8071-0868	1.00" ⌀	1.0 Mhz	None	Yes	BNC	Side
T-8041-1878	0.500" ⌀	2.25 Mhz	High Gain	No	BNC	Side
T-8071-1878	1.00" ⌀	2.25 Mhz	High Gain	No	BNC	Side
PSLF5025	0.500" ⌀	2.25 Mhz	None	Yes	BNC	Side
PSLF1025	1.00" ⌀	2.25 Mhz	None	Yes	BNC	Side
T-8041-9868	0.500" ⌀	3.5 Mhz	None	Yes	BNC	Side
T-8071-9868	1.00" ⌀	3.5 Mhz	None	Yes	BNC	Side
T-8041-2878	0.500" ⌀	5.0 Mhz	High Gain	No	BNC	Side
T-8071-2878	1.00" ⌀	5.0 Mhz	High Gain	No	BNC	Side
PSLF5050	0.500" ⌀	5.0 Mhz	None	Yes	BNC	Side
PSLF1050	1.00" ⌀	5.0 Mhz	None	Yes	BNC	Side

Dimensions

Element Size (Dia.)	A	B
.500"	1.250"	1.180"
1.00"	1.500"	1.580"
