The SJR has been replaced by the R04. Please click here to view the new model

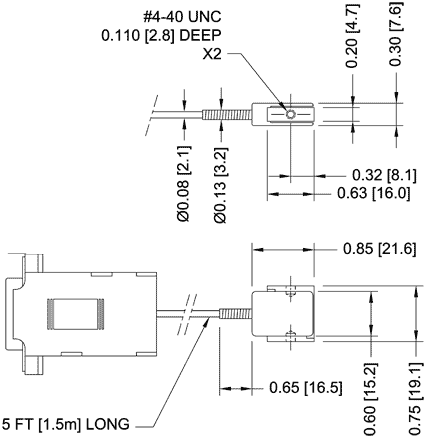

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series SJR is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions: 0.85" x 0.30" x 0.75" (21.6 mm x 7.6 mm x 19.1 mm). The sensors feature outstanding mechanical overload protection of up to 1,000% percent of full scale for most applications and threaded holes on two sides for the mounting of attachments or implements.
Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series SJR is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions: 0.85" x 0.30" x 0.75" (21.6 mm x 7.6 mm x 19.1 mm). The sensors feature outstanding mechanical overload protection of up to 1,000% percent of full scale for most applications and threaded holes on two sides for the mounting of attachments or implements.
REQUIRES connection to BGI REMOTE SENSOR FORCE GAUGE, ordered separately
- Member of the BGI family of interchangeable sensors
- Weight: 0.015 lbs (0.007 kg)
- Measures tensile and compressive forces
- Mechanical overload protection of up to 1,000% of full scale for all models, 200% for SJR50 and SJR100 when used in tension only
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.2% of full scale ±1 digit + BGI
- "Personality module" holds all calibration and configuration data
- Warranty: 3 years
| Ranges | Resolution | |
|---|---|---|
| SJR-025 | 0.25 lb 100 gF 1 N | 0.0001 lb 0.05 gF 0.0005 N |
| SJR-05 | 0.5 lb 250 gF 2.5 N | 0.0002 lb 0.1 gF 0.001 N |
| SJR-2 | 2 lb 1 kgF 10 N | 0.001 lb 0.0005 kgF 0.005 N |
| SJR-5 | 5 lb 2.5 kgF 25 N | 0.002 lb 0.001 kgF 0.01 N |
| SJR-10 | 10 lb 5 kgF 50 N | 0.005 lb 0.002 kgF 0.02 N |
| SJR-20 | 20 lb 10 kgF 100 N | 0.01 lb 0.005 kgF 0.05 N |
| SJR-50 | 50 lb 25 kgF 250 N | 0.02 lb 0.01 kgF 0.1 N |
| SJR-100 | 100 lb 50 kgF 500 N | 0.05 lb 0.02 kgF 0.2 N |
| Accuracy: | ± 0.2% of full scale ±1 digit + BGI |
| Weight: | 0.007 kg (0.015 lbs) |
| Cable Length | 5 ft (1.5 m) |
| Warranty: | 3 years |
| Required Accessory | REQUIRES connection to BGI REMOTE SENSOR FORCE GAUGE, ordered separately |
| Item | Description | Price | ||
|---|---|---|---|---|
SJR-025 Miniature Force Sensor | $995.00 | |||
SJR-05 Miniature Force Sensor | $995.00 | |||
SJR-2 Miniature Force Sensor | $995.00 | |||
SJR-5 Miniature Force Sensor | $995.00 | |||
SJR-10 Miniature Force Sensor | $995.00 | |||
SJR-20 Miniature Force Sensor | $995.00 | |||
SJR-50 Miniature Force Sensor | $995.00 | |||
SJR-100 Miniature Force Sensor | $995.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
