The SBC has been replaced by the R02. Please click here to view the new model

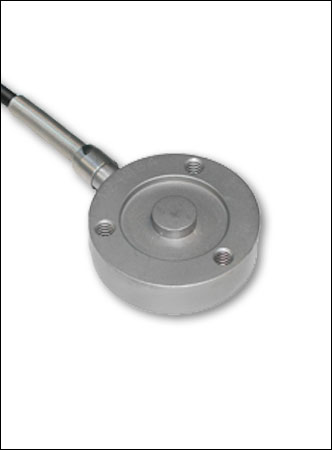

Button sensor for compressive loads of up to 10,000 lbs. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints.
DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE
- Member of the BGI family of interchangeable sensors
- Stainless steel construction
- NIST-traceable certificate of calibration included
- "Personality module" holds all calibration and configuration data
- Measures tensile and compressive forces
- for compressive loads of up to 10,000 lbs
| Model | Capacity | Resolution |
|---|---|---|
| SBC100 | 100 lb 50 kgF 500 N | 0.05 lb 0.02 kgF 0.2 N |
| SBC200 | 200 lb 100 kgF 1000 N | 0.1 lb 0.05 kgF 0.5 N |
| SBC500 | 500 lb 250 kgF 2500 N | 0.2 lb 0.1 kgF 1 N |
| SBC1000 | 1000 lb 500 kgF 5000 N | 0.5 lb 0.2 kgF 2 N |
| SBC2000 | 2000 lb 1000 kgF 10000 N | 1 lb 0.5 kgF 5 N |
| SBC5000 | 5000 lb 2500 kgF 25 kN | 2 lb 1 kgF 0.01 kN |
| SBC10000 | 10000 lb 5000 kgF 50 kN | 5 lb 2 kgF 0.02 kN |

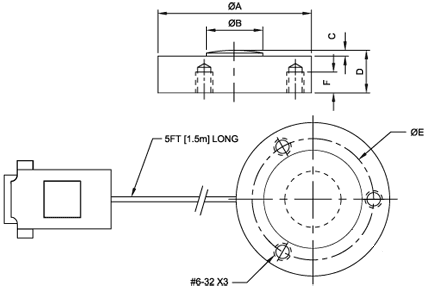

| Model | ⌀A | ⌀B | C | D | ⌀E | F | ⌀G |
|---|---|---|---|---|---|---|---|
| SBC100 SBC200 SBC500 SBC1000 SBC2000 |
1.23 [31.3] | 0.32 [8.1] | 0.05 [1.3] | 0.39 [9.9] | 1.0 [25.4] | THRU | 0.83 [21.1] |
| SBC5000 SBC10000 |
1.48 [37.6] | 0.43 [10.9] | 0.07 [1.8] | 0.62 [15.8] | 1.25 [31.8] | 0.25 [6.4] | 1.08 [27.4] |
| Accuracy | ± 0.5% of full scale ±1 digit + BGI |
| Weight | 0.4 lbs (0.2 kg) |
| Warranty | 3 years |
| Item | Description | Price | ||
|---|---|---|---|---|
SBC100 Compression Force Sensor | $745.00 | |||
SBC200 Compression Force Sensor | $745.00 | |||
SBC500 Compression Force Sensor | $745.00 | |||
SBC1000 Compression Force Sensor | $745.00 | |||
SBC2000 Compression Force Sensor | $745.00 | |||
SBC5000 Compression Force Sensor | $745.00 | |||
SBC10000 Compression Force Sensor | $745.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
