SA700C Wireless Transmitter

Made in UK

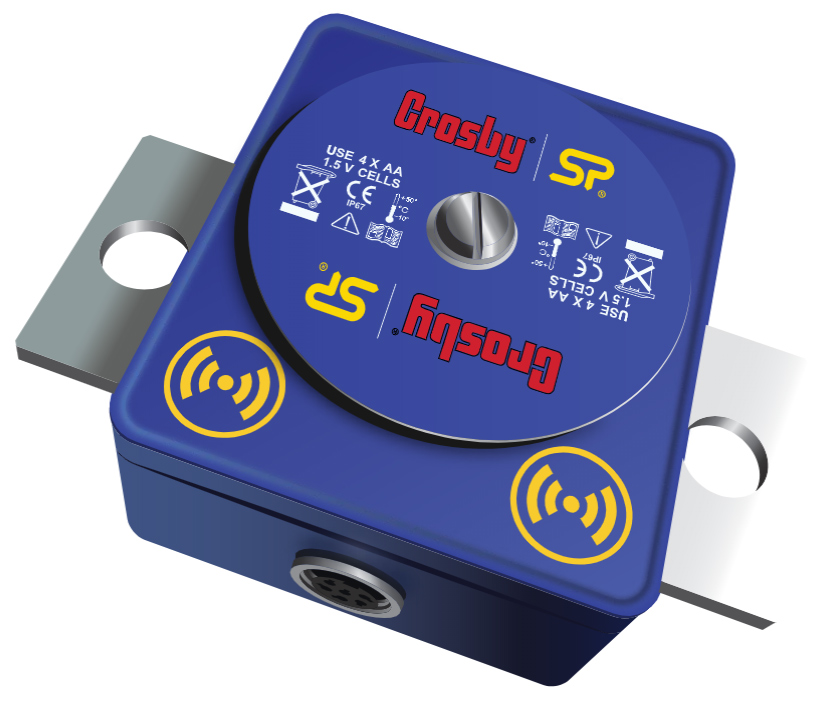

SA700C Wireless Transmitter
Click images to enlarge.
The SA700C transmitter connects to strain gauge transducers such as load cells, torque sensors and pressure transducers allowing them to form part of a Straightpoint wireless system.

Load data from the SA700C can be received by multiple receivers that include SW-HHP handheld, SW-MWLC software or our range of wireless accessories. The load data transmitted by the SA700C has been designed for battery operation and supports an ultra low-power sleep mode whilst offering class leading wireless coverage and range. Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications.

Housed in an aerospace grade aluminium enclosure and sealed to IP67 / NEMA6 with no external antennae the SA700C provide a flexible solution to your wireless load cell requirements.

Request Quote

Please complete the reCAPTCHA to verify that you are a Human.
Please enable javascript in order to submit this form.

Thank You

Thank you for your quote request, we will contact you within 1-2 business days.

There was an error submiting the form. Please try again.

Related Products

STC Tension and Compression Load Cell
Click image for more info
STC
Threaded Tension and Compression Load Cell
SW-MWLC Multiple Wireless Load Cell Controller Software
Click image for more info
Multiple Wireless Load Cell Controller Software
- Display and logs data up to 100 Straightpoint wireless load cells

Downloads

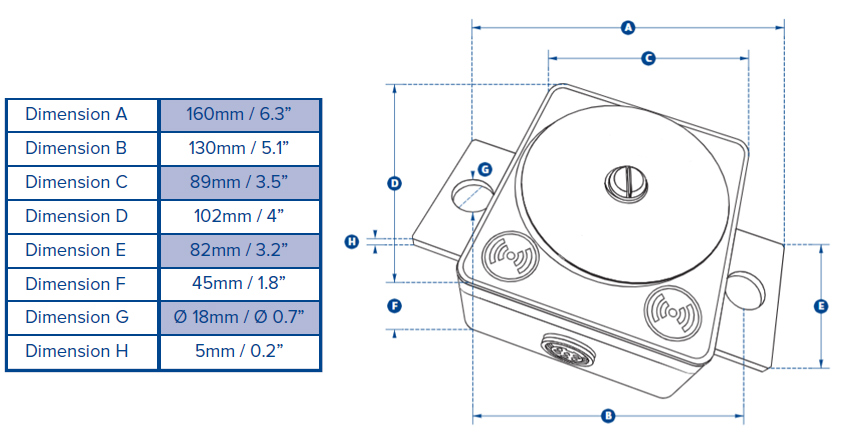

Dimensions

Specifications

Battery Type4 x AA
Battery Life1200Hrs continuous
Operating Temp-10 to +50 °C / 14˚ to 122˚F
ProtectionIP67 / NEMA6
Frequency2.4GHz
Range700 metres / 2300 feet (if bluetooth 100m/328ft)
Data Rate3Hz - up to 200Hz can be ordered for dynamic load monitoring applications
Max Sensitivity3.2mv/v
Minimum gauge resistance85Ω
Transmit Power10mW
L x W x H102x89x45 mm /4.02x3.5x 1.77 inches
ConnectorBinder 423 series, 6 pole female socket
