MR02-5000 - Force sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN DISPLAY SOLD SEPARATELY

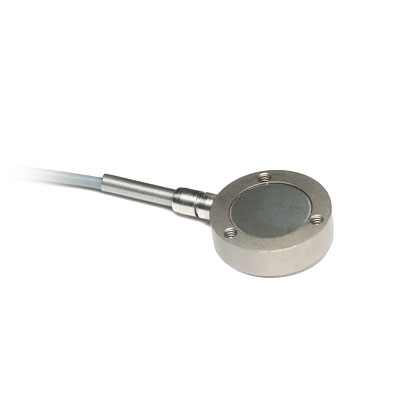

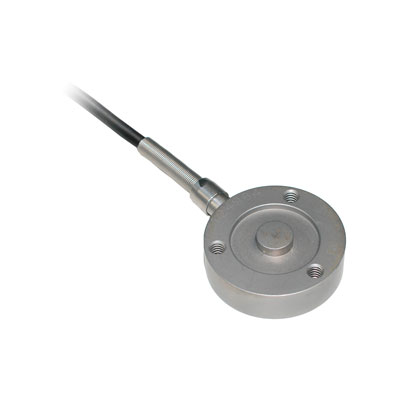

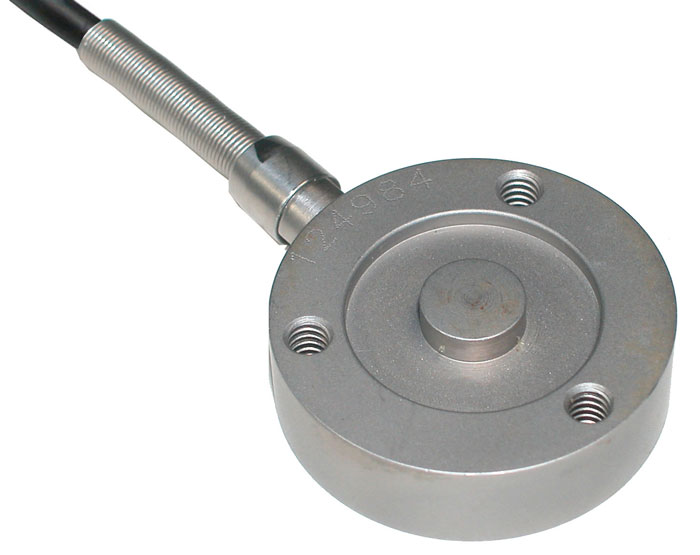

Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the R02 is ideal for heavy duty applications with space constraints.

Features

Show with: Series 5i / Series 7i Series 3i

Model	lbf	ozf	gf	kgf	N	kN
MR02-100	100 0.05100 0.1	1600 1N/A	50000 20N/A	50 0.0250 0.05	500 0.2500 0.5	--
MR02-200	200 0.1200 0.2	3200 2N/A	-N/A	100 0.05100 0.1	1000 0.51000 1	1 0.0005-
MR02-500	500 0.2500 0.5	8000 5N/A	-N/A	250 0.1250 0.2	2500 12500 2	2.5 0.001-
MR02-1000	1000 0.51000 1	16000 10N/A	-N/A	500 0.2500 0.5	5000 25000 5	5 0.002-
MR02-2000	2000 12000 2	32000 20N/A	-N/A	1000 0.51000 1	10000 510000 10	10 0.005-
MR02-5000	5000 25000 5	-N/A	-N/A	2500 12500 2	25000 10-	25 0.0125 0.02
MR02-10000	10000 510000 10	-N/A	-N/A	5000 25000 5	50000 25-	50 0.0250 0.05

N/A = Series 3i is unable to display these units

Click image for more info

Series-3i

Force and Torque Indicator

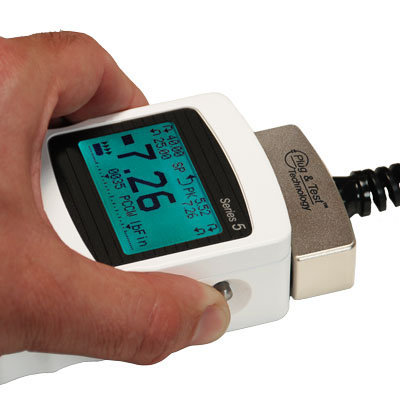

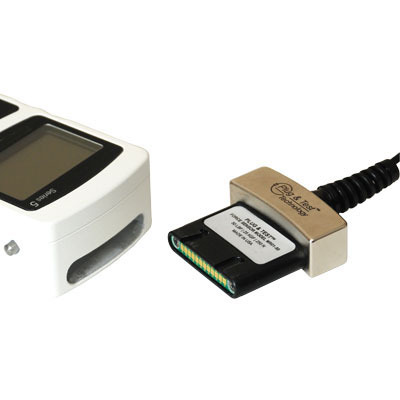

- Interchangeable force and torque sensors through Plug & Test™technology

- USB data output

Click image for more info

Series-5i

Advanced Force/Torque Indicator

- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

Click image for more info

Series-7i

Professional Force and Torque Indicator

- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

Accuracy	± 0.5% of full scale ±1 digit + indicator
Weight	0.4 lbs (0.2 kg)
Warranty	3 years

	Item	Description	Price
	MR02-5000	Force sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN DISPLAY SOLD SEPARATELY	$1,000.00

In stock

1 Week Lead Time (Estimated)

2-3 Week Lead Time (Estimated)

Lead Time Varies, Please contact us for availability.

Unavailable
