The probe can be swapped out with any other PosiTector probe allowing the device to act as several different measuring instruments including but not limited to a dew point meter, a surface profiler, a thickness gauge, and a hardness durometer. See related products for a more inclusive list.
- Button-activated laser pointer for accurate targeting
- Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
- Statistics Scan mode - continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
- Certificate of Calibration showing traceability to NIST included (Long Form)
- 5.7:1 distance to spot ratio - ideal for measuring large areas
- Smart Trend indicators identify rising, falling or stable readings
Simple
- Surface temperature is constantly updated and displayed simultaneously
- Button-activated laser pointer for simple, accurate targeting
- Enhanced one-handed menu navigation
- RESET feature instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant - weatherproof
- Non-contact sensor won't get caught or worn
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST included (Long Form)
- Fast response precision sensor provides accurate, repeatable readings
- 5.7:1 distance to spot ratio
- Smart Trend indicators identify rising, falling or stable readings
Versatile
- PosiTector body accepts all PosiTector IRT, DPM, 6000, 200, RTR, SPG, SST, SHD and UTG probes easily converting from a infrared thermometer, to a dew point meter, coating thickness gage, surface profile gage, soluble salt tester, Shore hardness durometer or ultrasonic wall thickness gage
- Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
- High contrast LCD with backlit display
- Auto rotating display with lock to prevent unintended rotations
- Uses alkaline or rechargeable batteries (built-in charger)
Powerful
- Statistics Scan mode — continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
- Screen Capture – save screen images for record keeping and review
- Pause function allows readings to be manually recorded
- HiLo alarm audibly and visibly alerts when readings exceed user-specified limits
- Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
- PosiSoft USB Drive — stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Software Updates via web keep your gage current
- Software Solutions for viewing, analyzing & reporting data
Standard Models
Includes ALL features shown above plus...- Storage of 250 readings per probe - stored readings can be viewed or downloaded
Advanced Models
Includes ALL features shown above plus...- Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches
- Auto Sub-Batch—automatically create sub-batches after the required number of readings are taken
- Live graphing of measurement data
- Batch/Reading annotation—add notes and change batch names with onscreen QWERTY keyboard
- Store thickness, profile, environmental, salt contamination, hardness and wall thickness measurements in individual batches
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Answer
An infrared thermometer measures the thermal radiation emitted by an object without requiring contact.
Answer
Unlike the PosiTector DPM IR, the PosiTector IRT measures surface temperature only. The PosiTector DPM family measures a number of climatic parameters including relative humidity, air temperature and surface temperature allowing it to calculate dew point temperature and the all-important difference between surface temperature and dew point temperature (Ts-Td) — a vital parameter for industrial painters.
The PosiTector IRT has a larger distance to spot ratio and a button activated laser pointer for precise and accurate surface temperature measurement.
Answer

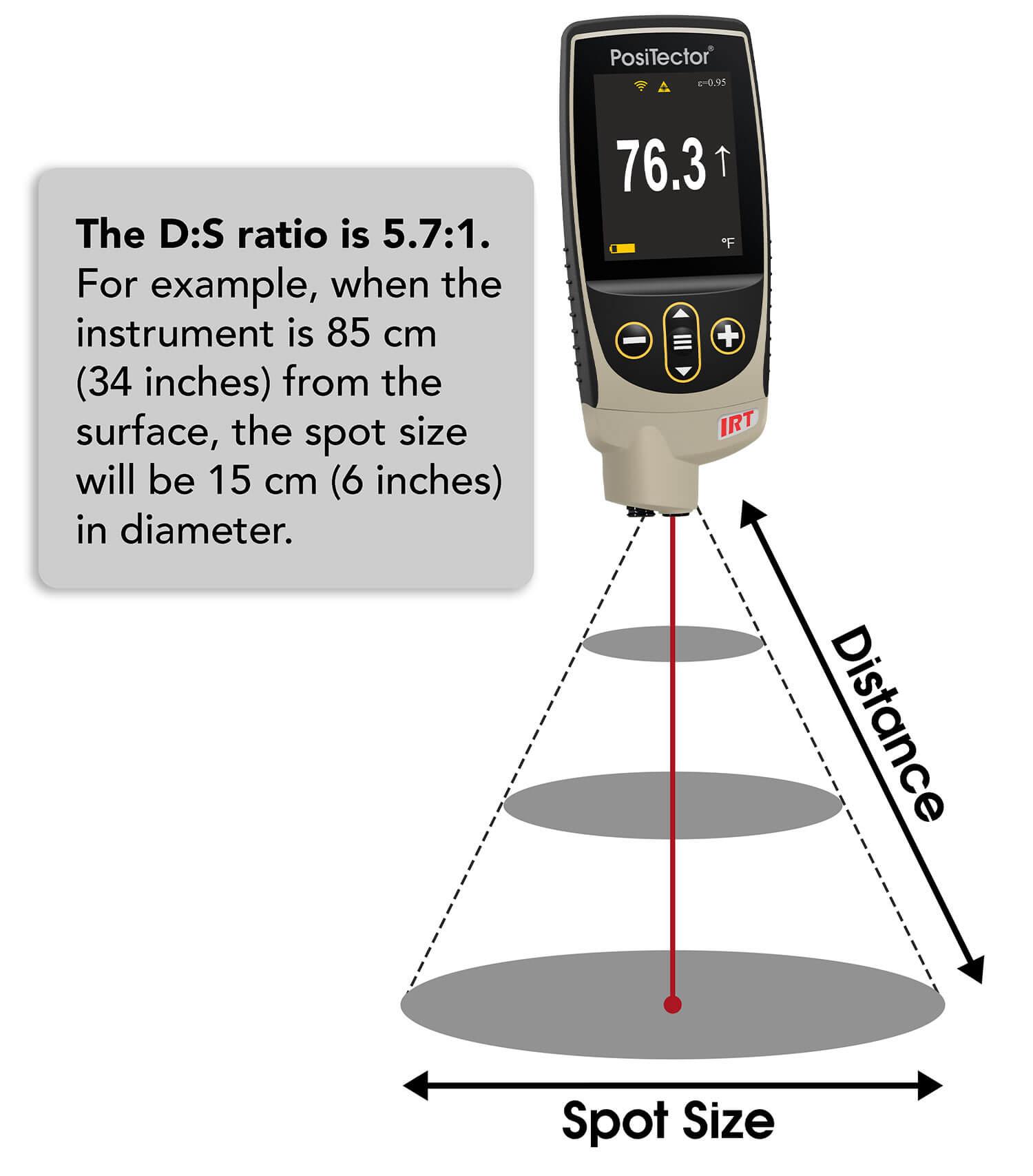

The D:S ratio of the PosiTector IRT is 5.7:1. For example, when the instrument is 85 cm (34 inches) from the surface, the spot size will be 15 cm (6 inches) in diameter. The temperature reported will be an average of the temperatures contained within the spot size. The greater the spot size, the more information will be gathered and averaged, giving you a better estimate of the area’s true temperature. A lower D:S ratio is advantageous when measuring large areas.
Answer
Emissivity refers to a material’s ability to emit infrared energy, compared to an ideal black surface at the same temperature. The PosiTector IRT has built-in emissivity settings for certain materials as well as user-adjustable emissivity options. Select from a list of preset emissivity options, manually adjust the emissivity value or adjust to a known temperature.
Most organic and painted surfaces have an emissivity of around 0.95. Shiny or reflective surfaces can be difficult to measure with an infrared thermometer, as they tend to reflect ambient infrared energy instead of emitting their own. To compensate for this, cover such surfaces with flat paint or a piece of electrical tape. Allow the paint or tape to acclimate to the surface’s temperature and take a measurement over the paint or tape.
Answer
Yes, but adjusting the emissivity setting is critical. Depending on surface treatment, metals such as blasted steel can have a broad range of emissivity values. Adjusting to a known temperature (measured by a direct contact surface temperature probe) on a representative sample will assist in obtaining an accurate emissivity value. Some blasted surfaces can reflect nearby sources of infrared energy, impacting results. We recommends situational testing be done to determine accuracy.
Answer
An infrared surface temperature probe measures surface temperature from a distance without contacting the surface. An IR surface temperature thermometer is useful for measuring temperatures in areas where conventional sensors will not work including hard to reach areas and moving parts. Also ideal for measuring on objects whose temperature is above the recommended range for direct contact sensors or when contact with a sensor would damage the surface as is the case for freshly sprayed powder.
The 5.7:1 distance to spot ratio of the PosiTector IRT will average the temperature over a larger area and is ideal for quickly scanning large steel structures.
| Temperature Range | -70° to 380° C (-94° to 716° F) |
| Accuracy | ± 1°C + 10%* |
| Resolution | 0.1°C (0.1°F) |
| Laser Pointer | Class 2 < 1 mW |
| Distance to Spot Ratio (D:S) | 5.7:1 |
| Emissivity | Adjustable |
| Response Time | <500 µs (95% response) |
| Spectral Response | 2 - 14 µm |
| Size | 137 x 61 x 31 mm (5.4" x 2.4" x 1.1") |
| Weight | 140 g (4.9 oz.) without batteries |
| Item | Description | Price | ||
|---|---|---|---|---|
PosiTector Infrared Thermometer with Laser Pointer, Standard Kit IRT1-G | $520.00 | |||
PosiTector Infrared Thermometer with Laser Pointer, Advanced Kit - IRT3-G | $970.00 | |||

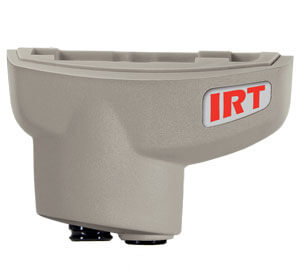

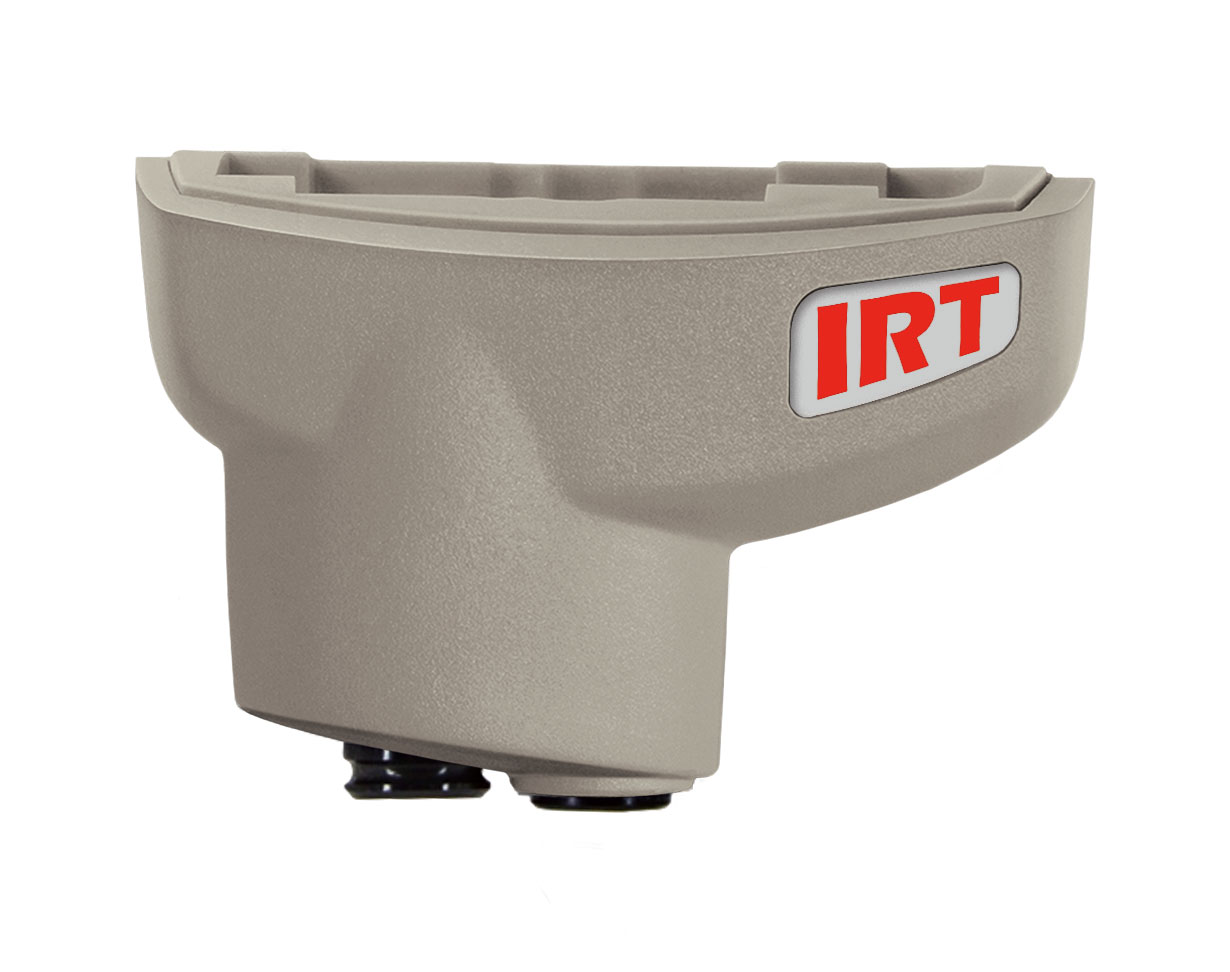

PosiTector® IRT Infrared Thermometer with Laser Pointer, Probe only Display sold separately | $195.00 | |||
| Accessories | ||||
Bluetooth Printer for PosiTector Series Gauges | $335.00 | |||
USBAC | AC Power Adapter, 100-230V for PosiTector 6000 Display | $45.00 | ||
LENSSHIELD | Protective Lens Shields, Pack of 5 for PosiTector® 6000 Display | $10.00 | ||
Plastic Inspection Case (small) | $40.00 | |||
