DISCONTINUED AS OF MAY 2018
Magnetic Pull-Off Coating Thickness GaugeMeasuring Range in Steel
1 - 30 mils
25 - 700 μm

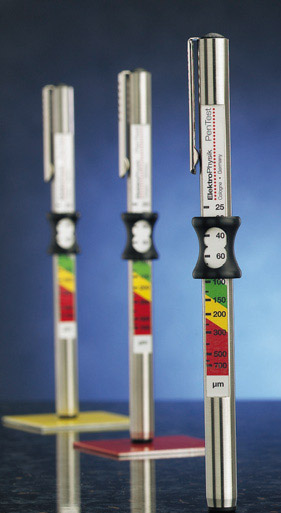

The PenTest magnetic pull-off coating thickness gauge operates according to the magnetic attraction principle for non-destructive, quick and easy measurement on coatings such as paint, plastics, enamel on steel.
Featuring a patented HOLD mechanism, the PenTest gauge keeps the thickness indicator in place for easy reading. The HOLD mechanism can be used as a “memory” for the last reading. Applications include quick-check measurements on steel constructions, painted steel panels and all kinds of steel substrates. Measuring principle according to DIN EN ISO 2178. No batteries or other power supply required.
- Simple device to measure paint on steel
- Colored coded zones for quick go/no-go quality assessment
- Doesn't require power source
| Measuring Range | 25 - 700 μm / 1 - 30 mils |
| Minimum measuring area | 25 mm / 1in dia. |
| Accuracy | ± 10% of reading |
| Dimensions | 151 mm / 6in length, 10 mm dia. |
| Temperature Range | -10 - + 80°C |
