4 Models with Flashrates up to 200 Hz

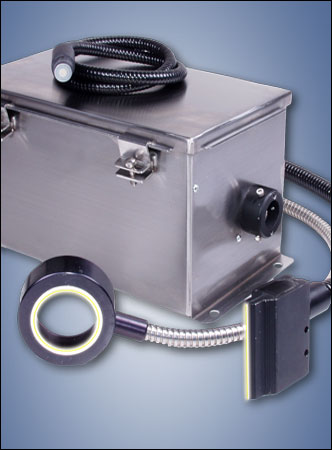

The MV series strobe illumination system is designed for harsh environments. This series of stroboscopes has a high output, long life, and outstanding reliability that won’t fail in demanding applications.
- Variable intensity control
- The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR)
- Industries highest light output per watt
- Custom versions for specific applications and OEM version available. Inquire
| MODEL | MV-6010 | MV-6020 | MV-6060 | MV-60200 |
| Spectral Bandwidth |
Standard: 400-850 nm Custom: 225-1100+ nm |
|||
| Radiometric Light Output | 210mJ | 120mJ | 50mJ | 25mJ |
| Flashrate in Hz @ 600V | 10 max | 25 max | 75 max | 300 max |
| Pulse duration @ 1/3 peak | 30 µsec | 15 µsec | 10 µsec | 7 µsec |
| Fiber bundle outside diameter | 1.0 inch (25mm) max | |||
| Electrical Specifications | ||||
| Input Voltage | 120/230VAC ±10%, 50/60Hz | |||
| Input Power | 60 Watts | |||
| Trigger Input | +5V, 20mA, 10-100µsec pulse (into an optoisolator with internal 150 ohms nominal series resistor) | |||
| Flash Lamp Voltage (Factory Set) | 600 VDC | |||
| Discharge capacitor: | 30 µF | 12 µF | 4 µF | 1 µF |
| Input energy per flash @ 600V | 5.41 joules/flash | 2.16 joules/flash | 0.72 joules/flash | 0.18 joules/flash |
| Delay between flash command and light output | 10 µsec (typ) | |||
| Ext. ref. voltage | 1 to 6 volts DC (V0-Vref x 60) | |||
| General Specifications | ||||
| Storage Temperature | -40 - 90° C | |||
| Operating Temperature | 0 - 40° C | |||

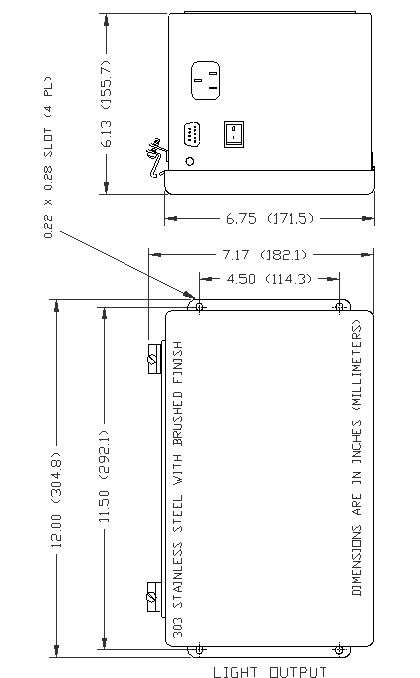

| Dimensions | See drawing above | |||
| Weight | 13.4 lbs (6 Kg) | |||
Please inquire: 800-645-4330
| Item | Description | Price | ||
|---|---|---|---|---|
MV-6010 Machine Vision Stroboscope - External Controls/Switches - Please contact us for pricing and availability. | $ | |||
MV-6020 Stroboscope - Please contact us for pricing and availability. | $ | |||
MV-6060 Stroboscope - Please contact us for pricing and availability. | $ | |||
MV-60200 Stroboscope - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
FH-MV6000 | Spare / Replacement Flash lamp and Reflectory assembly | $335.00 | ||
