LoadConnect Multiple Wireless Load Cell Controller (SW-MWLC) software packages are versatile, user friendly, and offer digital load cell control, display and data logging tools. Crosby Straightpoint LoadConnect connected to BaseStation is a cloud-based solution to monitor loads and line tensions from any distance and from anywhere in the world. Each BaseStation can connect to up to 16 load cells simultaneously and wirelessly transmit data to LoadConnect and via SMS to your mobile phone.
Install your BaseStation on-site connected to most Crosby Straightpoint cabled or wireless loadcells. BaseStation transmits data to the cloud and then to your LoadConnect software and via SMS to your phone for simple data alerts.

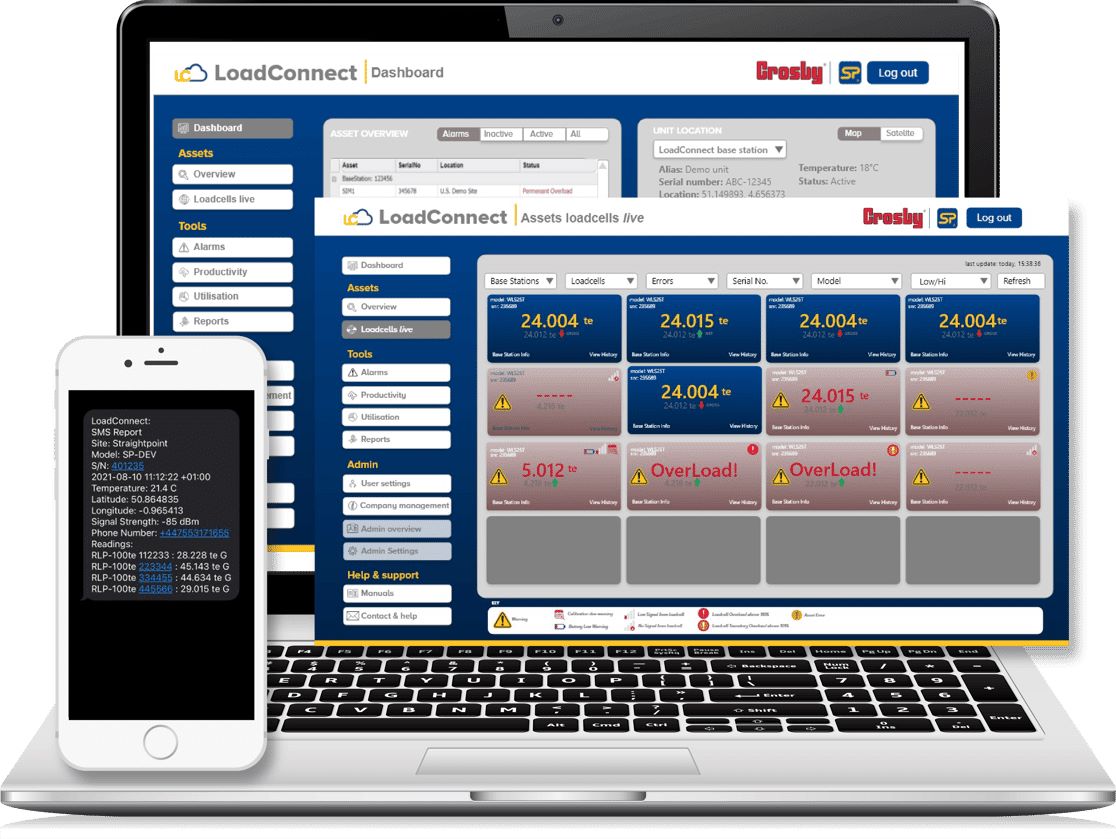

View live load data, load alerts, share reports, view productivity and utilisation from anywhere in the world via LoadConnect and SMS simple phone alerts.
- Dashboard overview
- Live data to your PC or phone – quickly be alerted to errors on loads
- Location map – know exactly where your asset is located
- Productivity and Utilization graphs
- Regular reporting direct to email – for analysis
- SMS alerts
- Connect to BOLT to monitor tension on cables
- Connect to SP load cells to monitor loads
- Cloud based solution to monitor loads
- Reduce site visits
- Improve productivity
- Faster reaction and collaboration
- Protect assets
- Improve worksite safety
- Monitor lifting projects from across the globe
| Specification | LCBS-N | LCBS-W |
|---|---|---|
| Required Power Supply | 9 to 28 V DC | 9 to 28 V DC |
| Radio frequency | 2.4 GHz (License Free) | 2.4 GHz (License Free) |
| Maximum number of Loadcells | 16 | 16 |
| Range | Up to 500 m / 1640 ft | Up to 500 m / 1640 ft |
| Operating temperature | -10 to +50 °C / 14 to 122˚F | -10 to +50 °C / 14 to 122˚F |
| Backup battery life | 8 hours | 8 hours |
| Input option | 1x 4-20mA (2 wire) OR 1x mV/V & Wireless | 1x 4-20mA (2 wire) OR 1x mV/V & Wireless |
| Weight | 2.75 kg / ~6lbs | 2.75 kg / ~6lbs |
| Network supported | 4G/3G | WiFi |
| Frequency band | LTE-TDD B34/B38/B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66 UMTS/HSPA+ B1/B2/B4/B5/B6/B8/B19 | N / A |
| SIM type | Micro SIM (not included) | N / A |
| Alert functionality | SMS (up to 3 pre-defined numbers) Online Dashboard | Online dashboard only (No SMS) |
| IP Rating | IP67/NEMA6 | IP67/NEMA6 |
| Dimension | 560 x 260 x 90 mm - antennas included | 560 x 260 x 90 mm - antennas included |
