The type "J" and "K" Pocket Dial Thickness Gauges are available with either the Imperial or the Metric dial face. Both are supplied with flat contact points 6.35 mm Ø.
The instruments can easily be set to zero by turning the knurled bezel.
- Comes with standard contact point, 6.35mm diameter, flat.
- Accuracy according to manufacturing standard 0.0500.9.0004 (hysteresis fu however not checked).
- Made in Germany
| Model | Resolution | Range | Jaw Depth | Lifting Device | Contact points mm* |
|---|---|---|---|---|---|
| Metric | |||||

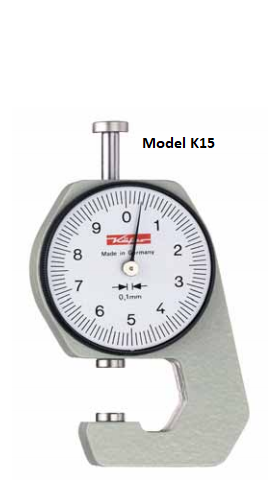

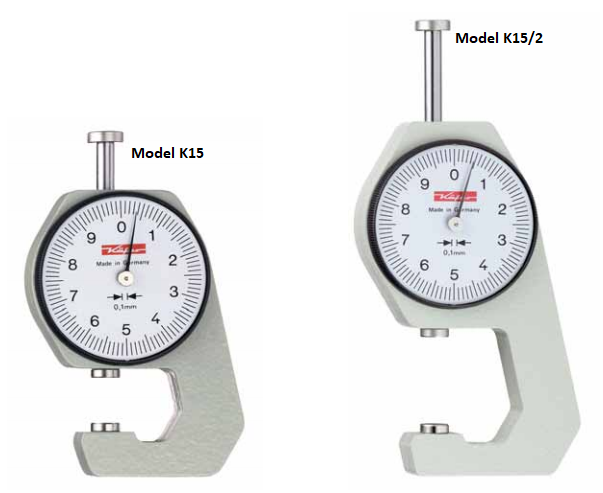

| K15M | 0.1 mm | 10 mm | 15 mm | No | 6.35 Ø flat* |

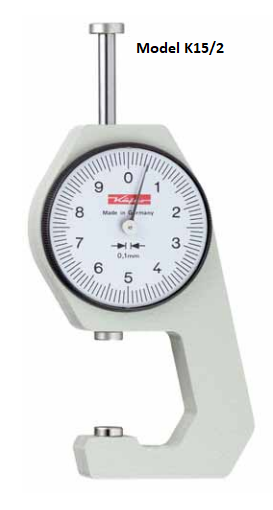

| K15/2M | 0.1 mm | 20 mm | 15 mm | No | 6.35 Ø flat* |

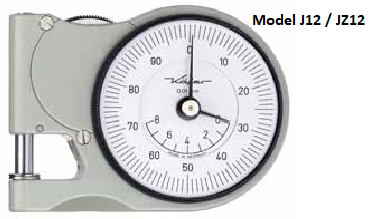

| J12M | 0.01 mm | 8 mm | 12 mm | Yes | 6.35 Ø flat* |

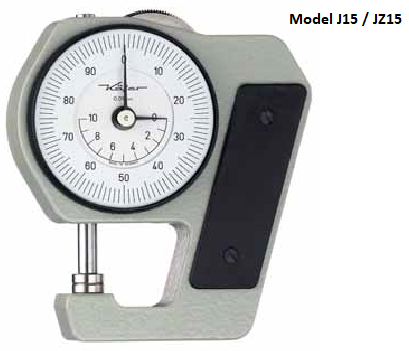

| J15M | 0.01 mm | 10 mm | 18 mm | Yes | 6.35 Ø flat* |
| J45M | 0.01 mm | 10 mm | 45 mm | Yes | 6.35 Ø flat* |
| Imperial | |||||
| JZ12 | |||||
| JZ15 | |||||
| JZ45 | |||||
| KZ15 | 0.4 inch | 0.6 inch | No | 6.35 Ø flat* | |
| KZ15/2 | 0.8 inch | 0.6 inch | No | 6.35 Ø flat* |
| Item | Description | Price | ||
|---|---|---|---|---|
JZ12 | Pocket Analog Thickness Gauge, 0.3 inch Range, 0.5 inch Depth - Please contact us for pricing and availability. | $ |
