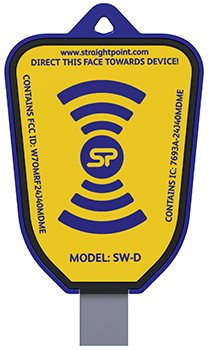

INSIGHT software, supplied with the SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.
Insight has four (4) main features:

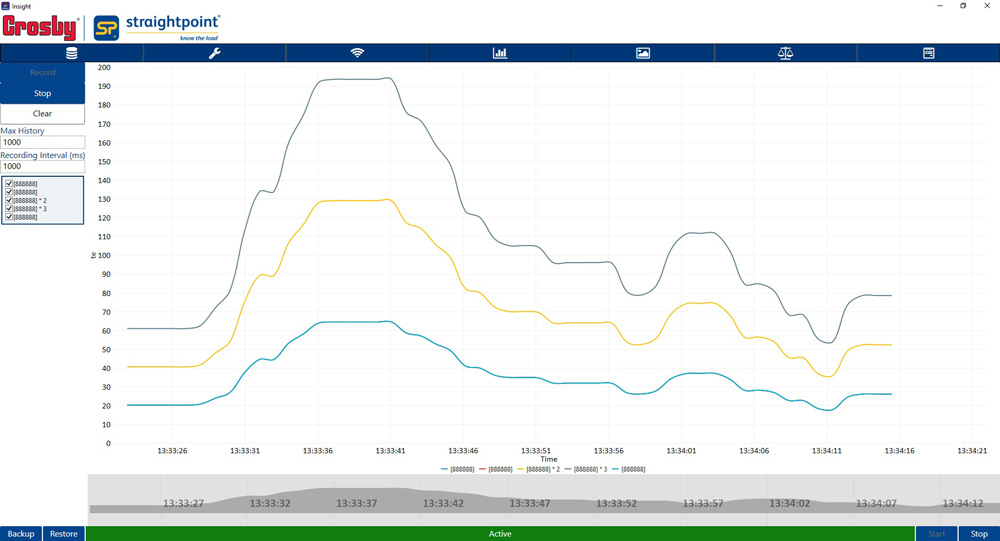

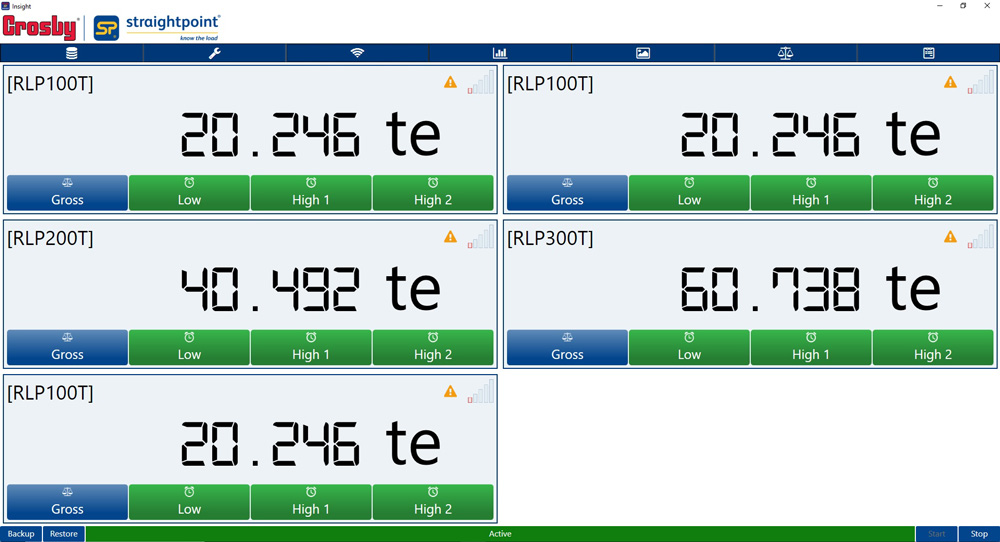

• Multi-channel display and data logging mode – view and log load data from connected load cells plus totals loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.

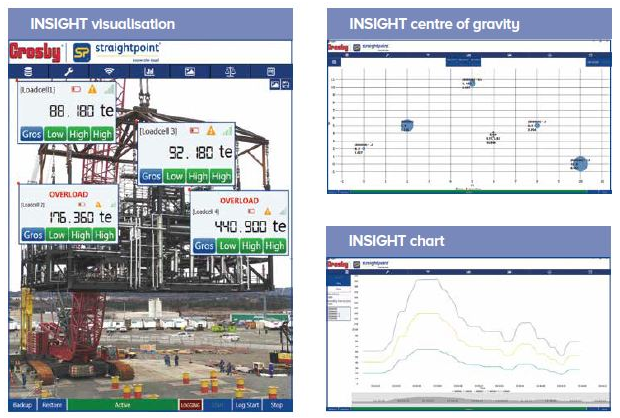

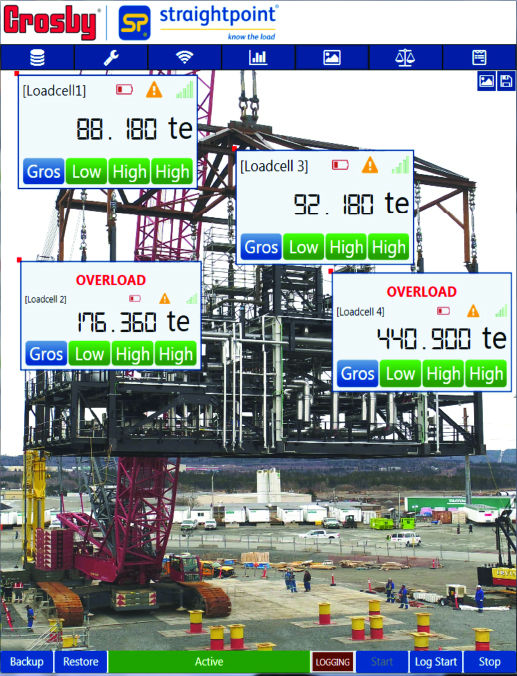

• Visualisation mode – For complicated lifts, import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.

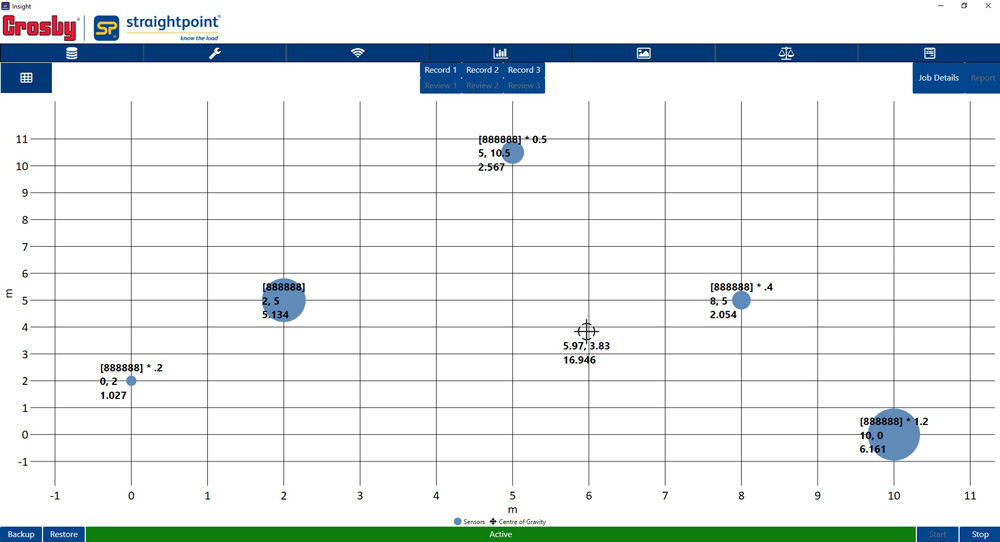

• Centre of gravity mode – Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the center of gravity of large items and structures.INSIGHT center of gravityINSIGHT chartINSIGHT visualization

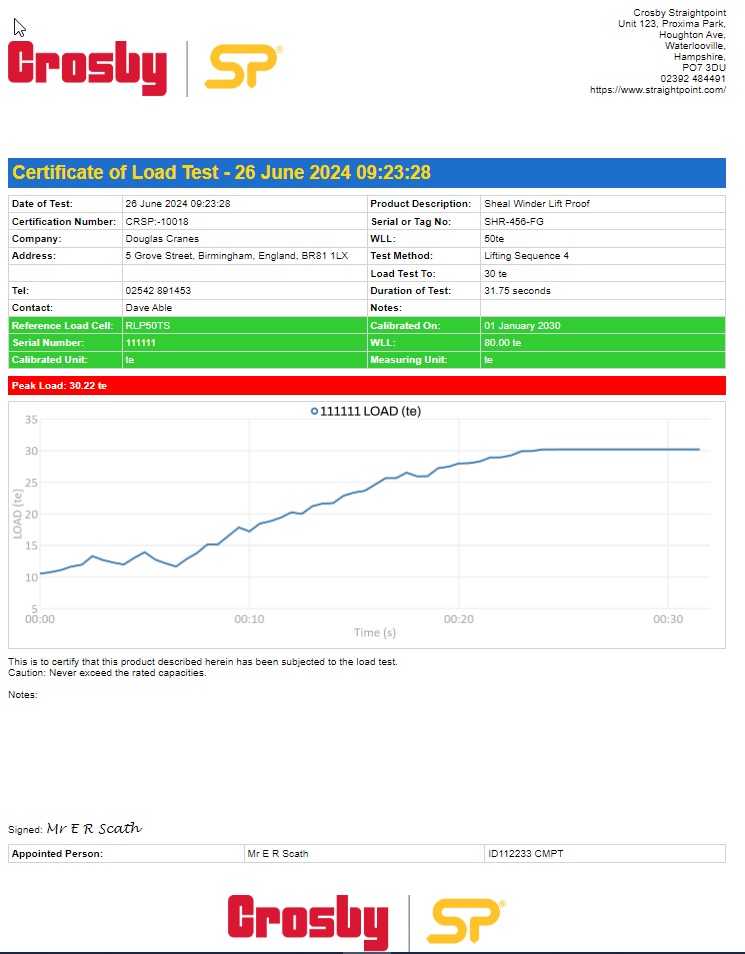

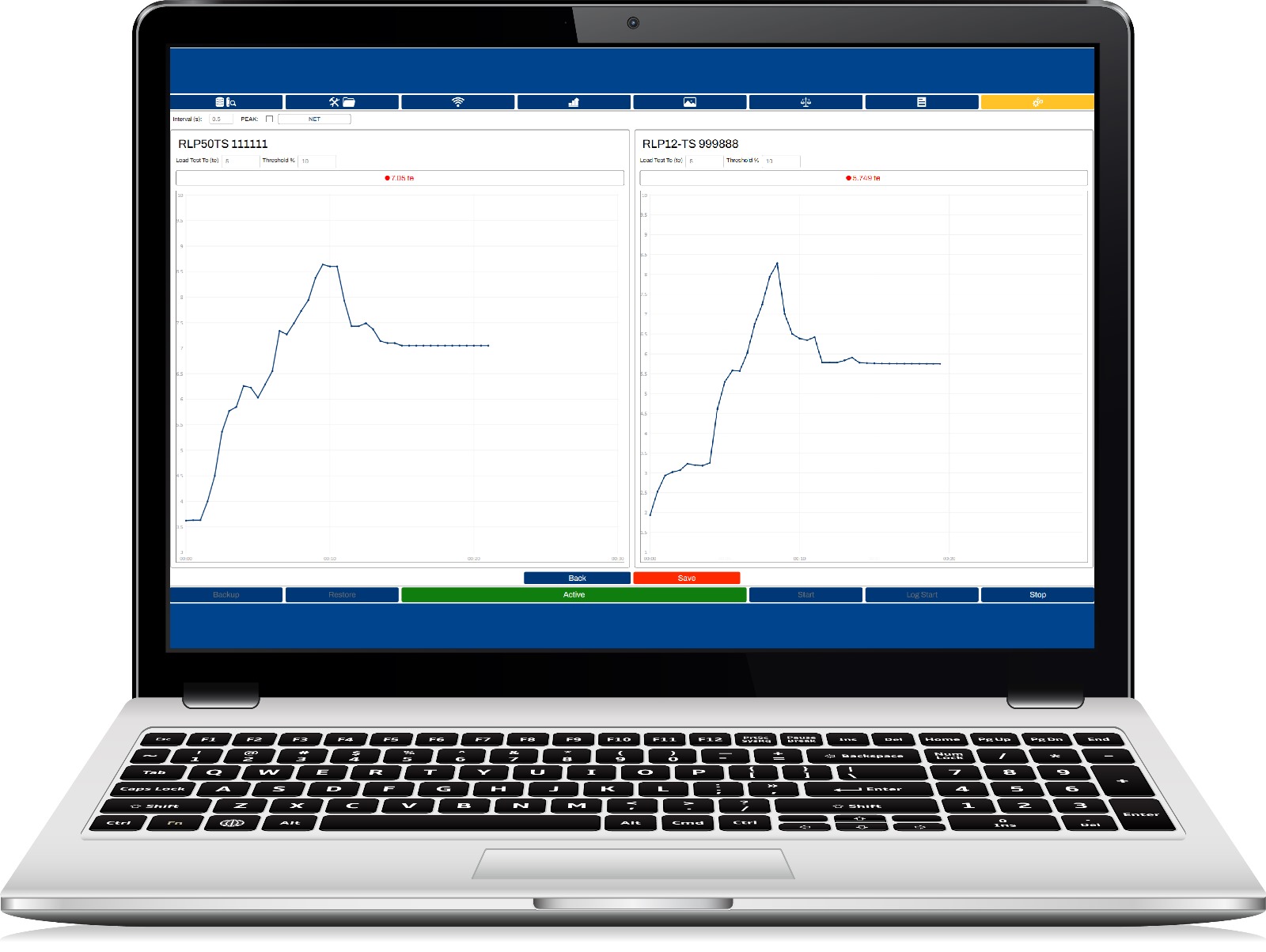

• Proof load testing - Real-time graphing of load test and auto-generated test certificates
- Connect up to 126 wireless load cells simultaneously
- Real-time load v time graph display
- Log data at speeds up to 200Hz (200 samples per second)
- Logging at timed intervals, manual or on overload/underload
- Visual and audible alarms indicate overload, underload, low battery and communications error
- 100% wireless, no easily damaged cables
- 700m or 2300ft range
- Three weighing’s per C of G report with averages and statistical analysis to ISO19901
- Plot load cell positioning using measurements or GPS co-ordinate
- Extra fields for operator, client, wind speed and temperature available for reporting
- Load cells may be split across several SW-D USB Wireless Receivers for large scale projects
| USB Dongle Operating Tem | -20°C to +70° / -4°F to 158°F |
| License | License Free |
| Frequency | 2.4 GHz |
| Range | 700 meters / 2300 ft |
| Load Cell Inputs | Up 126 |
| Operating System | Windows 7, 8 or 10 |
| Max Data Throughput | 4000 samples/sec 20 Loadcells at 200Hz each or max of 126 Loadcells at low sample rate |
