GP-15 General Purpose Grip

Click images to enlarge.
As of Feb 2014 the GP-15 is no longer available. We recommend the G1008 as a replacement, click for more info

Width: 15m / 0.59"
Max Sample Thickness: 4mm / 0.16"

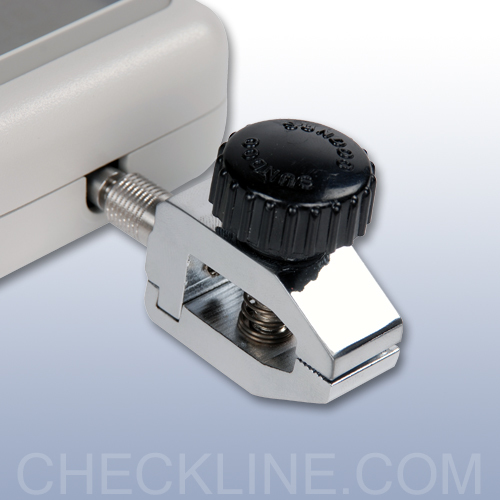

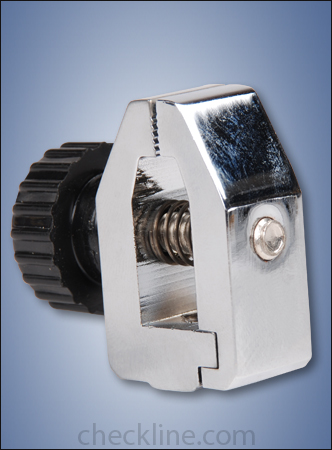

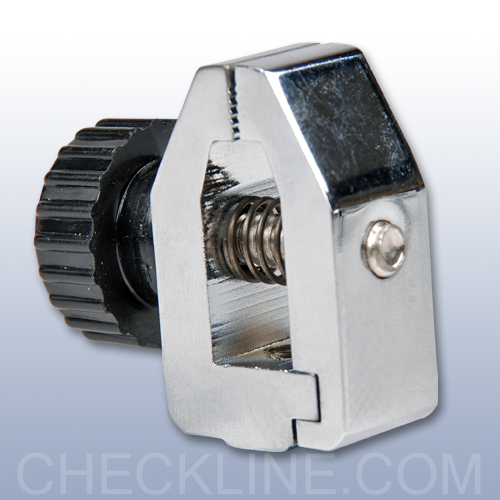

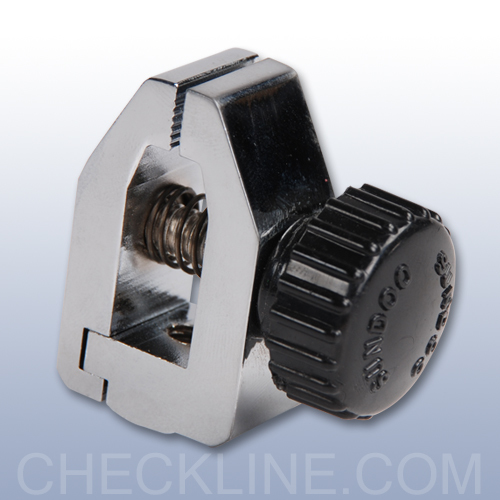

The GP-15 general purpose grip is designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 110 lb of force. Use them with a force gauge and a test stand to create a complete testing system

Features

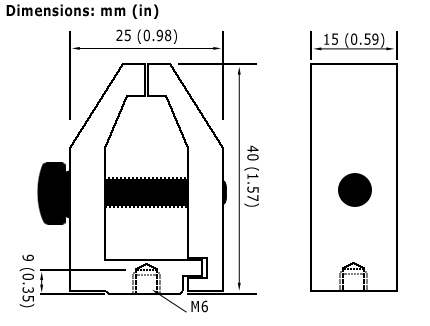

Dimensions

Specifications

Capacity110 lbs.
Width15m / 0.59"
Maximum Sample Thickness4mm / 0.16"
Thread SizeM6 Female
