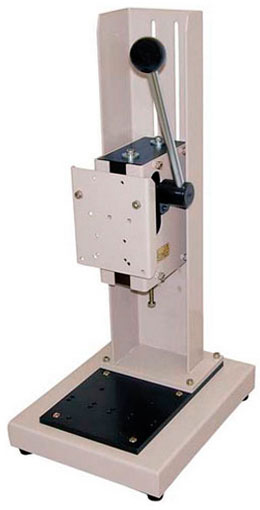

FGS-100L Manual Hand-lever Force Test Stand

Made in Japan
Click images to enlarge.
The FGS-100L manual test stand offer the ability to obtain accurate, consistent results without the high cost of a motorized system. Our hand-lever operated test stands are ideal for rapid testing applications.

The FGS-100L manual hand-lever test stand has a 200 lb. (100 kg) capacity and can ensure accurate, consistent test results with the addition of a digital or mechanical force gauge.

These stands are designed for precision, balance, and durability. Therefore they are perfectly suited for measuring a limitless range of materials such as, wire, spring, plastic, paper cord, tubing, glass and composites.

Features

  • Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments
  • Adjustable clearance setting enables testing on a wide range of samples
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results
  • Modular, compact design reduces footprint, weight and cost
  • Sturdy all steel construction allows exceptional durability and extended life of the product
  • Compatibility with many vendors' force gauges facilitates flexibility when replacing older test stands
  • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing
  • Force Gauge and accessories sold separately
  • 1-Year Warranty

Dimensions

Related Products

Click image for more info
FGE
DISCONTINUED - Replaced by the FGE-XY Hand-held Digital Force Gauge
- Display "real-time" or "peak" force
- Accuracy ± 0.2%
Click image for more info
Digital Force Gauge with USB Output
- 1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals
- Accuracy of ±0.2%
providing superb repeatability
fgs-50s test stand without force gauge mounted
Click image for more info
Manual Lever Test Stand
Click image for more info
Manual Hand Wheel Operated Test Stand

Specifications

Capacity200 lb (100 kg)
Stroke1.97" (50 mm)
Vertical Clearance3.31" - 11.57" (84 - 294 mm) 8 steps, 1.18"/step (30 mm/step)
Product Weight33 lb (15 kg)
Warranty1 Year

Downloads

Buy Now

Item Description Price
200 lb (100 kg) Capacity Lever Operated Force Test Stand
$795.00
Accessories
UNI-PLATE
Gauge mounting plate for FGS-100 Series Stands
$135.00
FGS-LENGTH-L
Digital Distance Gauge for FGS Test Stand
$395.00
