REPLACED BY ESM303
The ESM Motorized Force Measurement Test Stand is a versatile and precise testing solution for most compression and tensile testing applications up to 200 lb. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design.

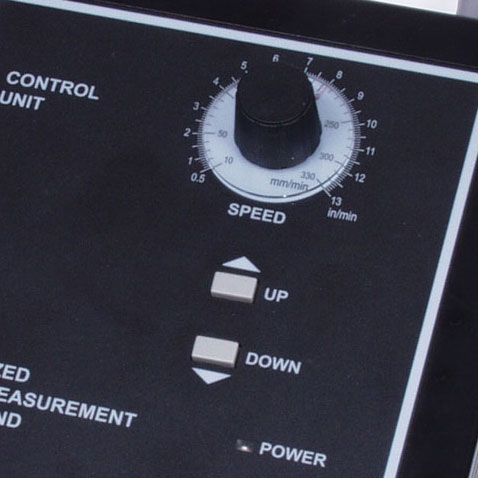

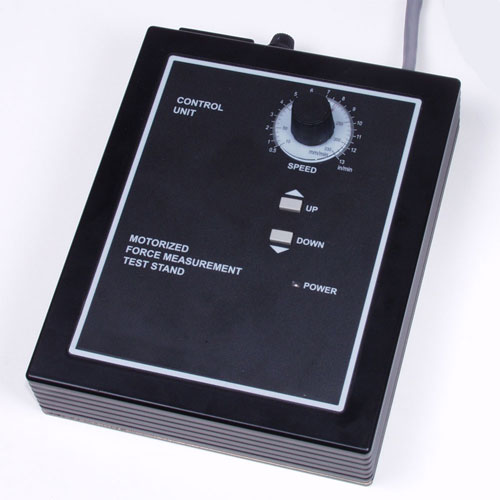

Speed is adjustable in up and down directions and a remote control unit provides added safety during testing. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing precise and repeatable.

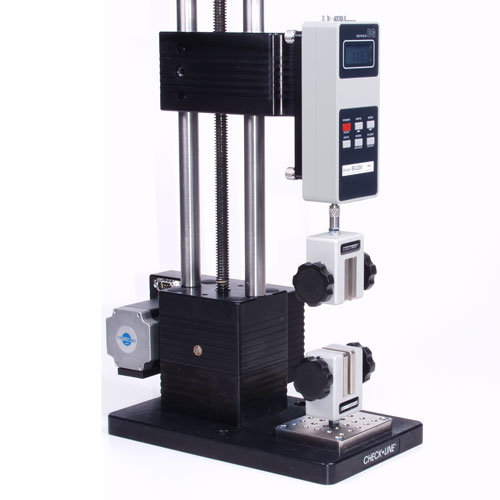

Use this test stand with force gauge and grips to create a complete testing solution.

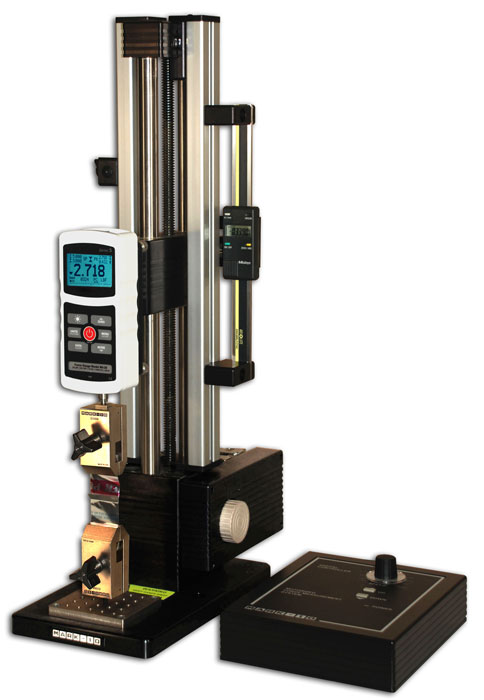

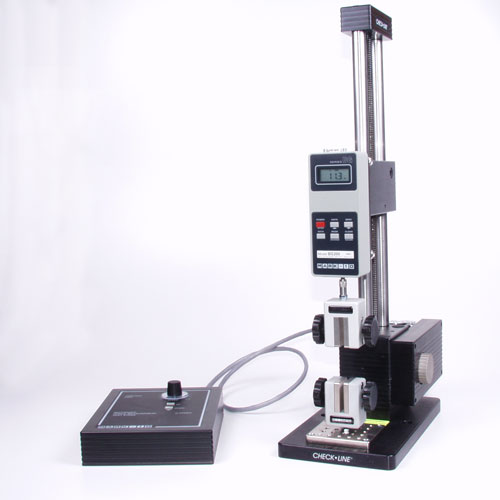

SHOWN WITH OPTIONAL FORCE GAUGE & DISTANCE METER
- Speed range: 0.5-13 in/min (13-330 mm/min). Custom speed ranges available, Inquire
- No speed variation with load
- Maximum travel: 13" (330 mm)
- Manual travel knob
- Mounting holes for bench mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
| Capacity | 200 lbs |
| Stroke | 13" (330 mm) |
| Travel Rate | 0.5-13 in/min (13-330 mm/min) |

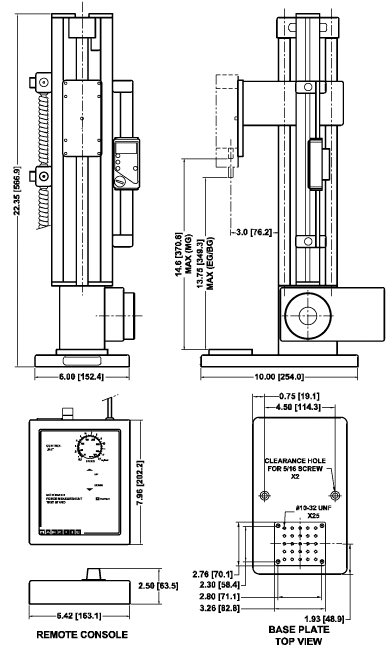

| Dimensions | Refer to Dimensions above |
| Compatible Gauges | BG and MG |
| Operating Temperature Range | 40 - 100°F, max. 96% humidity, non-condensating |
| Warranty | 3 years |
| Speed Accuracy | ±5% of setting, ±0% variation with load |
| *Note | Optional Distance Meter Max Sampling Rate Output - 3 Samples Per Second |
| Item | Description | Price | ||
|---|---|---|---|---|
ESM Motorized Test Stand REPLACED BY ESM303 | $ | |||
ESM Motorized Test Stand with digital speed controller ESM Motorized Test Stand REPLACED BY ESM303 | $ | |||
| Accessories | ||||
ESM001 | 6 Inch Digital travel display for ES30 / ESM | $890.00 | ||
ESM002 | Limit switch kit for ESM | $450.00 | ||
ESM003-1 | Column extension - 6in | $180.00 | ||
ESM004 | 12 Inch Digital travel display for ES30 / ESM | $1,725.00 | ||
Set Point Cable | $145.00 | |||
Overload protection module | $ | |||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
