3 Tension ranges from 400 - 5000 g to 5 - 20 kg

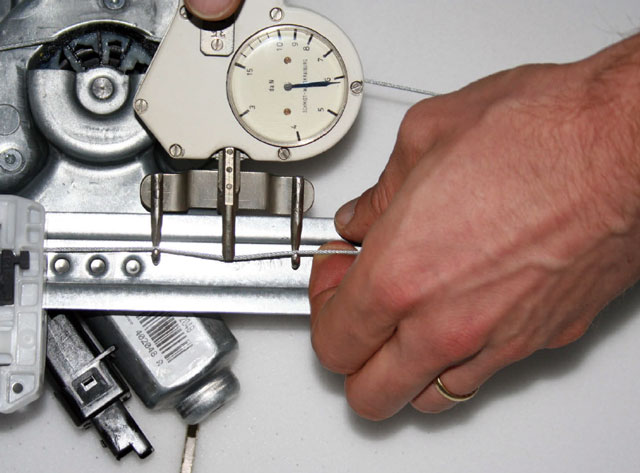

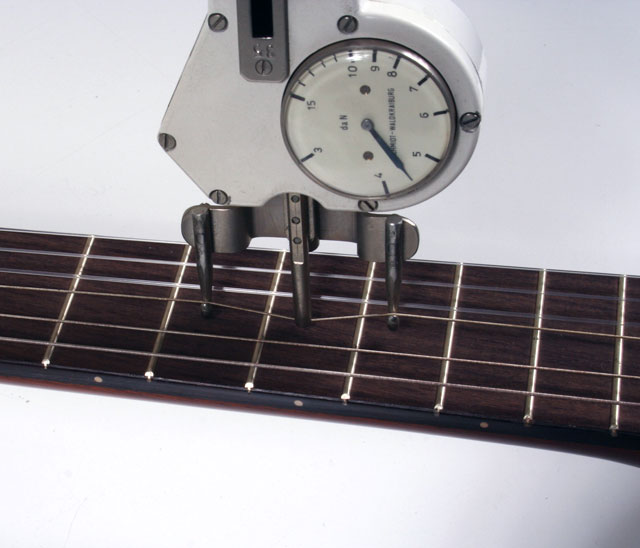

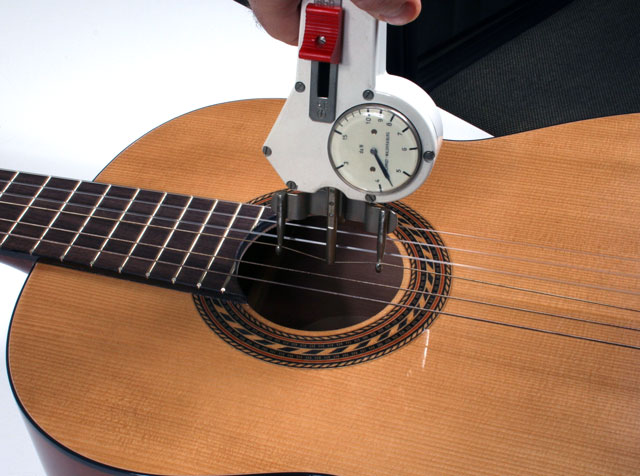

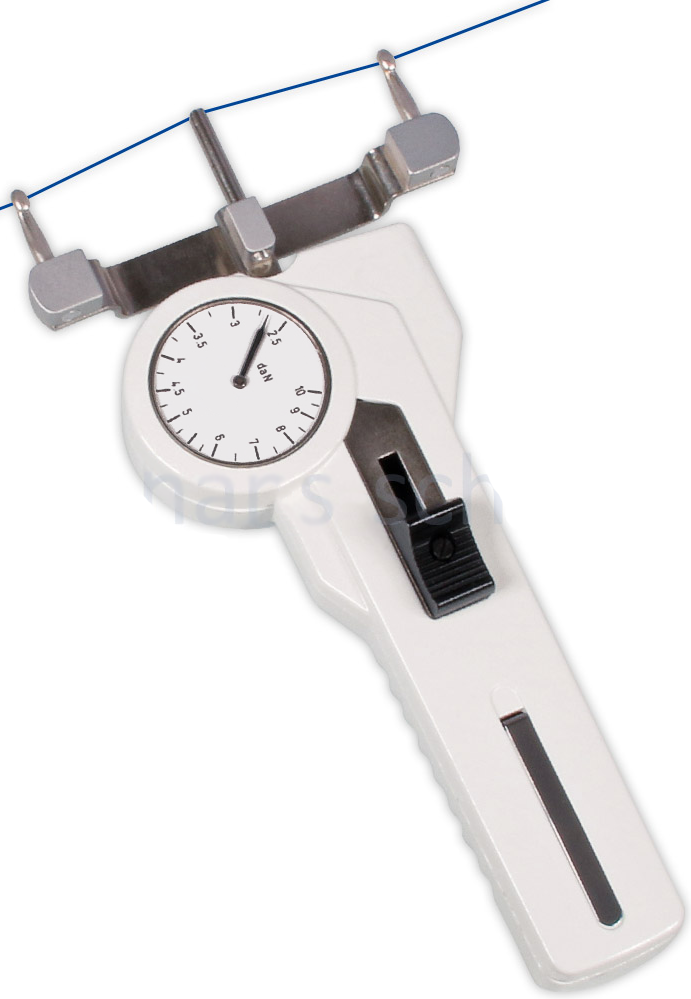

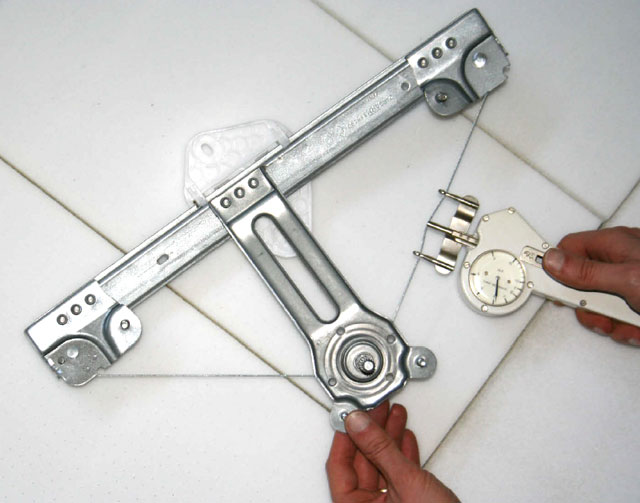

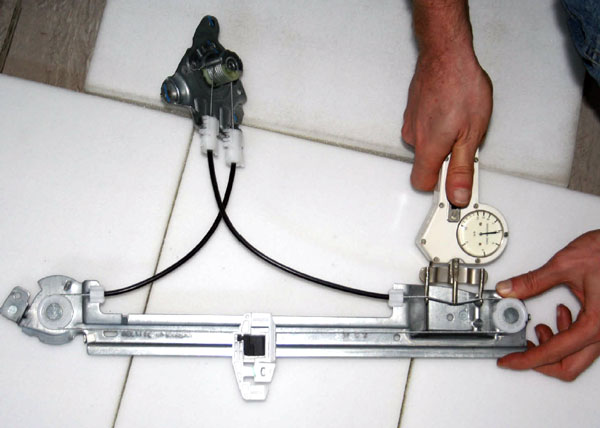

The DX2H tension meter is designed for closed force applications where access space is limited or where filaments lie close together. This hand-held unit is used to measure tension of fixed wires and filaments such as window regulators or guitar strings.
The DX2H uses hooks instead of guide rollers.
The DX2H tension meter is designed for closed force applications where access space is limited or where filaments lie close together. This hand-held unit is used to measure tension of fixed wires and filaments such as window regulators or guitar strings.
The DX2H uses hooks instead of guide rollers.
- For use in closed force systems
- Roller shifting mechanism ensure easy acquisition of the material
- Minimized bending of material
- Custom-built configurations and special calibration are available
- Special finger support located on the rear side reduces the effort to move the outer hooks
- Custom version is available with reduced Hook spacing for use with limited access space

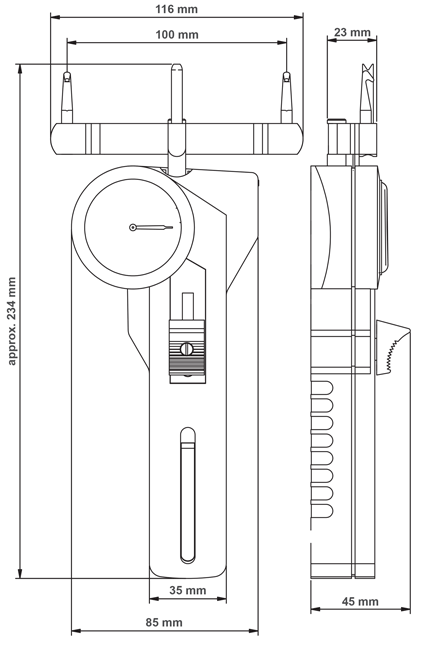

| Model | Range | Measuring Head Width | Calibration Material* |
|---|---|---|---|
| DX2H-5000 | 400 g - 5000 g | 116 mm | 0.8 mm dia Monofilament |
| DX2H-10K | 2.5 kg - 10 kg | 116 mm | 1.0 mm dia Monofilament |
| DX2H-20K-L | 5 kg - 20 kg | 116 mm | 1.5 mm dia Monofilament |
Other tension ranges and measuring head widths available on request.
*Calibration to customized material:
If process material differs significantly from the factory calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 15ft / 5m should be supplied.
Tension meter with carrying case, operating instructions, Certificate of compliance with the order 2.1 according EN 10204 free of charge
| Accuracy | ±5% full scale |
| Scale diameter | 41 mm |
| Temperature range | 10 - 45 °C |
| Air humidity | 85 % RH, max. |
| Housing material | Die-cast aluminium |
| Weight, net (gross) | DXH-5000 & DXH-10K approx. 470 g (1000 g) DXH-20K-L approx. 580 g (2000 g) |
